os.h File Reference

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <timer.h>

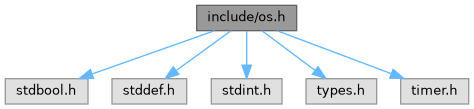

Include dependency graph for os.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	task_struct
struct	timer_struct

Macros
#define	TIMER_ALWAYS_RUN   0xFFFFFFFF

Typedefs
typedef struct task_struct	task_t
typedef struct timer_struct	timer_t

Functions
void	timer_create (timer_t *timer, void(*callback)(void *arg, uint32_t event), void *arg)
	Create a timer.
void	timer_start (timer_t *timer, uint32_t max_run_count, uint32_t interval)
	Start a timer.
void	timer_handle ()
	Timer processing function, needs to be called continuously in the main loop to achieve normal operation of the timer.

Macro Definition Documentation

TIMER_ALWAYS_RUN

#define TIMER_ALWAYS_RUN   0xFFFFFFFF

Typedef Documentation

task_t

typedef struct task_struct task_t

timer_t

typedef struct timer_struct timer_t

Function Documentation

timer_create()

void timer_create	(	timer_t *	timer,
		void(*)(void *arg, uint32_t event)	callback,
		void *	arg
	)

Create a timer.

Parameters

timer	A pointer to a timer_t object to save the newly created timer.
callback	A pointer to the function that will be called when the timer times out.
arg	A void pointer used to pass arguments to the callback function.

timer_handle()

void timer_handle

(

)

Timer processing function, needs to be called continuously in the main loop to achieve normal operation of the timer.

timer_start()

void timer_start	(	timer_t *	timer,
		uint32_t	max_run_count,
		uint32_t	interval
	)

Start a timer.

Parameters

timer	A pointer to an already created timer_t object.
max_run_count	The maximum number of times the timer will run. 0 means it will run indefinitely.
interval	The time interval of the timer.
