sys-i2c.h File Reference

#include <io.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <sys-clk.h>
#include <sys-gpio.h>

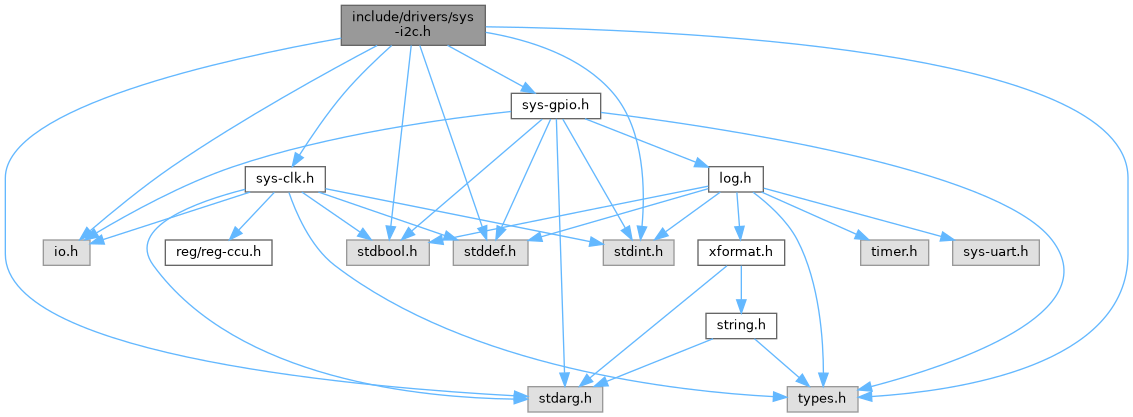

Include dependency graph for sys-i2c.h:

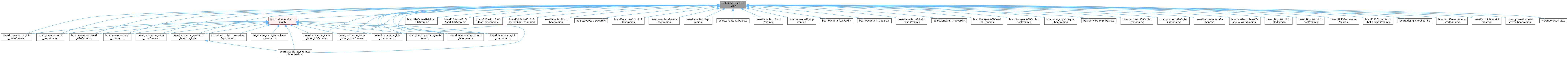

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sunxi_i2c_gpio_t
	Structure representing the GPIO configuration for I2C. More...
struct	sunxi_i2c_t
	Structure representing an I2C device configuration. More...
struct	sunxi_twi_reg
	Structure representing the registers of the Sunxi TWI (Two Wire Interface). More...

Macros
#define	TWI_XADDR_MASK   (0xff)
#define	TWI_DATA_MASK   (0xff)
#define	TWI_CTL_ACK   (0x1 << 2)
#define	TWI_CTL_INTFLG   (0x1 << 3)
#define	TWI_CTL_STP   (0x1 << 4) /* M_STP,Automatic clear 0 */
#define	TWI_CTL_STA   (0x1 << 5) /* M_STA,atutomatic clear 0 */
#define	TWI_CTL_BUSEN   (0x1 << 6)
#define	TWI_CTL_INTEN   (0x1 << 7) /* INT_EN */
#define	TWI_CLK_DUTY_30_EN   (0x1 << 8) /* 8bit */
#define	TWI_CLK_DUTY   (0x1 << 7) /* 7bit */
#define	TWI_CLK_DIV_M   (0xf << 3) /* 6:3bit */
#define	TWI_CLK_DIV_N   (0x7 << 0) /* 2:0bit */
#define	TWI_LCR_WMASK   (TWI_CTL_STA | TWI_CTL_STP | TWI_CTL_INTFLG)
#define	TWI_DEFAULT_CLK_RST_OFFSET(x)   (x + 16)
#define	TWI_DEFAULT_CLK_GATE_OFFSET(x)   (x)

Enumerations
enum	{ SUNXI_I2C_SPEED_100K = 100000 , SUNXI_I2C_SPEED_400K = 400000 }
	Enumeration of I2C speeds. More...
enum	{   SUNXI_I2C0 = 0 , SUNXI_I2C1 , SUNXI_I2C2 , SUNXI_I2C3 ,   SUNXI_I2C4 , SUNXI_I2C5 , SUNXI_R_I2C0 , SUNXI_R_I2C1 ,   SUNXI_I2C_BUS_MAX }
	Enumeration of I2C device IDs. More...

Functions
void	sunxi_i2c_init (sunxi_i2c_t *i2c_dev)
	Initialize I2C controller and bus.
int	sunxi_i2c_write (sunxi_i2c_t *i2c_dev, uint8_t addr, uint32_t reg, uint8_t data)
	sunxi_i2c write function
int	sunxi_i2c_read (sunxi_i2c_t *i2c_dev, uint8_t addr, uint32_t reg, uint8_t *data)
	sunxi_i2c read function

Macro Definition Documentation

TWI_CLK_DIV_M

#define TWI_CLK_DIV_M   (0xf << 3) /* 6:3bit */

TWI_CLK_DIV_N

#define TWI_CLK_DIV_N   (0x7 << 0) /* 2:0bit */

TWI_CLK_DUTY

#define TWI_CLK_DUTY   (0x1 << 7) /* 7bit */

TWI_CLK_DUTY_30_EN

#define TWI_CLK_DUTY_30_EN   (0x1 << 8) /* 8bit */

TWI_CTL_ACK

#define TWI_CTL_ACK   (0x1 << 2)

TWI_CTL_BUSEN

#define TWI_CTL_BUSEN   (0x1 << 6)

TWI_CTL_INTEN

#define TWI_CTL_INTEN   (0x1 << 7) /* INT_EN */

TWI_CTL_INTFLG

#define TWI_CTL_INTFLG   (0x1 << 3)

TWI_CTL_STA

#define TWI_CTL_STA   (0x1 << 5) /* M_STA,atutomatic clear 0 */

TWI_CTL_STP

#define TWI_CTL_STP   (0x1 << 4) /* M_STP,Automatic clear 0 */

TWI_DATA_MASK

#define TWI_DATA_MASK   (0xff)

TWI_DEFAULT_CLK_GATE_OFFSET

#define TWI_DEFAULT_CLK_GATE_OFFSET

(

x

)

(x)

TWI_DEFAULT_CLK_RST_OFFSET

#define TWI_DEFAULT_CLK_RST_OFFSET

(

x

)

(x + 16)

TWI_LCR_WMASK

#define TWI_LCR_WMASK   (TWI_CTL_STA | TWI_CTL_STP | TWI_CTL_INTFLG)

TWI_XADDR_MASK

#define TWI_XADDR_MASK   (0xff)

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumeration of I2C speeds.

This enumeration defines the supported I2C speeds for the device.

Enumerator
SUNXI_I2C_SPEED_100K	100 kHz I2C speed.
SUNXI_I2C_SPEED_400K	400 kHz I2C speed.

anonymous enum

anonymous enum

Enumeration of I2C device IDs.

This enumeration defines the IDs for available I2C devices on the Sunxi platform, including regular and reserved IDs.

Enumerator
SUNXI_I2C0	I2C device 0.
SUNXI_I2C1	I2C device 1.
SUNXI_I2C2	I2C device 2.
SUNXI_I2C3	I2C device 3.
SUNXI_I2C4	I2C device 4.
SUNXI_I2C5	I2C device 5.
SUNXI_R_I2C0	Reserved I2C device 0.
SUNXI_R_I2C1	Reserved I2C device 1.
SUNXI_I2C_BUS_MAX	Maximum number of I2C buses.

Function Documentation

sunxi_i2c_init()

void sunxi_i2c_init

(

sunxi_i2c_t *

i2c_dev

)

Initialize I2C controller and bus.

Initializes the I2C controller by configuring GPIO pins, enabling clocks, resetting the bus, setting clock frequency, and enabling the I2C controller.

Parameters

i2c_dev

Pointer to the I2C device structure containing configuration parameters

sunxi_i2c_read()

int sunxi_i2c_read	(	sunxi_i2c_t *	i2c_dev,
		uint8_t	addr,
		uint32_t	reg,
		uint8_t *	data
	)

sunxi_i2c read function

Parameters

i2c_dev	Pointer to the sunxi_i2c controller device structure
addr	Device address
reg	Register to be read from in the device
buffer	Buffer to store the read data

Returns

int Number of status

sunxi_i2c read function

Reads a single byte from a specified register on an I2C device.

Parameters

i2c_dev	Pointer to the I2C device structure
addr	I2C device address
reg	Register address to read from
data	Pointer to store the read byte

Returns

I2C_OK on success, I2C_NOK if I2C controller is not initialized

sunxi_i2c_write()

int sunxi_i2c_write	(	sunxi_i2c_t *	i2c_dev,
		uint8_t	addr,
		uint32_t	reg,
		uint8_t	data
	)

sunxi_i2c write function

Parameters

i2c_dev	Pointer to the sunxi_i2c controller device structure
addr	Device address
reg	Register to be read/written in the device
buffer	Data to be written/read

Returns

int Number of status

sunxi_i2c write function

Writes a single byte to a specified register on an I2C device.

Parameters

i2c_dev	Pointer to the I2C device structure
addr	I2C device address
reg	Register address to write to
data	Byte value to write

Returns

I2C_OK on success, I2C_NOK if I2C controller is not initialized
