#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <reg-ncat.h>
#include <io.h>

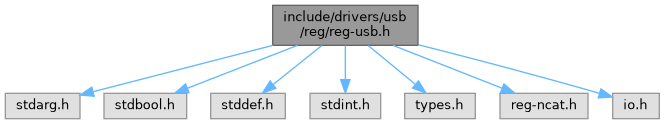

Include dependency graph for reg-usb.h:

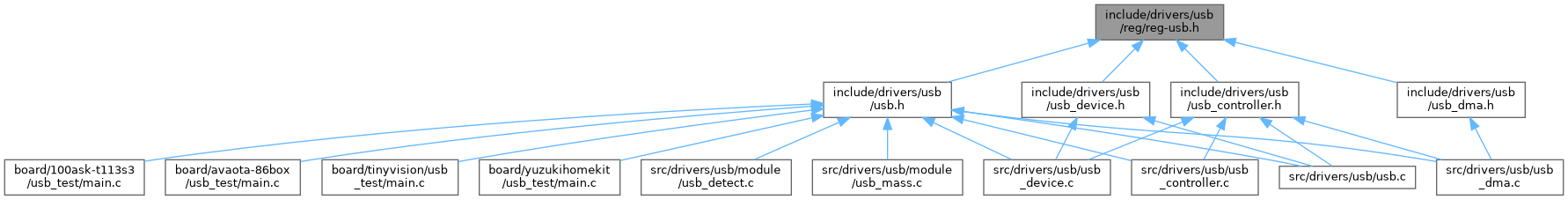

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	USB_PHY_SEL 0x0420

#define	USB_PHY_CTL 0x0410

#define	USBC_REG_o_FADDR 0x0098

#define	USBC_REG_o_PCTL 0x0040

#define	USBC_REG_o_INTTx 0x0044

#define	USBC_REG_o_INTRx 0x0046

#define	USBC_REG_o_INTTxE 0x0048

#define	USBC_REG_o_INTRxE 0x004A

#define	USBC_REG_o_INTUSB 0x004C

#define	USBC_REG_o_INTUSBE 0x0050

#define	USBC_REG_o_FRNUM 0x0054

#define	USBC_REG_o_EPIND 0x0042

#define	USBC_REG_o_TMCTL 0x007C

#define	USBC_REG_o_TXMAXP 0x0080

#define	USBC_REG_o_CSR0 0x0082

#define	USBC_REG_o_TXCSR 0x0082

#define	USBC_REG_o_RXMAXP 0x0084

#define	USBC_REG_o_RXCSR 0x0086

#define	USBC_REG_o_COUNT0 0x0088

#define	USBC_REG_o_RXCOUNT 0x0088

#define	USBC_REG_o_EP0TYPE 0x008C

#define	USBC_REG_o_TXTYPE 0x008C

#define	USBC_REG_o_NAKLIMIT0 0x008D

#define	USBC_REG_o_TXINTERVAL 0x008D

#define	USBC_REG_o_RXTYPE 0x008E

#define	USBC_REG_o_RXINTERVAL 0x008F

#define	USBC_REG_o_CONFIGDATA 0x00c0

#define	USBC_REG_o_EPFIFO0 0x0000

#define	USBC_REG_o_EPFIFO1 0x0004

#define	USBC_REG_o_EPFIFO2 0x0008

#define	USBC_REG_o_EPFIFO3 0x000C

#define	USBC_REG_o_EPFIFO4 0x0010

#define	USBC_REG_o_EPFIFO5 0x0014

#define	USBC_REG_o_EPFIFOx(n) (0x0000 + (n << 2))

#define	USBC_REG_o_DEVCTL 0x0041

#define	USBC_REG_o_TXFIFOSZ 0x0090

#define	USBC_REG_o_RXFIFOSZ 0x0094

#define	USBC_REG_o_TXFIFOAD 0x0092

#define	USBC_REG_o_RXFIFOAD 0x0096

#define	USBC_REG_o_VEND0 0x0043

#define	USBC_REG_o_VEND1 0x007D

#define	USBC_REG_o_VEND3 0x007E

#define	USBC_REG_o_EPINFO 0x0078

#define	USBC_REG_o_RAMINFO 0x0079

#define	USBC_REG_o_LINKINFO 0x007A

#define	USBC_REG_o_VPLEN 0x007B

#define	USBC_REG_o_HSEOF 0x007C

#define	USBC_REG_o_FSEOF 0x007D

#define	USBC_REG_o_LSEOF 0x007E

#define	USBC_REG_o_FADDR0 0x0098

#define	USBC_REG_o_HADDR0 0x009A

#define	USBC_REG_o_HPORT0 0x009B

#define	USBC_REG_o_TXFADDRx 0x0098

#define	USBC_REG_o_TXHADDRx 0x009A

#define	USBC_REG_o_TXHPORTx 0x009B

#define	USBC_REG_o_RXFADDRx 0x009C

#define	USBC_REG_o_RXHADDRx 0x009E

#define	USBC_REG_o_RXHPORTx 0x009F

#define	USBC_REG_o_RPCOUNT 0x008A

#define	USBC_REG_o_ISCR 0x0400

#define	USBC_REG_o_PHYBIST 0x0408

#define	USBC_REG_o_PHYTUNE 0x040c

#define	USBC_REG_o_PHYCTL 0x0410

#define	USBC_REG_o_SEL 0x420

#define	USBC_REG_o_DMA_ENABLE 0x0500

#define	USBC_REG_o_DMA_STATUS 0x0504

#define	USBC_REG_o_DMA_CONFIG 0x0540

#define	USBC_REG_o_DMA_ADDR 0x0544

#define	USBC_REG_o_DMA_SIZE 0x0548

#define	USBC_REG_o_DMA_RESU 0x0548

#define	USBC_REG_FADDR(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_FADDR)

#define	USBC_REG_PCTL(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_PCTL)

#define	USBC_REG_INTTx(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_INTTx)

#define	USBC_REG_INTRx(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_INTRx)

#define	USBC_REG_INTTxE(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_INTTxE)

#define	USBC_REG_INTRxE(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_INTRxE)

#define	USBC_REG_INTUSB(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_INTUSB)

#define	USBC_REG_INTUSBE(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_INTUSBE)

#define	USBC_REG_FRNUM(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_FRNUM)

#define	USBC_REG_EPIND(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_EPIND)

#define	USBC_REG_TMCTL(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_TMCTL)

#define	USBC_REG_TXMAXP(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_TXMAXP)

#define	USBC_REG_CSR0(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_CSR0)

#define	USBC_REG_TXCSR(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_TXCSR)

#define	USBC_REG_RXMAXP(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_RXMAXP)

#define	USBC_REG_RXCSR(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_RXCSR)

#define	USBC_REG_COUNT0(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_COUNT0)

#define	USBC_REG_RXCOUNT(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_RXCOUNT)

#define	USBC_REG_EP0TYPE(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_EP0TYPE)

#define	USBC_REG_TXTYPE(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_TXTYPE)

#define	USBC_REG_NAKLIMIT0(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_NAKLIMIT0)

#define	USBC_REG_TXINTERVAL(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_TXINTERVAL)

#define	USBC_REG_RXTYPE(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_RXTYPE)

#define	USBC_REG_RXINTERVAL(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_RXINTERVAL)

#define	USBC_REG_CONFIGDATA(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_CONFIGDATA)

#define	USBC_REG_EPFIFO0(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_EPFIFO0)

#define	USBC_REG_EPFIFO1(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_EPFIFO1)

#define	USBC_REG_EPFIFO2(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_EPFIFO2)

#define	USBC_REG_EPFIFO3(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_EPFIFO3)

#define	USBC_REG_EPFIFO4(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_EPFIFO4)

#define	USBC_REG_EPFIFO5(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_EPFIFO5)

#define	USBC_REG_EPFIFOx(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_EPFIFOx(n))

#define	USBC_REG_DEVCTL(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_DEVCTL)

#define	USBC_REG_TXFIFOSZ(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_TXFIFOSZ)

#define	USBC_REG_RXFIFOSZ(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_RXFIFOSZ)

#define	USBC_REG_TXFIFOAD(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_TXFIFOAD)

#define	USBC_REG_RXFIFOAD(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_RXFIFOAD)

#define	USBC_REG_VEND0(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_VEND0)

#define	USBC_REG_VEND1(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_VEND1)

#define	USBC_REG_EPINFO(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_EPINFO)

#define	USBC_REG_RAMINFO(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_RAMINFO)

#define	USBC_REG_LINKINFO(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_LINKINFO)

#define	USBC_REG_VPLEN(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_VPLEN)

#define	USBC_REG_HSEOF(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_HSEOF)

#define	USBC_REG_FSEOF(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_FSEOF)

#define	USBC_REG_LSEOF(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_LSEOF)

#define	USBC_REG_FADDR0(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_FADDR0)

#define	USBC_REG_HADDR0(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_HADDR0)

#define	USBC_REG_HPORT0(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_HPORT0)

#define	USBC_REG_TXFADDRx(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_TXFADDRx)

#define	USBC_REG_TXHADDRx(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_TXHADDRx)

#define	USBC_REG_TXHPORTx(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_TXHPORTx)

#define	USBC_REG_RXFADDRx(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_RXFADDRx)

#define	USBC_REG_RXHADDRx(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_RXHADDRx)

#define	USBC_REG_RXHPORTx(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_RXHPORTx)

#define	USBC_REG_RPCOUNTx(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_RPCOUNT)

#define	USBC_REG_ISCR(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_ISCR)

#define	USBC_REG_PHYCTL(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_PHYCTL)

#define	USBC_REG_PHYBIST(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_PHYBIST)

#define	USBC_REG_PHYTUNE(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_PHYTUNE)

#define	USBC_REG_RXFADDRx_Ex(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_RXFADDRx)

#define	USBC_REG_o_DMA_INTE 0x0500

#define	USBC_REG_o_DMA_INTS 0x0504

#define	USBC_REG_o_DMA_CHAN_CFN(n) (0x0540 + (0x10 * n))

#define	USBC_REG_o_DMA_SDRAM_ADD(n) (0x0544 + (0x10 * n))

#define	USBC_REG_o_DMA_BC(n) (0x0548 + (0x10 * n))

#define	USBC_REG_o_DMA_RESIDUAL_BC(n) (0x0548 + (0x10 * n))

#define	USBC_REG_DMA_INTE(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_DMA_INTE)

#define	USBC_REG_DMA_INTS(usbc_base_addr) ((usbc_base_addr) + USBC_REG_o_DMA_INTS)

#define	USBC_REG_DMA_CHAN_CFN(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_DMA_CHAN_CFN(n))

#define	USBC_REG_DMA_SDRAM_ADD(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_DMA_SDRAM_ADD(n))

#define	USBC_REG_DMA_BC(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_DMA_BC(n))

#define	USBC_REG_DMA_RESIDUAL_BC(usbc_base_addr, n) ((usbc_base_addr) + USBC_REG_o_DMA_RESIDUAL_BC(n))

#define	USBC_REG_EX_USB_EPFIFOn(usbc_base_addr) ((usbc_base_addr) + (0x00 + (n << 2)))

#define	USBC_REG_EX_USB_GCS(usbc_base_addr) ((usbc_base_addr) + 0x0040)

#define	USBC_REG_EX_USB_EPINTF(usbc_base_addr) ((usbc_base_addr) + 0x0044)

#define	USBC_REG_EX_USB_EPINTE(usbc_base_addr) ((usbc_base_addr) + 0x0048)

#define	USBC_REG_EX_USB_BUSINTF(usbc_base_addr) ((usbc_base_addr) + 0x004C)

#define	USBC_REG_EX_USB_BUSINTE(usbc_base_addr) ((usbc_base_addr) + 0x0050)

#define	USBC_REG_EX_USB_FNUM(usbc_base_addr) ((usbc_base_addr) + 0x0054)

#define	USBC_REG_EX_USB_TESTC(usbc_base_addr) ((usbc_base_addr) + 0x007C)

#define	USBC_REG_EX_USB_CSR0(usbc_base_addr) ((usbc_base_addr) + 0x0080)

#define	USBC_REG_EX_USB_TXCSR(usbc_base_addr) ((usbc_base_addr) + 0x0080)

#define	USBC_REG_EX_USB_RXCSR(usbc_base_addr) ((usbc_base_addr) + 0x0084)

#define	USBC_REG_EX_USB_COUNT0(usbc_base_addr) ((usbc_base_addr) + 0x0088)

#define	USBC_REG_EX_USB_RXCOUNT(usbc_base_addr) ((usbc_base_addr) + 0x0088)

#define	USBC_REG_EX_USB_ATTR0(usbc_base_addr) ((usbc_base_addr) + 0x008C)

#define	USBC_REG_EX_USB_EPATTR(usbc_base_addr) ((usbc_base_addr) + 0x008C)

#define	USBC_REG_EX_USB_TXFIFO(usbc_base_addr) ((usbc_base_addr) + 0x0090)

#define	USBC_REG_EX_USB_RXFIFO(usbc_base_addr) ((usbc_base_addr) + 0x0094)

#define	USBC_REG_EX_USB_FADDR(usbc_base_addr) ((usbc_base_addr) + 0x0098)

#define	USBC_REG_EX_USB_TXFADDR(usbc_base_addr) ((usbc_base_addr) + 0x0098)

#define	USBC_REG_EX_USB_RXFADDR(usbc_base_addr) ((usbc_base_addr) + 0x009C)

#define	USBC_REG_EX_USB_CONFIGINFO(usbc_base_addr) ((usbc_base_addr) + 0x00C0)

#define	USBC_REG_EX_USB_LINKTIM(usbc_base_addr) ((usbc_base_addr) + 0x00C4)

#define	USBC_REG_EX_USB_OTGTIM(usbc_base_addr) ((usbc_base_addr) + 0x00C8)

#define	USBC_REG_EX_USB_ISCR(usbc_base_addr) ((usbc_base_addr) + 0x0400)

#define	USBC_REG_EX_USB_PHYCTL(usbc_base_addr) ((usbc_base_addr) + 0x0404)

#define	USBC_REG_EX_USB_PHYBIST(usbc_base_addr) ((usbc_base_addr) + 0x0408)

#define	USBC_BP_POWER_H_HIGH_SPEED_EN 5

#define	USBC_BP_POWER_H_HIGH_SPEED_FLAG 4

#define	USBC_BP_POWER_H_RESET 3

#define	USBC_BP_POWER_H_RESUME 2

#define	USBC_BP_POWER_H_SUSPEND 1

#define	USBC_BP_POWER_H_SUEPEND_EN 0

#define	USBC_BP_POWER_D_ISO_UPDATE_EN 7

#define	USBC_BP_POWER_D_SOFT_CONNECT 6

#define	USBC_BP_POWER_D_HIGH_SPEED_EN 5

#define	USBC_BP_POWER_D_HIGH_SPEED_FLAG 4

#define	USBC_BP_POWER_D_RESET_FLAG 3

#define	USBC_BP_POWER_D_RESUME 2

#define	USBC_BP_POWER_D_SUSPEND 1

#define	USBC_BP_POWER_D_ENABLE_SUSPENDM 0

#define	USBC_BP_INTTx_FLAG_EP5 5

#define	USBC_BP_INTTx_FLAG_EP4 4

#define	USBC_BP_INTTx_FLAG_EP3 3

#define	USBC_BP_INTTx_FLAG_EP2 2

#define	USBC_BP_INTTx_FLAG_EP1 1

#define	USBC_BP_INTTx_FLAG_EP0 0

#define	USBC_BP_INTRx_FLAG_EP5 5

#define	USBC_BP_INTRx_FLAG_EP4 4

#define	USBC_BP_INTRx_FLAG_EP3 3

#define	USBC_BP_INTRx_FLAG_EP2 2

#define	USBC_BP_INTRx_FLAG_EP1 1

#define	USBC_BP_INTTxE_EN_EP5 5

#define	USBC_BP_INTTxE_EN_EP4 4

#define	USBC_BP_INTTxE_EN_EP3 3

#define	USBC_BP_INTTxE_EN_EP2 2

#define	USBC_BP_INTTxE_EN_EP1 1

#define	USBC_BP_INTTxE_EN_EP0 0

#define	USBC_BP_INTRxE_EN_EP5 5

#define	USBC_BP_INTRxE_EN_EP4 4

#define	USBC_BP_INTRxE_EN_EP3 3

#define	USBC_BP_INTRxE_EN_EP2 2

#define	USBC_BP_INTRxE_EN_EP1 1

#define	USBC_BP_INTUSB_VBUS_ERROR 7

#define	USBC_BP_INTUSB_SESSION_REQ 6

#define	USBC_BP_INTUSB_DISCONNECT 5

#define	USBC_BP_INTUSB_CONNECT 4

#define	USBC_BP_INTUSB_SOF 3

#define	USBC_BP_INTUSB_RESET 2

#define	USBC_BP_INTUSB_RESUME 1

#define	USBC_BP_INTUSB_SUSPEND 0

#define	USBC_BP_INTUSBE_EN_VBUS_ERROR 7

#define	USBC_BP_INTUSBE_EN_SESSION_REQ 6

#define	USBC_BP_INTUSBE_EN_DISCONNECT 5

#define	USBC_BP_INTUSBE_EN_CONNECT 4

#define	USBC_BP_INTUSBE_EN_SOF 3

#define	USBC_BP_INTUSBE_EN_RESET 2

#define	USBC_BP_INTUSBE_EN_RESUME 1

#define	USBC_BP_INTUSBE_EN_SUSPEND 0

#define	USBC_BP_TMCTL_FORCE_HOST 7

#define	USBC_BP_TMCTL_FIFO_ACCESS 6

#define	USBC_BP_TMCTL_FORCE_FS 5

#define	USBC_BP_TMCTL_FORCE_HS 4

#define	USBC_BP_TMCTL_TEST_PACKET 3

#define	USBC_BP_TMCTL_TEST_K 2

#define	USBC_BP_TMCTL_TEST_J 1

#define	USBC_BP_TMCTL_TEST_SE0_NAK 0

#define	USBC_BP_TXMAXP_PACKET_COUNT 11

#define	USBC_BP_TXMAXP_MAXIMUM_PAYLOAD 0

#define	USBC_BP_CSR0_H_DisPing 11

#define	USBC_BP_CSR0_H_FlushFIFO 8

#define	USBC_BP_CSR0_H_NAK_Timeout 7

#define	USBC_BP_CSR0_H_StatusPkt 6

#define	USBC_BP_CSR0_H_ReqPkt 5

#define	USBC_BP_CSR0_H_Error 4

#define	USBC_BP_CSR0_H_SetupPkt 3

#define	USBC_BP_CSR0_H_RxStall 2

#define	USBC_BP_CSR0_H_TxPkRdy 1

#define	USBC_BP_CSR0_H_RxPkRdy 0

#define	USBC_BP_CSR0_D_FLUSH_FIFO 8

#define	USBC_BP_CSR0_D_SERVICED_SETUP_END 7

#define	USBC_BP_CSR0_D_SERVICED_RX_PKT_READY 6

#define	USBC_BP_CSR0_D_SEND_STALL 5

#define	USBC_BP_CSR0_D_SETUP_END 4

#define	USBC_BP_CSR0_D_DATA_END 3

#define	USBC_BP_CSR0_D_SENT_STALL 2

#define	USBC_BP_CSR0_D_TX_PKT_READY 1

#define	USBC_BP_CSR0_D_RX_PKT_READY 0

#define	USBC_BP_TXCSR_H_AUTOSET 15

#define	USBC_BP_TXCSR_H_RESERVED 14

#define	USBC_BP_TXCSR_H_MODE 13

#define	USBC_BP_TXCSR_H_DMA_REQ_EN 12

#define	USBC_BP_TXCSR_H_FORCE_DATA_TOGGLE 11

#define	USBC_BP_TXCSR_H_DMA_REQ_MODE 10

#define	USBC_BP_TXCSR_H_DATA_TOGGLE_WR_EN 9

#define	USBC_BP_TXCSR_H_DATA_TOGGLE 8

#define	USBC_BP_TXCSR_H_NAK_TIMEOUT 7

#define	USBC_BP_TXCSR_H_CLEAR_DATA_TOGGLE 6

#define	USBC_BP_TXCSR_H_TX_STALL 5

#define	USBC_BP_TXCSR_H_FLUSH_FIFO 3

#define	USBC_BP_TXCSR_H_ERROR 2

#define	USBC_BP_TXCSR_H_FIFO_NOT_EMPTY 1

#define	USBC_BP_TXCSR_H_TX_READY 0

#define	USBC_TXCSR_H_WZC_BITS ((1 << USBC_BP_TXCSR_H_NAK_TIMEOUT) \| (1 << USBC_BP_TXCSR_H_TX_STALL) \| (1 << USBC_BP_TXCSR_H_ERROR) \| (1 << USBC_BP_TXCSR_H_FIFO_NOT_EMPTY))

#define	USBC_BP_TXCSR_D_AUTOSET 15

#define	USBC_BP_TXCSR_D_ISO 14

#define	USBC_BP_TXCSR_D_MODE 13

#define	USBC_BP_TXCSR_D_DMA_REQ_EN 12

#define	USBC_BP_TXCSR_D_FORCE_DATA_TOGGLE 11

#define	USBC_BP_TXCSR_D_DMA_REQ_MODE 10

#define	USBC_BP_TXCSR_D_INCOMPLETE 7

#define	USBC_BP_TXCSR_D_CLEAR_DATA_TOGGLE 6

#define	USBC_BP_TXCSR_D_SENT_STALL 5

#define	USBC_BP_TXCSR_D_SEND_STALL 4

#define	USBC_BP_TXCSR_D_FLUSH_FIFO 3

#define	USBC_BP_TXCSR_D_UNDER_RUN 2

#define	USBC_BP_TXCSR_D_FIFO_NOT_EMPTY 1

#define	USBC_BP_TXCSR_D_TX_READY 0

#define	USBC_BP_RXMAXP_PACKET_COUNT 11

#define	USBC_BP_RXMAXP_MAXIMUM_PAYLOAD 0

#define	USBC_BP_RXCSR_H_AUTO_CLEAR 15

#define	USBC_BP_RXCSR_H_AUTO_REQ 14

#define	USBC_BP_RXCSR_H_DMA_REQ_EN 13

#define	USBC_BP_RXCSR_H_DISNYET 12 /* dis nyet */

#define	USBC_BP_RXCSR_H_PID_ERROR 12 /* pid error */

#define	USBC_BP_RXCSR_H_DMA_REQ_MODE 11

#define	USBC_BP_RXCSR_H_DATA_TOGGLE_WR_EN 10

#define	USBC_BP_RXCSR_H_DATA_TOGGLE 9

#define	USBC_BP_RXCSR_H_INCOMPLETE 8

#define	USBC_BP_RXCSR_H_CLEAR_DATA_TOGGLE 7

#define	USBC_BP_RXCSR_H_RX_STALL 6

#define	USBC_BP_RXCSR_H_REQ_PACKET 5

#define	USBC_BP_RXCSR_H_FLUSH_FIFO 4

#define	USBC_BP_RXCSR_H_DATA_ERR 3 /* iso */

#define	USBC_BP_RXCSR_H_NAK_TIMEOUT 3 /* bulk */

#define	USBC_BP_RXCSR_H_ERROR 2

#define	USBC_BP_RXCSR_H_FIFO_FULL 1

#define	USBC_BP_RXCSR_H_RX_PKT_READY 0

#define	USBC_RXCSR_H_WZC_BITS ((1 << USBC_BP_RXCSR_H_RX_STALL) \| (1 << USBC_BP_RXCSR_H_ERROR) \| (1 << USBC_BP_RXCSR_H_DATA_ERR) \| (1 << USBC_BP_RXCSR_H_RX_PKT_READY))

#define	USBC_BP_RXCSR_D_AUTO_CLEAR 15

#define	USBC_BP_RXCSR_D_ISO 14

#define	USBC_BP_RXCSR_D_DMA_REQ_EN 13

#define	USBC_BP_RXCSR_D_DISABLE_NYET 12

#define	USBC_BP_RXCSR_D_DMA_REQ_MODE 11

#define	USBC_BP_RXCSR_D_INCOMPLETE 8

#define	USBC_BP_RXCSR_D_CLEAR_DATA_TOGGLE 7

#define	USBC_BP_RXCSR_D_SENT_STALL 6

#define	USBC_BP_RXCSR_D_SEND_STALL 5

#define	USBC_BP_RXCSR_D_FLUSH_FIFO 4

#define	USBC_BP_RXCSR_D_DATA_ERROR 3

#define	USBC_BP_RXCSR_D_OVERRUN 2

#define	USBC_BP_RXCSR_D_FIFO_FULL 1

#define	USBC_BP_RXCSR_D_RX_PKT_READY 0

#define	USBC_BP_TXTYPE_SPEED 6 /new/

#define	USBC_BP_TXTYPE_PROROCOL 4

#define	USBC_BP_TXTYPE_TARGET_EP_NUM 0

#define	USBC_BP_RXTYPE_SPEED 6 /new/

#define	USBC_BP_RXTYPE_PROROCOL 4

#define	USBC_BP_RXTYPE_TARGET_EP_NUM 0

#define	USBC_BP_CONFIGDATA_MPRXE 7

#define	USBC_BP_CONFIGDATA_MPTXE 6

#define	USBC_BP_CONFIGDATA_BIGENDIAN 5

#define	USBC_BP_CONFIGDATA_HBRXE 4

#define	USBC_BP_CONFIGDATA_HBTXE 3

#define	USBC_BP_CONFIGDATA_DYNFIFO_SIZING 2

#define	USBC_BP_CONFIGDATA_SOFTCONE 1

#define	USBC_BP_CONFIGDATA_UTMI_DATAWIDTH 0

#define	USBC_BP_DEVCTL_B_DEVICE 7

#define	USBC_BP_DEVCTL_FS_DEV 6

#define	USBC_BP_DEVCTL_LS_DEV 5

#define	USBC_BP_DEVCTL_VBUS 3

#define	USBC_BP_DEVCTL_HOST_MODE 2

#define	USBC_BP_DEVCTL_HOST_REQ 1

#define	USBC_BP_DEVCTL_SESSION 0

#define	USBC_BP_TXFIFOSZ_DPB 4

#define	USBC_BP_TXFIFOSZ_SZ 0

#define	USBC_BP_RXFIFOSZ_DPB 4

#define	USBC_BP_RXFIFOSZ_SZ 0

#define	USBC_BP_VEND0_DRQ_SEL 1

#define	USBC_BP_VEND0_BUS_SEL 0

#define	USBC_BP_HADDR_MULTI_TT 7

#define	USBC_BP_ISCR_VBUS_VALID_FROM_DATA 30

#define	USBC_BP_ISCR_VBUS_VALID_FROM_VBUS 29

#define	USBC_BP_ISCR_EXT_ID_STATUS 28

#define	USBC_BP_ISCR_EXT_DM_STATUS 27

#define	USBC_BP_ISCR_EXT_DP_STATUS 26

#define	USBC_BP_ISCR_MERGED_VBUS_STATUS 25

#define	USBC_BP_ISCR_MERGED_ID_STATUS 24

#define	USBC_BP_ISCR_ID_PULLUP_EN 17

#define	USBC_BP_ISCR_DPDM_PULLUP_EN 16

#define	USBC_BP_ISCR_FORCE_ID 14

#define	USBC_BP_ISCR_FORCE_VBUS_VALID 12

#define	USBC_BP_ISCR_VBUS_VALID_SRC 10

#define	USBC_BP_ISCR_HOSC_EN 7

#define	USBC_BP_ISCR_VBUS_CHANGE_DETECT 6

#define	USBC_BP_ISCR_ID_CHANGE_DETECT 5

#define	USBC_BP_ISCR_DPDM_CHANGE_DETECT 4

#define	USBC_BP_ISCR_IRQ_ENABLE 3

#define	USBC_BP_ISCR_VBUS_CHANGE_DETECT_EN 2

#define	USBC_BP_ISCR_ID_CHANGE_DETECT_EN 1

#define	USBC_BP_ISCR_DPDM_CHANGE_DETECT_EN 0

#define	USBC_MAX_CTL_NUM 3

#define	USBC_MAX_EP_NUM 6 /* 能够支持的最大ep号, ep0~5 */

#define	USBC0_MAX_FIFO_SIZE (8 * 1024)

#define	USBC_EP0_FIFOSIZE 64 /* This is non-configurable */

#define	USBC_OTG_HOST 0

#define	USBC_OTG_DEVICE 1

#define	USBC_DEVICE_HSDEV 0

#define	USBC_DEVICE_FSDEV 1

#define	USBC_DEVICE_LSDEV 2

#define	USBC_TS_TYPE_IDLE 0

#define	USBC_TS_TYPE_CTRL 1

#define	USBC_TS_TYPE_ISO 2

#define	USBC_TS_TYPE_INT 3

#define	USBC_TS_TYPE_BULK 4

#define	USBC_TS_MODE_UNKOWN 0

#define	USBC_TS_MODE_LS 1

#define	USBC_TS_MODE_FS 2

#define	USBC_TS_MODE_HS 3

#define	USBC_VBUS_STATUS_BELOW_SESSIONEND 0

#define	USBC_VBUS_STATUS_ABOVE_SESSIONEND_BELOW_AVALID 1

#define	USBC_VBUS_STATUS_ABOVE_AVALID_BELOW_VBUSVALID 2

#define	USBC_VBUS_STATUS_ABOVE_VBUSVALID 3

#define	USBC_IO_TYPE_PIO 0

#define	USBC_IO_TYPE_DMA 1

#define	USBC_EP_TYPE_IDLE 0

#define	USBC_EP_TYPE_EP0 1

#define	USBC_EP_TYPE_TX 2

#define	USBC_EP_TYPE_RX 3

#define	USBC_ID_TYPE_DISABLE 0

#define	USBC_ID_TYPE_HOST 1

#define	USBC_ID_TYPE_DEVICE 2

#define	USBC_VBUS_TYPE_DISABLE 0

#define	USBC_VBUS_TYPE_LOW 1

#define	USBC_VBUS_TYPE_HIGH 2

#define	USBC_A_VALID_SOURCE_UTMI_AVALID 0

#define	USBC_A_VALID_SOURCE_UTMI_VBUS 1

#define	USBC_DEVICE_SWITCH_OFF 0

#define	USBC_DEVICE_SWITCH_ON 1

#define	USBC_FIFO_MODE_4K 0

#define	USBC_FIFO_MODE_8K 1

#define	USB_DMA_FROM_DRAM_TO_HOST 0

#define	USB_DMA_FROM_HOST_TO_DRAM 1

#define	USBC_INTTx_FLAG_EP5 (1 << USBC_BP_INTTx_FLAG_EP5)

#define	USBC_INTTx_FLAG_EP4 (1 << USBC_BP_INTTx_FLAG_EP4)

#define	USBC_INTTx_FLAG_EP3 (1 << USBC_BP_INTTx_FLAG_EP3)

#define	USBC_INTTx_FLAG_EP2 (1 << USBC_BP_INTTx_FLAG_EP2)

#define	USBC_INTTx_FLAG_EP1 (1 << USBC_BP_INTTx_FLAG_EP1)

#define	USBC_INTTx_FLAG_EP0 (1 << USBC_BP_INTTx_FLAG_EP0)

#define	USBC_INTRx_FLAG_EP5 (1 << USBC_BP_INTRx_FLAG_EP5)

#define	USBC_INTRx_FLAG_EP4 (1 << USBC_BP_INTRx_FLAG_EP4)

#define	USBC_INTRx_FLAG_EP3 (1 << USBC_BP_INTRx_FLAG_EP3)

#define	USBC_INTRx_FLAG_EP2 (1 << USBC_BP_INTRx_FLAG_EP2)

#define	USBC_INTRx_FLAG_EP1 (1 << USBC_BP_INTRx_FLAG_EP1)

#define	USBC_INTUSB_VBUS_ERROR (1 << USBC_BP_INTUSB_VBUS_ERROR)

#define	USBC_INTUSB_SESSION_REQ (1 << USBC_BP_INTUSB_SESSION_REQ)

#define	USBC_INTUSB_DISCONNECT (1 << USBC_BP_INTUSB_DISCONNECT)

#define	USBC_INTUSB_CONNECT (1 << USBC_BP_INTUSB_CONNECT)

#define	USBC_INTUSB_SOF (1 << USBC_BP_INTUSB_SOF)

#define	USBC_INTUSB_RESET (1 << USBC_BP_INTUSB_RESET)

#define	USBC_INTUSB_RESUME (1 << USBC_BP_INTUSB_RESUME)

#define	USBC_INTUSB_SUSPEND (1 << USBC_BP_INTUSB_SUSPEND)

#define	USBC_PHY_CTL_VBUSVLDEXT 5

#define	USBC_PHY_CTL_SIDDQ 3

Macro Definition Documentation

◆ USB_DMA_FROM_DRAM_TO_HOST

#define USB_DMA_FROM_DRAM_TO_HOST 0

◆ USB_DMA_FROM_HOST_TO_DRAM

#define USB_DMA_FROM_HOST_TO_DRAM 1

◆ USB_PHY_CTL

#define USB_PHY_CTL 0x0410

◆ USB_PHY_SEL

#define USB_PHY_SEL 0x0420

◆ USBC0_MAX_FIFO_SIZE

#define USBC0_MAX_FIFO_SIZE (8 * 1024)

◆ USBC_A_VALID_SOURCE_UTMI_AVALID

#define USBC_A_VALID_SOURCE_UTMI_AVALID 0

◆ USBC_A_VALID_SOURCE_UTMI_VBUS

#define USBC_A_VALID_SOURCE_UTMI_VBUS 1

◆ USBC_BP_CONFIGDATA_BIGENDIAN

#define USBC_BP_CONFIGDATA_BIGENDIAN 5

◆ USBC_BP_CONFIGDATA_DYNFIFO_SIZING

#define USBC_BP_CONFIGDATA_DYNFIFO_SIZING 2

◆ USBC_BP_CONFIGDATA_HBRXE

#define USBC_BP_CONFIGDATA_HBRXE 4

◆ USBC_BP_CONFIGDATA_HBTXE

#define USBC_BP_CONFIGDATA_HBTXE 3

◆ USBC_BP_CONFIGDATA_MPRXE

#define USBC_BP_CONFIGDATA_MPRXE 7

◆ USBC_BP_CONFIGDATA_MPTXE

#define USBC_BP_CONFIGDATA_MPTXE 6

◆ USBC_BP_CONFIGDATA_SOFTCONE

#define USBC_BP_CONFIGDATA_SOFTCONE 1

◆ USBC_BP_CONFIGDATA_UTMI_DATAWIDTH

#define USBC_BP_CONFIGDATA_UTMI_DATAWIDTH 0

◆ USBC_BP_CSR0_D_DATA_END

#define USBC_BP_CSR0_D_DATA_END 3

◆ USBC_BP_CSR0_D_FLUSH_FIFO

#define USBC_BP_CSR0_D_FLUSH_FIFO 8

◆ USBC_BP_CSR0_D_RX_PKT_READY

#define USBC_BP_CSR0_D_RX_PKT_READY 0

◆ USBC_BP_CSR0_D_SEND_STALL

#define USBC_BP_CSR0_D_SEND_STALL 5

◆ USBC_BP_CSR0_D_SENT_STALL

#define USBC_BP_CSR0_D_SENT_STALL 2

◆ USBC_BP_CSR0_D_SERVICED_RX_PKT_READY

#define USBC_BP_CSR0_D_SERVICED_RX_PKT_READY 6

◆ USBC_BP_CSR0_D_SERVICED_SETUP_END

#define USBC_BP_CSR0_D_SERVICED_SETUP_END 7

◆ USBC_BP_CSR0_D_SETUP_END

#define USBC_BP_CSR0_D_SETUP_END 4

◆ USBC_BP_CSR0_D_TX_PKT_READY

#define USBC_BP_CSR0_D_TX_PKT_READY 1

◆ USBC_BP_CSR0_H_DisPing

#define USBC_BP_CSR0_H_DisPing 11

◆ USBC_BP_CSR0_H_Error

#define USBC_BP_CSR0_H_Error 4

◆ USBC_BP_CSR0_H_FlushFIFO

#define USBC_BP_CSR0_H_FlushFIFO 8

◆ USBC_BP_CSR0_H_NAK_Timeout

#define USBC_BP_CSR0_H_NAK_Timeout 7

◆ USBC_BP_CSR0_H_ReqPkt

#define USBC_BP_CSR0_H_ReqPkt 5

◆ USBC_BP_CSR0_H_RxPkRdy

#define USBC_BP_CSR0_H_RxPkRdy 0

◆ USBC_BP_CSR0_H_RxStall

#define USBC_BP_CSR0_H_RxStall 2

◆ USBC_BP_CSR0_H_SetupPkt

#define USBC_BP_CSR0_H_SetupPkt 3

◆ USBC_BP_CSR0_H_StatusPkt

#define USBC_BP_CSR0_H_StatusPkt 6

◆ USBC_BP_CSR0_H_TxPkRdy

#define USBC_BP_CSR0_H_TxPkRdy 1

◆ USBC_BP_DEVCTL_B_DEVICE

#define USBC_BP_DEVCTL_B_DEVICE 7

◆ USBC_BP_DEVCTL_FS_DEV

#define USBC_BP_DEVCTL_FS_DEV 6

◆ USBC_BP_DEVCTL_HOST_MODE

#define USBC_BP_DEVCTL_HOST_MODE 2

◆ USBC_BP_DEVCTL_HOST_REQ

#define USBC_BP_DEVCTL_HOST_REQ 1

◆ USBC_BP_DEVCTL_LS_DEV

#define USBC_BP_DEVCTL_LS_DEV 5

◆ USBC_BP_DEVCTL_SESSION

#define USBC_BP_DEVCTL_SESSION 0

◆ USBC_BP_DEVCTL_VBUS

#define USBC_BP_DEVCTL_VBUS 3

◆ USBC_BP_HADDR_MULTI_TT

#define USBC_BP_HADDR_MULTI_TT 7

◆ USBC_BP_INTRx_FLAG_EP1

#define USBC_BP_INTRx_FLAG_EP1 1

◆ USBC_BP_INTRx_FLAG_EP2

#define USBC_BP_INTRx_FLAG_EP2 2

◆ USBC_BP_INTRx_FLAG_EP3

#define USBC_BP_INTRx_FLAG_EP3 3

◆ USBC_BP_INTRx_FLAG_EP4

#define USBC_BP_INTRx_FLAG_EP4 4

◆ USBC_BP_INTRx_FLAG_EP5

#define USBC_BP_INTRx_FLAG_EP5 5

◆ USBC_BP_INTRxE_EN_EP1

#define USBC_BP_INTRxE_EN_EP1 1

◆ USBC_BP_INTRxE_EN_EP2

#define USBC_BP_INTRxE_EN_EP2 2

◆ USBC_BP_INTRxE_EN_EP3

#define USBC_BP_INTRxE_EN_EP3 3

◆ USBC_BP_INTRxE_EN_EP4

#define USBC_BP_INTRxE_EN_EP4 4

◆ USBC_BP_INTRxE_EN_EP5

#define USBC_BP_INTRxE_EN_EP5 5

◆ USBC_BP_INTTx_FLAG_EP0

#define USBC_BP_INTTx_FLAG_EP0 0

◆ USBC_BP_INTTx_FLAG_EP1

#define USBC_BP_INTTx_FLAG_EP1 1

◆ USBC_BP_INTTx_FLAG_EP2

#define USBC_BP_INTTx_FLAG_EP2 2

◆ USBC_BP_INTTx_FLAG_EP3

#define USBC_BP_INTTx_FLAG_EP3 3

◆ USBC_BP_INTTx_FLAG_EP4

#define USBC_BP_INTTx_FLAG_EP4 4

◆ USBC_BP_INTTx_FLAG_EP5

#define USBC_BP_INTTx_FLAG_EP5 5

◆ USBC_BP_INTTxE_EN_EP0

#define USBC_BP_INTTxE_EN_EP0 0

◆ USBC_BP_INTTxE_EN_EP1

#define USBC_BP_INTTxE_EN_EP1 1

◆ USBC_BP_INTTxE_EN_EP2

#define USBC_BP_INTTxE_EN_EP2 2

◆ USBC_BP_INTTxE_EN_EP3

#define USBC_BP_INTTxE_EN_EP3 3

◆ USBC_BP_INTTxE_EN_EP4

#define USBC_BP_INTTxE_EN_EP4 4

◆ USBC_BP_INTTxE_EN_EP5

#define USBC_BP_INTTxE_EN_EP5 5

◆ USBC_BP_INTUSB_CONNECT

#define USBC_BP_INTUSB_CONNECT 4

◆ USBC_BP_INTUSB_DISCONNECT

#define USBC_BP_INTUSB_DISCONNECT 5

◆ USBC_BP_INTUSB_RESET

#define USBC_BP_INTUSB_RESET 2

◆ USBC_BP_INTUSB_RESUME

#define USBC_BP_INTUSB_RESUME 1

◆ USBC_BP_INTUSB_SESSION_REQ

#define USBC_BP_INTUSB_SESSION_REQ 6

◆ USBC_BP_INTUSB_SOF

#define USBC_BP_INTUSB_SOF 3

◆ USBC_BP_INTUSB_SUSPEND

#define USBC_BP_INTUSB_SUSPEND 0

◆ USBC_BP_INTUSB_VBUS_ERROR

#define USBC_BP_INTUSB_VBUS_ERROR 7

◆ USBC_BP_INTUSBE_EN_CONNECT

#define USBC_BP_INTUSBE_EN_CONNECT 4

◆ USBC_BP_INTUSBE_EN_DISCONNECT

#define USBC_BP_INTUSBE_EN_DISCONNECT 5

◆ USBC_BP_INTUSBE_EN_RESET

#define USBC_BP_INTUSBE_EN_RESET 2

◆ USBC_BP_INTUSBE_EN_RESUME

#define USBC_BP_INTUSBE_EN_RESUME 1

◆ USBC_BP_INTUSBE_EN_SESSION_REQ

#define USBC_BP_INTUSBE_EN_SESSION_REQ 6

◆ USBC_BP_INTUSBE_EN_SOF

#define USBC_BP_INTUSBE_EN_SOF 3

◆ USBC_BP_INTUSBE_EN_SUSPEND

#define USBC_BP_INTUSBE_EN_SUSPEND 0

◆ USBC_BP_INTUSBE_EN_VBUS_ERROR

#define USBC_BP_INTUSBE_EN_VBUS_ERROR 7

◆ USBC_BP_ISCR_DPDM_CHANGE_DETECT

#define USBC_BP_ISCR_DPDM_CHANGE_DETECT 4

◆ USBC_BP_ISCR_DPDM_CHANGE_DETECT_EN

#define USBC_BP_ISCR_DPDM_CHANGE_DETECT_EN 0

◆ USBC_BP_ISCR_DPDM_PULLUP_EN

#define USBC_BP_ISCR_DPDM_PULLUP_EN 16

◆ USBC_BP_ISCR_EXT_DM_STATUS

#define USBC_BP_ISCR_EXT_DM_STATUS 27

◆ USBC_BP_ISCR_EXT_DP_STATUS

#define USBC_BP_ISCR_EXT_DP_STATUS 26

◆ USBC_BP_ISCR_EXT_ID_STATUS

#define USBC_BP_ISCR_EXT_ID_STATUS 28

◆ USBC_BP_ISCR_FORCE_ID

#define USBC_BP_ISCR_FORCE_ID 14

◆ USBC_BP_ISCR_FORCE_VBUS_VALID

#define USBC_BP_ISCR_FORCE_VBUS_VALID 12

◆ USBC_BP_ISCR_HOSC_EN

#define USBC_BP_ISCR_HOSC_EN 7

◆ USBC_BP_ISCR_ID_CHANGE_DETECT

#define USBC_BP_ISCR_ID_CHANGE_DETECT 5

◆ USBC_BP_ISCR_ID_CHANGE_DETECT_EN

#define USBC_BP_ISCR_ID_CHANGE_DETECT_EN 1

◆ USBC_BP_ISCR_ID_PULLUP_EN

#define USBC_BP_ISCR_ID_PULLUP_EN 17

◆ USBC_BP_ISCR_IRQ_ENABLE

#define USBC_BP_ISCR_IRQ_ENABLE 3

◆ USBC_BP_ISCR_MERGED_ID_STATUS

#define USBC_BP_ISCR_MERGED_ID_STATUS 24

◆ USBC_BP_ISCR_MERGED_VBUS_STATUS

#define USBC_BP_ISCR_MERGED_VBUS_STATUS 25

◆ USBC_BP_ISCR_VBUS_CHANGE_DETECT

#define USBC_BP_ISCR_VBUS_CHANGE_DETECT 6

◆ USBC_BP_ISCR_VBUS_CHANGE_DETECT_EN

#define USBC_BP_ISCR_VBUS_CHANGE_DETECT_EN 2

◆ USBC_BP_ISCR_VBUS_VALID_FROM_DATA

#define USBC_BP_ISCR_VBUS_VALID_FROM_DATA 30

◆ USBC_BP_ISCR_VBUS_VALID_FROM_VBUS

#define USBC_BP_ISCR_VBUS_VALID_FROM_VBUS 29

◆ USBC_BP_ISCR_VBUS_VALID_SRC

#define USBC_BP_ISCR_VBUS_VALID_SRC 10

◆ USBC_BP_POWER_D_ENABLE_SUSPENDM

#define USBC_BP_POWER_D_ENABLE_SUSPENDM 0

◆ USBC_BP_POWER_D_HIGH_SPEED_EN

#define USBC_BP_POWER_D_HIGH_SPEED_EN 5

◆ USBC_BP_POWER_D_HIGH_SPEED_FLAG

#define USBC_BP_POWER_D_HIGH_SPEED_FLAG 4

◆ USBC_BP_POWER_D_ISO_UPDATE_EN

#define USBC_BP_POWER_D_ISO_UPDATE_EN 7

◆ USBC_BP_POWER_D_RESET_FLAG

#define USBC_BP_POWER_D_RESET_FLAG 3

◆ USBC_BP_POWER_D_RESUME

#define USBC_BP_POWER_D_RESUME 2

◆ USBC_BP_POWER_D_SOFT_CONNECT

#define USBC_BP_POWER_D_SOFT_CONNECT 6

◆ USBC_BP_POWER_D_SUSPEND

#define USBC_BP_POWER_D_SUSPEND 1

◆ USBC_BP_POWER_H_HIGH_SPEED_EN

#define USBC_BP_POWER_H_HIGH_SPEED_EN 5

◆ USBC_BP_POWER_H_HIGH_SPEED_FLAG

#define USBC_BP_POWER_H_HIGH_SPEED_FLAG 4

◆ USBC_BP_POWER_H_RESET

#define USBC_BP_POWER_H_RESET 3

◆ USBC_BP_POWER_H_RESUME

#define USBC_BP_POWER_H_RESUME 2

◆ USBC_BP_POWER_H_SUEPEND_EN

#define USBC_BP_POWER_H_SUEPEND_EN 0

◆ USBC_BP_POWER_H_SUSPEND

#define USBC_BP_POWER_H_SUSPEND 1

◆ USBC_BP_RXCSR_D_AUTO_CLEAR

#define USBC_BP_RXCSR_D_AUTO_CLEAR 15

◆ USBC_BP_RXCSR_D_CLEAR_DATA_TOGGLE

#define USBC_BP_RXCSR_D_CLEAR_DATA_TOGGLE 7

◆ USBC_BP_RXCSR_D_DATA_ERROR

#define USBC_BP_RXCSR_D_DATA_ERROR 3

◆ USBC_BP_RXCSR_D_DISABLE_NYET

#define USBC_BP_RXCSR_D_DISABLE_NYET 12

◆ USBC_BP_RXCSR_D_DMA_REQ_EN

#define USBC_BP_RXCSR_D_DMA_REQ_EN 13

◆ USBC_BP_RXCSR_D_DMA_REQ_MODE

#define USBC_BP_RXCSR_D_DMA_REQ_MODE 11

◆ USBC_BP_RXCSR_D_FIFO_FULL

#define USBC_BP_RXCSR_D_FIFO_FULL 1

◆ USBC_BP_RXCSR_D_FLUSH_FIFO

#define USBC_BP_RXCSR_D_FLUSH_FIFO 4

◆ USBC_BP_RXCSR_D_INCOMPLETE

#define USBC_BP_RXCSR_D_INCOMPLETE 8

◆ USBC_BP_RXCSR_D_ISO

#define USBC_BP_RXCSR_D_ISO 14

◆ USBC_BP_RXCSR_D_OVERRUN

#define USBC_BP_RXCSR_D_OVERRUN 2

◆ USBC_BP_RXCSR_D_RX_PKT_READY

#define USBC_BP_RXCSR_D_RX_PKT_READY 0

◆ USBC_BP_RXCSR_D_SEND_STALL

#define USBC_BP_RXCSR_D_SEND_STALL 5

◆ USBC_BP_RXCSR_D_SENT_STALL

#define USBC_BP_RXCSR_D_SENT_STALL 6

◆ USBC_BP_RXCSR_H_AUTO_CLEAR

#define USBC_BP_RXCSR_H_AUTO_CLEAR 15

◆ USBC_BP_RXCSR_H_AUTO_REQ

#define USBC_BP_RXCSR_H_AUTO_REQ 14

◆ USBC_BP_RXCSR_H_CLEAR_DATA_TOGGLE

#define USBC_BP_RXCSR_H_CLEAR_DATA_TOGGLE 7

◆ USBC_BP_RXCSR_H_DATA_ERR

#define USBC_BP_RXCSR_H_DATA_ERR 3 /* iso */

◆ USBC_BP_RXCSR_H_DATA_TOGGLE

#define USBC_BP_RXCSR_H_DATA_TOGGLE 9

◆ USBC_BP_RXCSR_H_DATA_TOGGLE_WR_EN

#define USBC_BP_RXCSR_H_DATA_TOGGLE_WR_EN 10

◆ USBC_BP_RXCSR_H_DISNYET

#define USBC_BP_RXCSR_H_DISNYET 12 /* dis nyet */

◆ USBC_BP_RXCSR_H_DMA_REQ_EN

#define USBC_BP_RXCSR_H_DMA_REQ_EN 13

◆ USBC_BP_RXCSR_H_DMA_REQ_MODE

#define USBC_BP_RXCSR_H_DMA_REQ_MODE 11

◆ USBC_BP_RXCSR_H_ERROR

#define USBC_BP_RXCSR_H_ERROR 2

◆ USBC_BP_RXCSR_H_FIFO_FULL

#define USBC_BP_RXCSR_H_FIFO_FULL 1

◆ USBC_BP_RXCSR_H_FLUSH_FIFO

#define USBC_BP_RXCSR_H_FLUSH_FIFO 4

◆ USBC_BP_RXCSR_H_INCOMPLETE

#define USBC_BP_RXCSR_H_INCOMPLETE 8

◆ USBC_BP_RXCSR_H_NAK_TIMEOUT

#define USBC_BP_RXCSR_H_NAK_TIMEOUT 3 /* bulk */

◆ USBC_BP_RXCSR_H_PID_ERROR

#define USBC_BP_RXCSR_H_PID_ERROR 12 /* pid error */

◆ USBC_BP_RXCSR_H_REQ_PACKET

#define USBC_BP_RXCSR_H_REQ_PACKET 5

◆ USBC_BP_RXCSR_H_RX_PKT_READY

#define USBC_BP_RXCSR_H_RX_PKT_READY 0

◆ USBC_BP_RXCSR_H_RX_STALL

#define USBC_BP_RXCSR_H_RX_STALL 6

◆ USBC_BP_RXFIFOSZ_DPB

#define USBC_BP_RXFIFOSZ_DPB 4

◆ USBC_BP_RXFIFOSZ_SZ

#define USBC_BP_RXFIFOSZ_SZ 0

◆ USBC_BP_RXMAXP_MAXIMUM_PAYLOAD

#define USBC_BP_RXMAXP_MAXIMUM_PAYLOAD 0

◆ USBC_BP_RXMAXP_PACKET_COUNT

#define USBC_BP_RXMAXP_PACKET_COUNT 11

◆ USBC_BP_RXTYPE_PROROCOL

#define USBC_BP_RXTYPE_PROROCOL 4

◆ USBC_BP_RXTYPE_SPEED

#define USBC_BP_RXTYPE_SPEED 6 /*new*/

◆ USBC_BP_RXTYPE_TARGET_EP_NUM

#define USBC_BP_RXTYPE_TARGET_EP_NUM 0

◆ USBC_BP_TMCTL_FIFO_ACCESS

#define USBC_BP_TMCTL_FIFO_ACCESS 6

◆ USBC_BP_TMCTL_FORCE_FS

#define USBC_BP_TMCTL_FORCE_FS 5

◆ USBC_BP_TMCTL_FORCE_HOST

#define USBC_BP_TMCTL_FORCE_HOST 7

◆ USBC_BP_TMCTL_FORCE_HS

#define USBC_BP_TMCTL_FORCE_HS 4

◆ USBC_BP_TMCTL_TEST_J

#define USBC_BP_TMCTL_TEST_J 1

◆ USBC_BP_TMCTL_TEST_K

#define USBC_BP_TMCTL_TEST_K 2

◆ USBC_BP_TMCTL_TEST_PACKET

#define USBC_BP_TMCTL_TEST_PACKET 3

◆ USBC_BP_TMCTL_TEST_SE0_NAK

#define USBC_BP_TMCTL_TEST_SE0_NAK 0

◆ USBC_BP_TXCSR_D_AUTOSET

#define USBC_BP_TXCSR_D_AUTOSET 15

◆ USBC_BP_TXCSR_D_CLEAR_DATA_TOGGLE

#define USBC_BP_TXCSR_D_CLEAR_DATA_TOGGLE 6

◆ USBC_BP_TXCSR_D_DMA_REQ_EN

#define USBC_BP_TXCSR_D_DMA_REQ_EN 12

◆ USBC_BP_TXCSR_D_DMA_REQ_MODE

#define USBC_BP_TXCSR_D_DMA_REQ_MODE 10

◆ USBC_BP_TXCSR_D_FIFO_NOT_EMPTY

#define USBC_BP_TXCSR_D_FIFO_NOT_EMPTY 1

◆ USBC_BP_TXCSR_D_FLUSH_FIFO

#define USBC_BP_TXCSR_D_FLUSH_FIFO 3

◆ USBC_BP_TXCSR_D_FORCE_DATA_TOGGLE

#define USBC_BP_TXCSR_D_FORCE_DATA_TOGGLE 11

◆ USBC_BP_TXCSR_D_INCOMPLETE

#define USBC_BP_TXCSR_D_INCOMPLETE 7

◆ USBC_BP_TXCSR_D_ISO

#define USBC_BP_TXCSR_D_ISO 14

◆ USBC_BP_TXCSR_D_MODE

#define USBC_BP_TXCSR_D_MODE 13

◆ USBC_BP_TXCSR_D_SEND_STALL

#define USBC_BP_TXCSR_D_SEND_STALL 4

◆ USBC_BP_TXCSR_D_SENT_STALL

#define USBC_BP_TXCSR_D_SENT_STALL 5

◆ USBC_BP_TXCSR_D_TX_READY

#define USBC_BP_TXCSR_D_TX_READY 0

◆ USBC_BP_TXCSR_D_UNDER_RUN

#define USBC_BP_TXCSR_D_UNDER_RUN 2

◆ USBC_BP_TXCSR_H_AUTOSET

#define USBC_BP_TXCSR_H_AUTOSET 15

◆ USBC_BP_TXCSR_H_CLEAR_DATA_TOGGLE

#define USBC_BP_TXCSR_H_CLEAR_DATA_TOGGLE 6

◆ USBC_BP_TXCSR_H_DATA_TOGGLE

#define USBC_BP_TXCSR_H_DATA_TOGGLE 8

◆ USBC_BP_TXCSR_H_DATA_TOGGLE_WR_EN

#define USBC_BP_TXCSR_H_DATA_TOGGLE_WR_EN 9

◆ USBC_BP_TXCSR_H_DMA_REQ_EN

#define USBC_BP_TXCSR_H_DMA_REQ_EN 12

◆ USBC_BP_TXCSR_H_DMA_REQ_MODE

#define USBC_BP_TXCSR_H_DMA_REQ_MODE 10

◆ USBC_BP_TXCSR_H_ERROR

#define USBC_BP_TXCSR_H_ERROR 2

◆ USBC_BP_TXCSR_H_FIFO_NOT_EMPTY

#define USBC_BP_TXCSR_H_FIFO_NOT_EMPTY 1

◆ USBC_BP_TXCSR_H_FLUSH_FIFO

#define USBC_BP_TXCSR_H_FLUSH_FIFO 3

◆ USBC_BP_TXCSR_H_FORCE_DATA_TOGGLE

#define USBC_BP_TXCSR_H_FORCE_DATA_TOGGLE 11

◆ USBC_BP_TXCSR_H_MODE

#define USBC_BP_TXCSR_H_MODE 13

◆ USBC_BP_TXCSR_H_NAK_TIMEOUT

#define USBC_BP_TXCSR_H_NAK_TIMEOUT 7

◆ USBC_BP_TXCSR_H_RESERVED

#define USBC_BP_TXCSR_H_RESERVED 14

◆ USBC_BP_TXCSR_H_TX_READY

#define USBC_BP_TXCSR_H_TX_READY 0

◆ USBC_BP_TXCSR_H_TX_STALL

#define USBC_BP_TXCSR_H_TX_STALL 5

◆ USBC_BP_TXFIFOSZ_DPB

#define USBC_BP_TXFIFOSZ_DPB 4

◆ USBC_BP_TXFIFOSZ_SZ

#define USBC_BP_TXFIFOSZ_SZ 0

◆ USBC_BP_TXMAXP_MAXIMUM_PAYLOAD

#define USBC_BP_TXMAXP_MAXIMUM_PAYLOAD 0

◆ USBC_BP_TXMAXP_PACKET_COUNT

#define USBC_BP_TXMAXP_PACKET_COUNT 11

◆ USBC_BP_TXTYPE_PROROCOL

#define USBC_BP_TXTYPE_PROROCOL 4

◆ USBC_BP_TXTYPE_SPEED

#define USBC_BP_TXTYPE_SPEED 6 /*new*/

◆ USBC_BP_TXTYPE_TARGET_EP_NUM

#define USBC_BP_TXTYPE_TARGET_EP_NUM 0

◆ USBC_BP_VEND0_BUS_SEL

#define USBC_BP_VEND0_BUS_SEL 0

◆ USBC_BP_VEND0_DRQ_SEL

#define USBC_BP_VEND0_DRQ_SEL 1

◆ USBC_DEVICE_FSDEV

#define USBC_DEVICE_FSDEV 1

◆ USBC_DEVICE_HSDEV

#define USBC_DEVICE_HSDEV 0

◆ USBC_DEVICE_LSDEV

#define USBC_DEVICE_LSDEV 2

◆ USBC_DEVICE_SWITCH_OFF

#define USBC_DEVICE_SWITCH_OFF 0

◆ USBC_DEVICE_SWITCH_ON

#define USBC_DEVICE_SWITCH_ON 1

◆ USBC_EP0_FIFOSIZE

#define USBC_EP0_FIFOSIZE 64 /* This is non-configurable */

◆ USBC_EP_TYPE_EP0

#define USBC_EP_TYPE_EP0 1

◆ USBC_EP_TYPE_IDLE

#define USBC_EP_TYPE_IDLE 0

◆ USBC_EP_TYPE_RX

#define USBC_EP_TYPE_RX 3

◆ USBC_EP_TYPE_TX

#define USBC_EP_TYPE_TX 2

◆ USBC_FIFO_MODE_4K

#define USBC_FIFO_MODE_4K 0

◆ USBC_FIFO_MODE_8K

#define USBC_FIFO_MODE_8K 1

◆ USBC_ID_TYPE_DEVICE

#define USBC_ID_TYPE_DEVICE 2

◆ USBC_ID_TYPE_DISABLE

#define USBC_ID_TYPE_DISABLE 0

◆ USBC_ID_TYPE_HOST

#define USBC_ID_TYPE_HOST 1

◆ USBC_INTRx_FLAG_EP1

#define USBC_INTRx_FLAG_EP1 (1 << USBC_BP_INTRx_FLAG_EP1)

◆ USBC_INTRx_FLAG_EP2

#define USBC_INTRx_FLAG_EP2 (1 << USBC_BP_INTRx_FLAG_EP2)

◆ USBC_INTRx_FLAG_EP3

#define USBC_INTRx_FLAG_EP3 (1 << USBC_BP_INTRx_FLAG_EP3)

◆ USBC_INTRx_FLAG_EP4

#define USBC_INTRx_FLAG_EP4 (1 << USBC_BP_INTRx_FLAG_EP4)

◆ USBC_INTRx_FLAG_EP5

#define USBC_INTRx_FLAG_EP5 (1 << USBC_BP_INTRx_FLAG_EP5)

◆ USBC_INTTx_FLAG_EP0

#define USBC_INTTx_FLAG_EP0 (1 << USBC_BP_INTTx_FLAG_EP0)

◆ USBC_INTTx_FLAG_EP1

#define USBC_INTTx_FLAG_EP1 (1 << USBC_BP_INTTx_FLAG_EP1)

◆ USBC_INTTx_FLAG_EP2

#define USBC_INTTx_FLAG_EP2 (1 << USBC_BP_INTTx_FLAG_EP2)

◆ USBC_INTTx_FLAG_EP3

#define USBC_INTTx_FLAG_EP3 (1 << USBC_BP_INTTx_FLAG_EP3)

◆ USBC_INTTx_FLAG_EP4

#define USBC_INTTx_FLAG_EP4 (1 << USBC_BP_INTTx_FLAG_EP4)

◆ USBC_INTTx_FLAG_EP5

#define USBC_INTTx_FLAG_EP5 (1 << USBC_BP_INTTx_FLAG_EP5)

◆ USBC_INTUSB_CONNECT

#define USBC_INTUSB_CONNECT (1 << USBC_BP_INTUSB_CONNECT)

◆ USBC_INTUSB_DISCONNECT

#define USBC_INTUSB_DISCONNECT (1 << USBC_BP_INTUSB_DISCONNECT)

◆ USBC_INTUSB_RESET

#define USBC_INTUSB_RESET (1 << USBC_BP_INTUSB_RESET)

◆ USBC_INTUSB_RESUME

#define USBC_INTUSB_RESUME (1 << USBC_BP_INTUSB_RESUME)

◆ USBC_INTUSB_SESSION_REQ

#define USBC_INTUSB_SESSION_REQ (1 << USBC_BP_INTUSB_SESSION_REQ)

◆ USBC_INTUSB_SOF

#define USBC_INTUSB_SOF (1 << USBC_BP_INTUSB_SOF)

◆ USBC_INTUSB_SUSPEND

#define USBC_INTUSB_SUSPEND (1 << USBC_BP_INTUSB_SUSPEND)

◆ USBC_INTUSB_VBUS_ERROR

#define USBC_INTUSB_VBUS_ERROR (1 << USBC_BP_INTUSB_VBUS_ERROR)

◆ USBC_IO_TYPE_DMA

#define USBC_IO_TYPE_DMA 1

◆ USBC_IO_TYPE_PIO

#define USBC_IO_TYPE_PIO 0

◆ USBC_MAX_CTL_NUM

#define USBC_MAX_CTL_NUM 3

◆ USBC_MAX_EP_NUM

#define USBC_MAX_EP_NUM 6 /* 能够支持的最大ep号, ep0~5 */

◆ USBC_OTG_DEVICE

#define USBC_OTG_DEVICE 1

◆ USBC_OTG_HOST

#define USBC_OTG_HOST 0

◆ USBC_PHY_CTL_SIDDQ

#define USBC_PHY_CTL_SIDDQ 3

◆ USBC_PHY_CTL_VBUSVLDEXT

#define USBC_PHY_CTL_VBUSVLDEXT 5

◆ USBC_REG_CONFIGDATA

#define USBC_REG_CONFIGDATA ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_CONFIGDATA)

◆ USBC_REG_COUNT0

#define USBC_REG_COUNT0 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_COUNT0)

◆ USBC_REG_CSR0

#define USBC_REG_CSR0 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_CSR0)

◆ USBC_REG_DEVCTL

#define USBC_REG_DEVCTL ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_DEVCTL)

◆ USBC_REG_DMA_BC

#define USBC_REG_DMA_BC	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_DMA_BC(n))

◆ USBC_REG_DMA_CHAN_CFN

#define USBC_REG_DMA_CHAN_CFN	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_DMA_CHAN_CFN(n))

◆ USBC_REG_DMA_INTE

#define USBC_REG_DMA_INTE ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_DMA_INTE)

◆ USBC_REG_DMA_INTS

#define USBC_REG_DMA_INTS ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_DMA_INTS)

◆ USBC_REG_DMA_RESIDUAL_BC

#define USBC_REG_DMA_RESIDUAL_BC	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_DMA_RESIDUAL_BC(n))

◆ USBC_REG_DMA_SDRAM_ADD

#define USBC_REG_DMA_SDRAM_ADD	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_DMA_SDRAM_ADD(n))

◆ USBC_REG_EP0TYPE

#define USBC_REG_EP0TYPE ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_EP0TYPE)

◆ USBC_REG_EPFIFO0

#define USBC_REG_EPFIFO0 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_EPFIFO0)

◆ USBC_REG_EPFIFO1

#define USBC_REG_EPFIFO1 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_EPFIFO1)

◆ USBC_REG_EPFIFO2

#define USBC_REG_EPFIFO2 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_EPFIFO2)

◆ USBC_REG_EPFIFO3

#define USBC_REG_EPFIFO3 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_EPFIFO3)

◆ USBC_REG_EPFIFO4

#define USBC_REG_EPFIFO4 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_EPFIFO4)

◆ USBC_REG_EPFIFO5

#define USBC_REG_EPFIFO5 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_EPFIFO5)

◆ USBC_REG_EPFIFOx

#define USBC_REG_EPFIFOx	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_EPFIFOx(n))

◆ USBC_REG_EPIND

#define USBC_REG_EPIND ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_EPIND)

◆ USBC_REG_EPINFO

#define USBC_REG_EPINFO ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_EPINFO)

◆ USBC_REG_EX_USB_ATTR0

#define USBC_REG_EX_USB_ATTR0 ( usbc_base_addr ) ((usbc_base_addr) + 0x008C)

◆ USBC_REG_EX_USB_BUSINTE

#define USBC_REG_EX_USB_BUSINTE ( usbc_base_addr ) ((usbc_base_addr) + 0x0050)

◆ USBC_REG_EX_USB_BUSINTF

#define USBC_REG_EX_USB_BUSINTF ( usbc_base_addr ) ((usbc_base_addr) + 0x004C)

◆ USBC_REG_EX_USB_CONFIGINFO

#define USBC_REG_EX_USB_CONFIGINFO ( usbc_base_addr ) ((usbc_base_addr) + 0x00C0)

◆ USBC_REG_EX_USB_COUNT0

#define USBC_REG_EX_USB_COUNT0 ( usbc_base_addr ) ((usbc_base_addr) + 0x0088)

◆ USBC_REG_EX_USB_CSR0

#define USBC_REG_EX_USB_CSR0 ( usbc_base_addr ) ((usbc_base_addr) + 0x0080)

◆ USBC_REG_EX_USB_EPATTR

#define USBC_REG_EX_USB_EPATTR ( usbc_base_addr ) ((usbc_base_addr) + 0x008C)

◆ USBC_REG_EX_USB_EPFIFOn

#define USBC_REG_EX_USB_EPFIFOn ( usbc_base_addr ) ((usbc_base_addr) + (0x00 + (n << 2)))

◆ USBC_REG_EX_USB_EPINTE

#define USBC_REG_EX_USB_EPINTE ( usbc_base_addr ) ((usbc_base_addr) + 0x0048)

◆ USBC_REG_EX_USB_EPINTF

#define USBC_REG_EX_USB_EPINTF ( usbc_base_addr ) ((usbc_base_addr) + 0x0044)

◆ USBC_REG_EX_USB_FADDR

#define USBC_REG_EX_USB_FADDR ( usbc_base_addr ) ((usbc_base_addr) + 0x0098)

◆ USBC_REG_EX_USB_FNUM

#define USBC_REG_EX_USB_FNUM ( usbc_base_addr ) ((usbc_base_addr) + 0x0054)

◆ USBC_REG_EX_USB_GCS

#define USBC_REG_EX_USB_GCS ( usbc_base_addr ) ((usbc_base_addr) + 0x0040)

◆ USBC_REG_EX_USB_ISCR

#define USBC_REG_EX_USB_ISCR ( usbc_base_addr ) ((usbc_base_addr) + 0x0400)

◆ USBC_REG_EX_USB_LINKTIM

#define USBC_REG_EX_USB_LINKTIM ( usbc_base_addr ) ((usbc_base_addr) + 0x00C4)

◆ USBC_REG_EX_USB_OTGTIM

#define USBC_REG_EX_USB_OTGTIM ( usbc_base_addr ) ((usbc_base_addr) + 0x00C8)

◆ USBC_REG_EX_USB_PHYBIST

#define USBC_REG_EX_USB_PHYBIST ( usbc_base_addr ) ((usbc_base_addr) + 0x0408)

◆ USBC_REG_EX_USB_PHYCTL

#define USBC_REG_EX_USB_PHYCTL ( usbc_base_addr ) ((usbc_base_addr) + 0x0404)

◆ USBC_REG_EX_USB_RXCOUNT

#define USBC_REG_EX_USB_RXCOUNT ( usbc_base_addr ) ((usbc_base_addr) + 0x0088)

◆ USBC_REG_EX_USB_RXCSR

#define USBC_REG_EX_USB_RXCSR ( usbc_base_addr ) ((usbc_base_addr) + 0x0084)

◆ USBC_REG_EX_USB_RXFADDR

#define USBC_REG_EX_USB_RXFADDR ( usbc_base_addr ) ((usbc_base_addr) + 0x009C)

◆ USBC_REG_EX_USB_RXFIFO

#define USBC_REG_EX_USB_RXFIFO ( usbc_base_addr ) ((usbc_base_addr) + 0x0094)

◆ USBC_REG_EX_USB_TESTC

#define USBC_REG_EX_USB_TESTC ( usbc_base_addr ) ((usbc_base_addr) + 0x007C)

◆ USBC_REG_EX_USB_TXCSR

#define USBC_REG_EX_USB_TXCSR ( usbc_base_addr ) ((usbc_base_addr) + 0x0080)

◆ USBC_REG_EX_USB_TXFADDR

#define USBC_REG_EX_USB_TXFADDR ( usbc_base_addr ) ((usbc_base_addr) + 0x0098)

◆ USBC_REG_EX_USB_TXFIFO

#define USBC_REG_EX_USB_TXFIFO ( usbc_base_addr ) ((usbc_base_addr) + 0x0090)

◆ USBC_REG_FADDR

#define USBC_REG_FADDR ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_FADDR)

◆ USBC_REG_FADDR0

#define USBC_REG_FADDR0 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_FADDR0)

◆ USBC_REG_FRNUM

#define USBC_REG_FRNUM ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_FRNUM)

◆ USBC_REG_FSEOF

#define USBC_REG_FSEOF ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_FSEOF)

◆ USBC_REG_HADDR0

#define USBC_REG_HADDR0 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_HADDR0)

◆ USBC_REG_HPORT0

#define USBC_REG_HPORT0 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_HPORT0)

◆ USBC_REG_HSEOF

#define USBC_REG_HSEOF ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_HSEOF)

◆ USBC_REG_INTRx

#define USBC_REG_INTRx ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_INTRx)

◆ USBC_REG_INTRxE

#define USBC_REG_INTRxE ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_INTRxE)

◆ USBC_REG_INTTx

#define USBC_REG_INTTx ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_INTTx)

◆ USBC_REG_INTTxE

#define USBC_REG_INTTxE ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_INTTxE)

◆ USBC_REG_INTUSB

#define USBC_REG_INTUSB ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_INTUSB)

◆ USBC_REG_INTUSBE

#define USBC_REG_INTUSBE ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_INTUSBE)

◆ USBC_REG_ISCR

#define USBC_REG_ISCR ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_ISCR)

◆ USBC_REG_LINKINFO

#define USBC_REG_LINKINFO ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_LINKINFO)

◆ USBC_REG_LSEOF

#define USBC_REG_LSEOF ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_LSEOF)

◆ USBC_REG_NAKLIMIT0

#define USBC_REG_NAKLIMIT0 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_NAKLIMIT0)

◆ USBC_REG_o_CONFIGDATA

#define USBC_REG_o_CONFIGDATA 0x00c0

◆ USBC_REG_o_COUNT0

#define USBC_REG_o_COUNT0 0x0088

◆ USBC_REG_o_CSR0

#define USBC_REG_o_CSR0 0x0082

◆ USBC_REG_o_DEVCTL

#define USBC_REG_o_DEVCTL 0x0041

◆ USBC_REG_o_DMA_ADDR

#define USBC_REG_o_DMA_ADDR 0x0544

◆ USBC_REG_o_DMA_BC

#define USBC_REG_o_DMA_BC ( n ) (0x0548 + (0x10 * n))

◆ USBC_REG_o_DMA_CHAN_CFN

#define USBC_REG_o_DMA_CHAN_CFN ( n ) (0x0540 + (0x10 * n))

◆ USBC_REG_o_DMA_CONFIG

#define USBC_REG_o_DMA_CONFIG 0x0540

◆ USBC_REG_o_DMA_ENABLE

#define USBC_REG_o_DMA_ENABLE 0x0500

◆ USBC_REG_o_DMA_INTE

#define USBC_REG_o_DMA_INTE 0x0500

◆ USBC_REG_o_DMA_INTS

#define USBC_REG_o_DMA_INTS 0x0504

◆ USBC_REG_o_DMA_RESIDUAL_BC

#define USBC_REG_o_DMA_RESIDUAL_BC ( n ) (0x0548 + (0x10 * n))

◆ USBC_REG_o_DMA_RESU

#define USBC_REG_o_DMA_RESU 0x0548

◆ USBC_REG_o_DMA_SDRAM_ADD

#define USBC_REG_o_DMA_SDRAM_ADD ( n ) (0x0544 + (0x10 * n))

◆ USBC_REG_o_DMA_SIZE

#define USBC_REG_o_DMA_SIZE 0x0548

◆ USBC_REG_o_DMA_STATUS

#define USBC_REG_o_DMA_STATUS 0x0504

◆ USBC_REG_o_EP0TYPE

#define USBC_REG_o_EP0TYPE 0x008C

◆ USBC_REG_o_EPFIFO0

#define USBC_REG_o_EPFIFO0 0x0000

◆ USBC_REG_o_EPFIFO1

#define USBC_REG_o_EPFIFO1 0x0004

◆ USBC_REG_o_EPFIFO2

#define USBC_REG_o_EPFIFO2 0x0008

◆ USBC_REG_o_EPFIFO3

#define USBC_REG_o_EPFIFO3 0x000C

◆ USBC_REG_o_EPFIFO4

#define USBC_REG_o_EPFIFO4 0x0010

◆ USBC_REG_o_EPFIFO5

#define USBC_REG_o_EPFIFO5 0x0014

◆ USBC_REG_o_EPFIFOx

#define USBC_REG_o_EPFIFOx ( n ) (0x0000 + (n << 2))

◆ USBC_REG_o_EPIND

#define USBC_REG_o_EPIND 0x0042

◆ USBC_REG_o_EPINFO

#define USBC_REG_o_EPINFO 0x0078

◆ USBC_REG_o_FADDR

#define USBC_REG_o_FADDR 0x0098

◆ USBC_REG_o_FADDR0

#define USBC_REG_o_FADDR0 0x0098

◆ USBC_REG_o_FRNUM

#define USBC_REG_o_FRNUM 0x0054

◆ USBC_REG_o_FSEOF

#define USBC_REG_o_FSEOF 0x007D

◆ USBC_REG_o_HADDR0

#define USBC_REG_o_HADDR0 0x009A

◆ USBC_REG_o_HPORT0

#define USBC_REG_o_HPORT0 0x009B

◆ USBC_REG_o_HSEOF

#define USBC_REG_o_HSEOF 0x007C

◆ USBC_REG_o_INTRx

#define USBC_REG_o_INTRx 0x0046

◆ USBC_REG_o_INTRxE

#define USBC_REG_o_INTRxE 0x004A

◆ USBC_REG_o_INTTx

#define USBC_REG_o_INTTx 0x0044

◆ USBC_REG_o_INTTxE

#define USBC_REG_o_INTTxE 0x0048

◆ USBC_REG_o_INTUSB

#define USBC_REG_o_INTUSB 0x004C

◆ USBC_REG_o_INTUSBE

#define USBC_REG_o_INTUSBE 0x0050

◆ USBC_REG_o_ISCR

#define USBC_REG_o_ISCR 0x0400

◆ USBC_REG_o_LINKINFO

#define USBC_REG_o_LINKINFO 0x007A

◆ USBC_REG_o_LSEOF

#define USBC_REG_o_LSEOF 0x007E

◆ USBC_REG_o_NAKLIMIT0

#define USBC_REG_o_NAKLIMIT0 0x008D

◆ USBC_REG_o_PCTL

#define USBC_REG_o_PCTL 0x0040

◆ USBC_REG_o_PHYBIST

#define USBC_REG_o_PHYBIST 0x0408

◆ USBC_REG_o_PHYCTL

#define USBC_REG_o_PHYCTL 0x0410

◆ USBC_REG_o_PHYTUNE

#define USBC_REG_o_PHYTUNE 0x040c

◆ USBC_REG_o_RAMINFO

#define USBC_REG_o_RAMINFO 0x0079

◆ USBC_REG_o_RPCOUNT

#define USBC_REG_o_RPCOUNT 0x008A

◆ USBC_REG_o_RXCOUNT

#define USBC_REG_o_RXCOUNT 0x0088

◆ USBC_REG_o_RXCSR

#define USBC_REG_o_RXCSR 0x0086

◆ USBC_REG_o_RXFADDRx

#define USBC_REG_o_RXFADDRx 0x009C

◆ USBC_REG_o_RXFIFOAD

#define USBC_REG_o_RXFIFOAD 0x0096

◆ USBC_REG_o_RXFIFOSZ

#define USBC_REG_o_RXFIFOSZ 0x0094

◆ USBC_REG_o_RXHADDRx

#define USBC_REG_o_RXHADDRx 0x009E

◆ USBC_REG_o_RXHPORTx

#define USBC_REG_o_RXHPORTx 0x009F

◆ USBC_REG_o_RXINTERVAL

#define USBC_REG_o_RXINTERVAL 0x008F

◆ USBC_REG_o_RXMAXP

#define USBC_REG_o_RXMAXP 0x0084

◆ USBC_REG_o_RXTYPE

#define USBC_REG_o_RXTYPE 0x008E

◆ USBC_REG_o_SEL

#define USBC_REG_o_SEL 0x420

◆ USBC_REG_o_TMCTL

#define USBC_REG_o_TMCTL 0x007C

◆ USBC_REG_o_TXCSR

#define USBC_REG_o_TXCSR 0x0082

◆ USBC_REG_o_TXFADDRx

#define USBC_REG_o_TXFADDRx 0x0098

◆ USBC_REG_o_TXFIFOAD

#define USBC_REG_o_TXFIFOAD 0x0092

◆ USBC_REG_o_TXFIFOSZ

#define USBC_REG_o_TXFIFOSZ 0x0090

◆ USBC_REG_o_TXHADDRx

#define USBC_REG_o_TXHADDRx 0x009A

◆ USBC_REG_o_TXHPORTx

#define USBC_REG_o_TXHPORTx 0x009B

◆ USBC_REG_o_TXINTERVAL

#define USBC_REG_o_TXINTERVAL 0x008D

◆ USBC_REG_o_TXMAXP

#define USBC_REG_o_TXMAXP 0x0080

◆ USBC_REG_o_TXTYPE

#define USBC_REG_o_TXTYPE 0x008C

◆ USBC_REG_o_VEND0

#define USBC_REG_o_VEND0 0x0043

◆ USBC_REG_o_VEND1

#define USBC_REG_o_VEND1 0x007D

◆ USBC_REG_o_VEND3

#define USBC_REG_o_VEND3 0x007E

◆ USBC_REG_o_VPLEN

#define USBC_REG_o_VPLEN 0x007B

◆ USBC_REG_PCTL

#define USBC_REG_PCTL ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_PCTL)

◆ USBC_REG_PHYBIST

#define USBC_REG_PHYBIST ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_PHYBIST)

◆ USBC_REG_PHYCTL

#define USBC_REG_PHYCTL ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_PHYCTL)

◆ USBC_REG_PHYTUNE

#define USBC_REG_PHYTUNE ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_PHYTUNE)

◆ USBC_REG_RAMINFO

#define USBC_REG_RAMINFO ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_RAMINFO)

◆ USBC_REG_RPCOUNTx

#define USBC_REG_RPCOUNTx	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_RPCOUNT)

◆ USBC_REG_RXCOUNT

#define USBC_REG_RXCOUNT ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_RXCOUNT)

◆ USBC_REG_RXCSR

#define USBC_REG_RXCSR ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_RXCSR)

◆ USBC_REG_RXFADDRx

#define USBC_REG_RXFADDRx	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_RXFADDRx)

◆ USBC_REG_RXFADDRx_Ex

#define USBC_REG_RXFADDRx_Ex ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_RXFADDRx)

◆ USBC_REG_RXFIFOAD

#define USBC_REG_RXFIFOAD ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_RXFIFOAD)

◆ USBC_REG_RXFIFOSZ

#define USBC_REG_RXFIFOSZ ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_RXFIFOSZ)

◆ USBC_REG_RXHADDRx

#define USBC_REG_RXHADDRx	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_RXHADDRx)

◆ USBC_REG_RXHPORTx

#define USBC_REG_RXHPORTx	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_RXHPORTx)

◆ USBC_REG_RXINTERVAL

#define USBC_REG_RXINTERVAL ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_RXINTERVAL)

◆ USBC_REG_RXMAXP

#define USBC_REG_RXMAXP ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_RXMAXP)

◆ USBC_REG_RXTYPE

#define USBC_REG_RXTYPE ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_RXTYPE)

◆ USBC_REG_TMCTL

#define USBC_REG_TMCTL ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_TMCTL)

◆ USBC_REG_TXCSR

#define USBC_REG_TXCSR ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_TXCSR)

◆ USBC_REG_TXFADDRx

#define USBC_REG_TXFADDRx	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_TXFADDRx)

◆ USBC_REG_TXFIFOAD

#define USBC_REG_TXFIFOAD ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_TXFIFOAD)

◆ USBC_REG_TXFIFOSZ

#define USBC_REG_TXFIFOSZ ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_TXFIFOSZ)

◆ USBC_REG_TXHADDRx

#define USBC_REG_TXHADDRx	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_TXHADDRx)

◆ USBC_REG_TXHPORTx

#define USBC_REG_TXHPORTx	(	usbc_base_addr,
		n
	)	((usbc_base_addr) + USBC_REG_o_TXHPORTx)

◆ USBC_REG_TXINTERVAL

#define USBC_REG_TXINTERVAL ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_TXINTERVAL)

◆ USBC_REG_TXMAXP

#define USBC_REG_TXMAXP ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_TXMAXP)

◆ USBC_REG_TXTYPE

#define USBC_REG_TXTYPE ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_TXTYPE)

◆ USBC_REG_VEND0

#define USBC_REG_VEND0 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_VEND0)

◆ USBC_REG_VEND1

#define USBC_REG_VEND1 ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_VEND1)

◆ USBC_REG_VPLEN

#define USBC_REG_VPLEN ( usbc_base_addr ) ((usbc_base_addr) + USBC_REG_o_VPLEN)

◆ USBC_RXCSR_H_WZC_BITS

#define USBC_RXCSR_H_WZC_BITS ((1 << USBC_BP_RXCSR_H_RX_STALL) | (1 << USBC_BP_RXCSR_H_ERROR) | (1 << USBC_BP_RXCSR_H_DATA_ERR) | (1 << USBC_BP_RXCSR_H_RX_PKT_READY))

◆ USBC_TS_MODE_FS

#define USBC_TS_MODE_FS 2

◆ USBC_TS_MODE_HS

#define USBC_TS_MODE_HS 3

◆ USBC_TS_MODE_LS

#define USBC_TS_MODE_LS 1

◆ USBC_TS_MODE_UNKOWN

#define USBC_TS_MODE_UNKOWN 0

◆ USBC_TS_TYPE_BULK

#define USBC_TS_TYPE_BULK 4

◆ USBC_TS_TYPE_CTRL

#define USBC_TS_TYPE_CTRL 1

◆ USBC_TS_TYPE_IDLE

#define USBC_TS_TYPE_IDLE 0

◆ USBC_TS_TYPE_INT

#define USBC_TS_TYPE_INT 3

◆ USBC_TS_TYPE_ISO

#define USBC_TS_TYPE_ISO 2

◆ USBC_TXCSR_H_WZC_BITS

#define USBC_TXCSR_H_WZC_BITS ((1 << USBC_BP_TXCSR_H_NAK_TIMEOUT) | (1 << USBC_BP_TXCSR_H_TX_STALL) | (1 << USBC_BP_TXCSR_H_ERROR) | (1 << USBC_BP_TXCSR_H_FIFO_NOT_EMPTY))

◆ USBC_VBUS_STATUS_ABOVE_AVALID_BELOW_VBUSVALID

#define USBC_VBUS_STATUS_ABOVE_AVALID_BELOW_VBUSVALID 2

◆ USBC_VBUS_STATUS_ABOVE_SESSIONEND_BELOW_AVALID

#define USBC_VBUS_STATUS_ABOVE_SESSIONEND_BELOW_AVALID 1

◆ USBC_VBUS_STATUS_ABOVE_VBUSVALID

#define USBC_VBUS_STATUS_ABOVE_VBUSVALID 3

◆ USBC_VBUS_STATUS_BELOW_SESSIONEND

#define USBC_VBUS_STATUS_BELOW_SESSIONEND 0

◆ USBC_VBUS_TYPE_DISABLE

#define USBC_VBUS_TYPE_DISABLE 0

◆ USBC_VBUS_TYPE_HIGH

#define USBC_VBUS_TYPE_HIGH 2

◆ USBC_VBUS_TYPE_LOW

#define USBC_VBUS_TYPE_LOW 1

Macros
