#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include "reg/reg-usb.h"

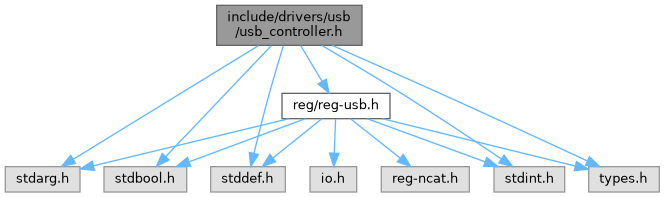

Include dependency graph for usb_controller.h:

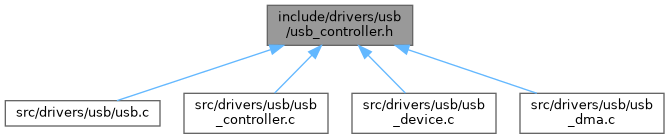

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fifo_info

struct	usb_controller_otg

Macros
#define	USBC_MAX_OPEN_NUM 8

#define	USBC_MAX_CTL_NUM 3

#define	USBC_MAX_EP_NUM 6

#define	USBC0_MAX_FIFO_SIZE (8 * 1024)

#define	USBC_EP0_FIFOSIZE 64

Typedefs
typedef struct fifo_info	fifo_info_t

typedef struct usb_controller_otg	usb_controller_otg_t

Functions
static uint32_t	usb_controller_int_tx_pending (uint32_t addr)
	Get the interrupt pending flag of a TX endpoint.

static void	usb_controller_int_clear_tx_pending (uint32_t addr, uint8_t ep_index)
	Clear the interrupt pending flag of a TX endpoint.

static void	usb_controller_int_clear_tx_pending_all (uint32_t addr)
	Clear the interrupt pending flags of all TX endpoints.

static uint32_t	usb_controller_int_rx_pending (uint32_t addr)
	Get the interrupt pending flag of an RX endpoint.

static void	usb_controller_int_clear_rx_pending (uint32_t addr, uint8_t ep_index)
	Clear the interrupt pending flag of an RX endpoint.

static void	usb_controller_int_clear_rx_pending_all (uint32_t addr)
	Clear the interrupt pending flags of all RX endpoints.

static void	usb_controller_int_enable_tx_ep (uint32_t addr, uint8_t ep_index)
	Enable the interrupt of a TX endpoint.

static void	usb_controller_int_enable_rx_ep (uint32_t addr, uint8_t ep_index)
	Enable the interrupt of an RX endpoint.

static void	usb_controller_int_disable_tx_ep (uint32_t addr, uint8_t ep_index)
	Disable the interrupt of a TX endpoint.

static void	usb_controller_int_disable_rx_ep (uint32_t addr, uint8_t ep_index)
	Disable the interrupt of an RX endpoint.

static void	usb_controller_int_disable_tx_all (uint32_t addr)
	Disable the interrupts of all TX endpoints.

static void	usb_controller_int_disable_rx_all (uint32_t addr)
	Disable the interrupts of all RX endpoints.

uint32_t	usb_controller_open_otg (uint32_t otg_no)
	Open the USB OTG controller.

int	usb_controller_close_otg (uint64_t husb)
	Close the USB OTG controller.

void	usb_controller_force_id_status (uint64_t husb, uint32_t id_type)
	Set the ID status for the USB controller.

void	usb_controller_force_vbus_valid (uint64_t husb, uint32_t vbus_type)
	Force the VBUS valid state for the USB controller.

void	usb_controller_id_pull_enable (uint64_t husb)
	Enable the ID pull-up resistor for the USB controller.

void	usb_controller_id_pull_disable (uint64_t husb)
	Disable the ID pull-up resistor for the USB controller.

void	usb_controller_dpdm_pull_enable (uint64_t husb)
	Enable the DP/DM pull-up resistors for the USB controller.

void	usb_controller_dpdm_pull_disable (uint64_t husb)
	Disable the DP/DM pull-up resistors for the USB controller.

void	usb_controller_int_disable_usb_misc_all (uint64_t husb)
	Disable all miscellaneous USB interrupts.

void	usb_controller_int_disable_ep_all (uint64_t husb, uint32_t ep_type)
	Disable all endpoint-specific interrupts.

void	usb_controller_int_enable_usb_misc_uint (uint64_t husb, uint32_t mask)
	Enable specific miscellaneous USB interrupts.

void	usb_controller_int_disable_usb_misc_uint (uint64_t husb, uint32_t mask)
	Disable specific miscellaneous USB interrupts.

void	usb_controller_int_enable_ep (uint64_t husb, uint32_t ep_type, uint32_t ep_index)
	Enable interrupts for a specific endpoint.

uint32_t	usb_controller_int_ep_pending (uint64_t husb, uint32_t ep_type)
	Get the pending interrupt status for a specific endpoint.

void	usb_controller_int_clear_ep_pending (uint64_t husb, uint32_t ep_type, uint8_t ep_index)
	Clear the pending interrupt flag for a specific endpoint.

void	usb_controller_int_clear_ep_pending_all (uint64_t husb, uint32_t ep_type)
	Clear the pending interrupt flags for all endpoints of a specific type.

uint32_t	usb_controller_int_misc_pending (uint64_t husb)
	Get the pending miscellaneous interrupt status.

void	usb_controller_int_clear_misc_pending (uint64_t husb, uint32_t mask)
	Clear the pending miscellaneous interrupt flag.

void	usb_controller_int_clear_misc_pending_all (uint64_t husb)
	Clear the pending miscellaneous interrupt flags for all interrupts.

uint32_t	usb_controller_get_active_ep (uint64_t husb)
	Get the active endpoint for the USB controller.

void	usb_controller_int_disable_ep (uint64_t husb, uint32_t ep_type, uint8_t ep_index)
	Disable interrupts for a specific endpoint.

void	usb_controller_select_active_ep (uint64_t husb, uint8_t ep_index)
	Select the active endpoint for the USB controller.

void	usb_controller_config_fifo_tx_ep_default (uint32_t addr)
	Configure the FIFO for a default transmit endpoint.

void	usb_controller_config_fifo_tx_ep (uint32_t addr, uint32_t is_double_fifo, uint32_t fifo_size, uint32_t fifo_addr)
	Configure the FIFO for a transmit endpoint.

void	usb_controller_config_fifo_rx_ep_default (uint32_t addr)
	Configure the FIFO for a default receive endpoint.

void	usb_controller_config_fifo_rx_ep (uint32_t addr, uint32_t is_double_fifo, uint32_t fifo_size, uint32_t fifo_addr)
	Configure the FIFO for a receive endpoint.

void	usb_controller_config_fifo (uint64_t husb, uint32_t ep_type, uint32_t is_double_fifo, uint32_t fifo_size, uint32_t fifo_addr)
	Configure the FIFO for a specific endpoint.

uint32_t	usb_controller_get_vbus_status (uint64_t husb)

uint32_t	usb_controller_read_len_from_fifo (uint64_t husb, uint32_t ep_type)

uint32_t	usb_controller_write_packet (uint64_t husb, uint32_t fifo, uint32_t cnt, void *buff)

uint32_t	usb_controller_read_packet (uint64_t husb, uint32_t fifo, uint32_t cnt, void *buff)

void	usb_controller_config_fifo_base (uint64_t husb, uint32_t sram_base)

uint32_t	usb_controller_get_port_fifo_start_addr (uint64_t husb)

uint32_t	usb_controller_get_port_fifo_size (uint64_t husb)

uint32_t	usb_controller_select_fifo (uint64_t husb, uint32_t ep_index)

Macro Definition Documentation

◆ USBC0_MAX_FIFO_SIZE

#define USBC0_MAX_FIFO_SIZE (8 * 1024)

◆ USBC_EP0_FIFOSIZE

#define USBC_EP0_FIFOSIZE 64

◆ USBC_MAX_CTL_NUM

#define USBC_MAX_CTL_NUM 3

◆ USBC_MAX_EP_NUM

#define USBC_MAX_EP_NUM 6

◆ USBC_MAX_OPEN_NUM

#define USBC_MAX_OPEN_NUM 8

Typedef Documentation

◆ fifo_info_t

typedef struct fifo_info fifo_info_t

◆ usb_controller_otg_t

typedef struct usb_controller_otg usb_controller_otg_t

Function Documentation

◆ usb_controller_close_otg()

int usb_controller_close_otg ( uint64_t husb )

Close the USB OTG controller.

Parameters

husb	The handle to the USB controller.

Returns: Returns the status of the operation.

◆ usb_controller_config_fifo()

void usb_controller_config_fifo	(	uint64_t	husb,
		uint32_t	ep_type,
		uint32_t	is_double_fifo,
		uint32_t	fifo_size,
		uint32_t	fifo_addr
	)

Configure the FIFO for a specific endpoint.

Parameters

husb	The handle to the USB controller.
ep_type	The type of endpoint.
is_double_fifo	Whether the endpoint has double buffering enabled.
fifo_size	The size of the FIFO.
fifo_addr	The base address of the FIFO.

◆ usb_controller_config_fifo_base()

void usb_controller_config_fifo_base	(	uint64_t	husb,
		uint32_t	sram_base
	)

◆ usb_controller_config_fifo_rx_ep()

void usb_controller_config_fifo_rx_ep	(	uint32_t	addr,
		uint32_t	is_double_fifo,
		uint32_t	fifo_size,
		uint32_t	fifo_addr
	)

Configure the FIFO for a receive endpoint.

Parameters

addr	The address of the USB controller.
is_double_fifo	Whether the endpoint has double buffering enabled.
fifo_size	The size of the FIFO.
fifo_addr	The base address of the FIFO.

◆ usb_controller_config_fifo_rx_ep_default()

void usb_controller_config_fifo_rx_ep_default ( uint32_t addr )

Configure the FIFO for a default receive endpoint.

Parameters

addr	The address of the USB controller.

◆ usb_controller_config_fifo_tx_ep()

void usb_controller_config_fifo_tx_ep	(	uint32_t	addr,
		uint32_t	is_double_fifo,
		uint32_t	fifo_size,
		uint32_t	fifo_addr
	)

Configure the FIFO for a transmit endpoint.

Parameters

addr	The address of the USB controller.
is_double_fifo	Whether the endpoint has double buffering enabled.
fifo_size	The size of the FIFO.
fifo_addr	The base address of the FIFO.

◆ usb_controller_config_fifo_tx_ep_default()

void usb_controller_config_fifo_tx_ep_default ( uint32_t addr )

Configure the FIFO for a default transmit endpoint.

Parameters

addr	The address of the USB controller.

◆ usb_controller_dpdm_pull_disable()

void usb_controller_dpdm_pull_disable ( uint64_t husb )

Disable the DP/DM pull-up resistors for the USB controller.

Parameters

husb	The handle to the USB controller.

◆ usb_controller_dpdm_pull_enable()

void usb_controller_dpdm_pull_enable ( uint64_t husb )

Enable the DP/DM pull-up resistors for the USB controller.

Parameters

husb	The handle to the USB controller.

◆ usb_controller_force_id_status()

void usb_controller_force_id_status	(	uint64_t	husb,
		uint32_t	id_type
	)

Set the ID status for the USB controller.

Parameters

husb	The handle to the USB controller.
id_type	The type of ID status to set.

◆ usb_controller_force_vbus_valid()

void usb_controller_force_vbus_valid	(	uint64_t	husb,
		uint32_t	vbus_type
	)

Force the VBUS valid state for the USB controller.

Parameters

husb	The handle to the USB controller.
vbus_type	The type of VBUS state to force.

◆ usb_controller_get_active_ep()

uint32_t usb_controller_get_active_ep ( uint64_t husb )

Get the active endpoint for the USB controller.

Parameters

husb	The handle to the USB controller.

Returns: Returns the active endpoint.

◆ usb_controller_get_port_fifo_size()

uint32_t usb_controller_get_port_fifo_size ( uint64_t husb )

◆ usb_controller_get_port_fifo_start_addr()

uint32_t usb_controller_get_port_fifo_start_addr ( uint64_t husb )

◆ usb_controller_get_vbus_status()

uint32_t usb_controller_get_vbus_status ( uint64_t husb )

◆ usb_controller_id_pull_disable()

void usb_controller_id_pull_disable ( uint64_t husb )

Disable the ID pull-up resistor for the USB controller.

Parameters

husb	The handle to the USB controller.

◆ usb_controller_id_pull_enable()

void usb_controller_id_pull_enable ( uint64_t husb )

Enable the ID pull-up resistor for the USB controller.

Parameters

husb	The handle to the USB controller.

◆ usb_controller_int_clear_ep_pending()

void usb_controller_int_clear_ep_pending	(	uint64_t	husb,
		uint32_t	ep_type,
		uint8_t	ep_index
	)

Clear the pending interrupt flag for a specific endpoint.

Parameters

husb	The handle to the USB controller.
ep_type	The type of endpoint.
ep_index	The index of the endpoint.

◆ usb_controller_int_clear_ep_pending_all()

void usb_controller_int_clear_ep_pending_all	(	uint64_t	husb,
		uint32_t	ep_type
	)

Clear the pending interrupt flags for all endpoints of a specific type.

Parameters

husb	The handle to the USB controller.
ep_type	The type of endpoint.

◆ usb_controller_int_clear_misc_pending()

void usb_controller_int_clear_misc_pending	(	uint64_t	husb,
		uint32_t	mask
	)

Clear the pending miscellaneous interrupt flag.

Parameters

husb	The handle to the USB controller.
mask	The interrupt mask to clear.

◆ usb_controller_int_clear_misc_pending_all()

void usb_controller_int_clear_misc_pending_all ( uint64_t husb )

Clear the pending miscellaneous interrupt flags for all interrupts.

Parameters

husb	The handle to the USB controller.

◆ usb_controller_int_clear_rx_pending()

static void usb_controller_int_clear_rx_pending	(	uint32_t	addr,
		uint8_t	ep_index
	)

inlinestatic

Clear the interrupt pending flag of an RX endpoint.

Parameters

addr	The address of the USB controller.
ep_index	The index of the RX endpoint.

◆ usb_controller_int_clear_rx_pending_all()

static void usb_controller_int_clear_rx_pending_all ( uint32_t addr )

inlinestatic

Clear the interrupt pending flags of all RX endpoints.

Parameters

addr	The address of the USB controller.

◆ usb_controller_int_clear_tx_pending()

static void usb_controller_int_clear_tx_pending	(	uint32_t	addr,
		uint8_t	ep_index
	)

inlinestatic

Clear the interrupt pending flag of a TX endpoint.

Parameters

addr	The address of the USB controller.
ep_index	The index of the TX endpoint.

◆ usb_controller_int_clear_tx_pending_all()

static void usb_controller_int_clear_tx_pending_all ( uint32_t addr )

inlinestatic

Clear the interrupt pending flags of all TX endpoints.

Parameters

addr	The address of the USB controller.

◆ usb_controller_int_disable_ep()

void usb_controller_int_disable_ep	(	uint64_t	husb,
		uint32_t	ep_type,
		uint8_t	ep_index
	)

Disable interrupts for a specific endpoint.

Parameters

husb	The handle to the USB controller.
ep_type	The type of endpoint.
ep_index	The index of the endpoint.

◆ usb_controller_int_disable_ep_all()

void usb_controller_int_disable_ep_all	(	uint64_t	husb,
		uint32_t	ep_type
	)

Disable all endpoint-specific interrupts.

Parameters

husb	The handle to the USB controller.
ep_type	The type of endpoint to disable interrupts for.

◆ usb_controller_int_disable_rx_all()

static void usb_controller_int_disable_rx_all ( uint32_t addr )

inlinestatic

Disable the interrupts of all RX endpoints.

Parameters

addr	The address of the USB controller.

◆ usb_controller_int_disable_rx_ep()

static void usb_controller_int_disable_rx_ep	(	uint32_t	addr,
		uint8_t	ep_index
	)

inlinestatic

Disable the interrupt of an RX endpoint.

Parameters

addr	The address of the USB controller.
ep_index	The index of the RX endpoint.

◆ usb_controller_int_disable_tx_all()

static void usb_controller_int_disable_tx_all ( uint32_t addr )

inlinestatic

Disable the interrupts of all TX endpoints.

Parameters

addr	The address of the USB controller.

◆ usb_controller_int_disable_tx_ep()

static void usb_controller_int_disable_tx_ep	(	uint32_t	addr,
		uint8_t	ep_index
	)

inlinestatic

Disable the interrupt of a TX endpoint.

Parameters

addr	The address of the USB controller.
ep_index	The index of the TX endpoint.

◆ usb_controller_int_disable_usb_misc_all()

void usb_controller_int_disable_usb_misc_all ( uint64_t husb )

Disable all miscellaneous USB interrupts.

Parameters

husb	The handle to the USB controller.

◆ usb_controller_int_disable_usb_misc_uint()

void usb_controller_int_disable_usb_misc_uint	(	uint64_t	husb,
		uint32_t	mask
	)

Disable specific miscellaneous USB interrupts.

Parameters

husb	The handle to the USB controller.
mask	The interrupt mask to enable.

◆ usb_controller_int_enable_ep()

void usb_controller_int_enable_ep	(	uint64_t	husb,
		uint32_t	ep_type,
		uint32_t	ep_index
	)

Enable interrupts for a specific endpoint.

Parameters

husb	The handle to the USB controller.
ep_type	The type of endpoint to enable interrupts for.
ep_index	The index of the endpoint to enable interrupts for.

◆ usb_controller_int_enable_rx_ep()

static void usb_controller_int_enable_rx_ep	(	uint32_t	addr,
		uint8_t	ep_index
	)

inlinestatic

Enable the interrupt of an RX endpoint.

Parameters

addr	The address of the USB controller.
ep_index	The index of the RX endpoint.

◆ usb_controller_int_enable_tx_ep()

static void usb_controller_int_enable_tx_ep	(	uint32_t	addr,
		uint8_t	ep_index
	)

inlinestatic

Enable the interrupt of a TX endpoint.

Parameters

addr	The address of the USB controller.
ep_index	The index of the TX endpoint.

◆ usb_controller_int_enable_usb_misc_uint()

void usb_controller_int_enable_usb_misc_uint	(	uint64_t	husb,
		uint32_t	mask
	)

Enable specific miscellaneous USB interrupts.

Parameters

husb	The handle to the USB controller.
mask	The interrupt mask to enable.

◆ usb_controller_int_ep_pending()

uint32_t usb_controller_int_ep_pending	(	uint64_t	husb,
		uint32_t	ep_type
	)

Get the pending interrupt status for a specific endpoint.

Parameters

husb	The handle to the USB controller.
ep_type	The type of endpoint.

Returns: Returns the pending interrupt status.

◆ usb_controller_int_misc_pending()

uint32_t usb_controller_int_misc_pending ( uint64_t husb )

Get the pending miscellaneous interrupt status.

Parameters

husb	The handle to the USB controller.

Returns: Returns the pending miscellaneous interrupt status.

◆ usb_controller_int_rx_pending()

static uint32_t usb_controller_int_rx_pending ( uint32_t addr )

inlinestatic

Get the interrupt pending flag of an RX endpoint.

Parameters

addr	The address of the USB controller.

Returns: Returns the interrupt pending flag of the RX endpoint.

◆ usb_controller_int_tx_pending()

static uint32_t usb_controller_int_tx_pending ( uint32_t addr )

inlinestatic

Get the interrupt pending flag of a TX endpoint.

Parameters

addr	The address of the USB controller.

Returns: Returns the interrupt pending flag of the TX endpoint.

◆ usb_controller_open_otg()

uint32_t usb_controller_open_otg ( uint32_t otg_no )

Open the USB OTG controller.

Parameters

otg_no The OTG controller number.

Returns: Returns the status of the operation.

◆ usb_controller_read_len_from_fifo()

uint32_t usb_controller_read_len_from_fifo	(	uint64_t	husb,
		uint32_t	ep_type
	)

◆ usb_controller_read_packet()

uint32_t usb_controller_read_packet	(	uint64_t	husb,
		uint32_t	fifo,
		uint32_t	cnt,
		void *	buff
	)

◆ usb_controller_select_active_ep()

void usb_controller_select_active_ep	(	uint64_t	husb,
		uint8_t	ep_index
	)

Select the active endpoint for the USB controller.

Parameters

husb	The handle to the USB controller.
ep_index	The index of the endpoint to select as active.

◆ usb_controller_select_fifo()

uint32_t usb_controller_select_fifo	(	uint64_t	husb,
		uint32_t	ep_index
	)

◆ usb_controller_write_packet()

uint32_t usb_controller_write_packet	(	uint64_t	husb,
		uint32_t	fifo,
		uint32_t	cnt,
		void *	buff
	)

Classes

Macros

Typedefs

Functions

Macro Definition Documentation

◆ USBC0_MAX_FIFO_SIZE

◆ USBC_EP0_FIFOSIZE

◆ USBC_MAX_CTL_NUM

◆ USBC_MAX_EP_NUM

◆ USBC_MAX_OPEN_NUM

Typedef Documentation

◆ fifo_info_t

◆ usb_controller_otg_t

Function Documentation

◆ usb_controller_close_otg()

◆ usb_controller_config_fifo()

◆ usb_controller_config_fifo_base()

◆ usb_controller_config_fifo_rx_ep()

◆ usb_controller_config_fifo_rx_ep_default()

◆ usb_controller_config_fifo_tx_ep()

◆ usb_controller_config_fifo_tx_ep_default()

◆ usb_controller_dpdm_pull_disable()

◆ usb_controller_dpdm_pull_enable()

◆ usb_controller_force_id_status()

◆ usb_controller_force_vbus_valid()

◆ usb_controller_get_active_ep()

◆ usb_controller_get_port_fifo_size()

◆ usb_controller_get_port_fifo_start_addr()

◆ usb_controller_get_vbus_status()

◆ usb_controller_id_pull_disable()

◆ usb_controller_id_pull_enable()

◆ usb_controller_int_clear_ep_pending()

◆ usb_controller_int_clear_ep_pending_all()

◆ usb_controller_int_clear_misc_pending()

◆ usb_controller_int_clear_misc_pending_all()

◆ usb_controller_int_clear_rx_pending()

◆ usb_controller_int_clear_rx_pending_all()

◆ usb_controller_int_clear_tx_pending()

◆ usb_controller_int_clear_tx_pending_all()

◆ usb_controller_int_disable_ep()

◆ usb_controller_int_disable_ep_all()

◆ usb_controller_int_disable_rx_all()

◆ usb_controller_int_disable_rx_ep()

◆ usb_controller_int_disable_tx_all()

◆ usb_controller_int_disable_tx_ep()

◆ usb_controller_int_disable_usb_misc_all()

◆ usb_controller_int_disable_usb_misc_uint()

◆ usb_controller_int_enable_ep()

◆ usb_controller_int_enable_rx_ep()

◆ usb_controller_int_enable_tx_ep()

◆ usb_controller_int_enable_usb_misc_uint()

◆ usb_controller_int_ep_pending()

◆ usb_controller_int_misc_pending()

◆ usb_controller_int_rx_pending()

◆ usb_controller_int_tx_pending()

◆ usb_controller_open_otg()

◆ usb_controller_read_len_from_fifo()

◆ usb_controller_read_packet()

◆ usb_controller_select_active_ep()

◆ usb_controller_select_fifo()

◆ usb_controller_write_packet()
