#include <reg-ncat.h>

Include dependency graph for reg-clic.h:

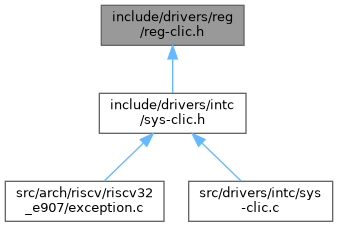

This graph shows which files directly or indirectly include this file:

Macros
#define	CLIC_CFG_REG_OFF 0x00

#define	CLIC_INFO_REG_OFF 0x04

#define	CLIC_MINTTHRESH_REG_OFF 0x08

#define	CLIC_INT_IP_REG_OFF 0x1000

#define	CLIC_INT_IE_REG_OFF 0x1001

#define	CLIC_INT_ATTR_REG_OFF 0x1002

#define	CLIC_INT_CTRL_REG_OFF 0x1003

#define	CLIC_INT_REG_ADDR_INTERVAL 0x4

#define	CLIC_INT_X_IP_REG_OFF(id) (0x1000 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

#define	CLIC_INT_X_IE_REG_OFF(id) (0x1001 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

#define	CLIC_INT_X_ATTR_REG_OFF(id) (0x1002 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

#define	CLIC_INT_X_CTRL_REG_OFF(id) (0x1003 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

#define	CLIC_INX_X_32BIT_REG_OFF(id) (0x1000 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

#define	PREEMPTION_PRIORITY_BITS_SHIFT 1

#define	PREEMPTION_PRIORITY_BITS_MASK (0xF << PREEMPTION_PRIORITY_BITS_SHIFT)

#define	IRQ_CNT_SHIFT 0

#define	IRQ_CNT_MASK (0x1FFF << IRQ_CNT_SHIFT)

#define	HW_VERSION_SHIFT 13

#define	HW_VERSION_MASK (0xF << HW_VERSION_SHIFT)

#define	HW_IMPL_VERSION_SHIFT 17

#define	HW_IMPL_VERSION_MASK (0xF << HW_IMPL_VERSION_SHIFT)

#define	CTRL_REG_BITS_SHIFT 21

#define	CTRL_REG_BITS_MASK (0xF << CTRL_REG_BITS_SHIFT)

#define	IP_SHIFT 0

#define	IP_BIT_MASK (0x1 << IP_SHIFT)

#define	IE_SHIFT 0

#define	IE_BIT_MASK (0x1 << IE_SHIFT)

#define	HW_VECTOR_IRQ_SHIFT 0

#define	HW_VECTOR_IRQ_BIT_MASK (0x1 << HW_VECTOR_IRQ_SHIFT)

#define	TRIGGER_TYPE_SHIFT 1

#define	TRIGGER_TYPE_BIT_MASK (0x3 << TRIGGER_TYPE_SHIFT)

Macro Definition Documentation

◆ CLIC_CFG_REG_OFF

#define CLIC_CFG_REG_OFF 0x00

◆ CLIC_INFO_REG_OFF

#define CLIC_INFO_REG_OFF 0x04

◆ CLIC_INT_ATTR_REG_OFF

#define CLIC_INT_ATTR_REG_OFF 0x1002

◆ CLIC_INT_CTRL_REG_OFF

#define CLIC_INT_CTRL_REG_OFF 0x1003

◆ CLIC_INT_IE_REG_OFF

#define CLIC_INT_IE_REG_OFF 0x1001

◆ CLIC_INT_IP_REG_OFF

#define CLIC_INT_IP_REG_OFF 0x1000

◆ CLIC_INT_REG_ADDR_INTERVAL

#define CLIC_INT_REG_ADDR_INTERVAL 0x4

◆ CLIC_INT_X_ATTR_REG_OFF

#define CLIC_INT_X_ATTR_REG_OFF ( id ) (0x1002 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

◆ CLIC_INT_X_CTRL_REG_OFF

#define CLIC_INT_X_CTRL_REG_OFF ( id ) (0x1003 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

◆ CLIC_INT_X_IE_REG_OFF

#define CLIC_INT_X_IE_REG_OFF ( id ) (0x1001 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

◆ CLIC_INT_X_IP_REG_OFF

#define CLIC_INT_X_IP_REG_OFF ( id ) (0x1000 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

◆ CLIC_INX_X_32BIT_REG_OFF

#define CLIC_INX_X_32BIT_REG_OFF ( id ) (0x1000 + ((id) *CLIC_INT_REG_ADDR_INTERVAL))

◆ CLIC_MINTTHRESH_REG_OFF

#define CLIC_MINTTHRESH_REG_OFF 0x08

◆ CTRL_REG_BITS_MASK

#define CTRL_REG_BITS_MASK (0xF << CTRL_REG_BITS_SHIFT)

◆ CTRL_REG_BITS_SHIFT

#define CTRL_REG_BITS_SHIFT 21

◆ HW_IMPL_VERSION_MASK

#define HW_IMPL_VERSION_MASK (0xF << HW_IMPL_VERSION_SHIFT)

◆ HW_IMPL_VERSION_SHIFT

#define HW_IMPL_VERSION_SHIFT 17

◆ HW_VECTOR_IRQ_BIT_MASK

#define HW_VECTOR_IRQ_BIT_MASK (0x1 << HW_VECTOR_IRQ_SHIFT)

◆ HW_VECTOR_IRQ_SHIFT

#define HW_VECTOR_IRQ_SHIFT 0

◆ HW_VERSION_MASK

#define HW_VERSION_MASK (0xF << HW_VERSION_SHIFT)

◆ HW_VERSION_SHIFT

#define HW_VERSION_SHIFT 13

◆ IE_BIT_MASK

#define IE_BIT_MASK (0x1 << IE_SHIFT)

◆ IE_SHIFT

#define IE_SHIFT 0

◆ IP_BIT_MASK

#define IP_BIT_MASK (0x1 << IP_SHIFT)

◆ IP_SHIFT

#define IP_SHIFT 0

◆ IRQ_CNT_MASK

#define IRQ_CNT_MASK (0x1FFF << IRQ_CNT_SHIFT)

◆ IRQ_CNT_SHIFT

#define IRQ_CNT_SHIFT 0

◆ PREEMPTION_PRIORITY_BITS_MASK

#define PREEMPTION_PRIORITY_BITS_MASK (0xF << PREEMPTION_PRIORITY_BITS_SHIFT)

◆ PREEMPTION_PRIORITY_BITS_SHIFT

#define PREEMPTION_PRIORITY_BITS_SHIFT 1

◆ TRIGGER_TYPE_BIT_MASK

#define TRIGGER_TYPE_BIT_MASK (0x3 << TRIGGER_TYPE_SHIFT)

◆ TRIGGER_TYPE_SHIFT

#define TRIGGER_TYPE_SHIFT 1

Macros
