sys-sid.c File Reference

#include <barrier.h>
#include <io.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <log.h>
#include <common.h>
#include "sys-sid.h"

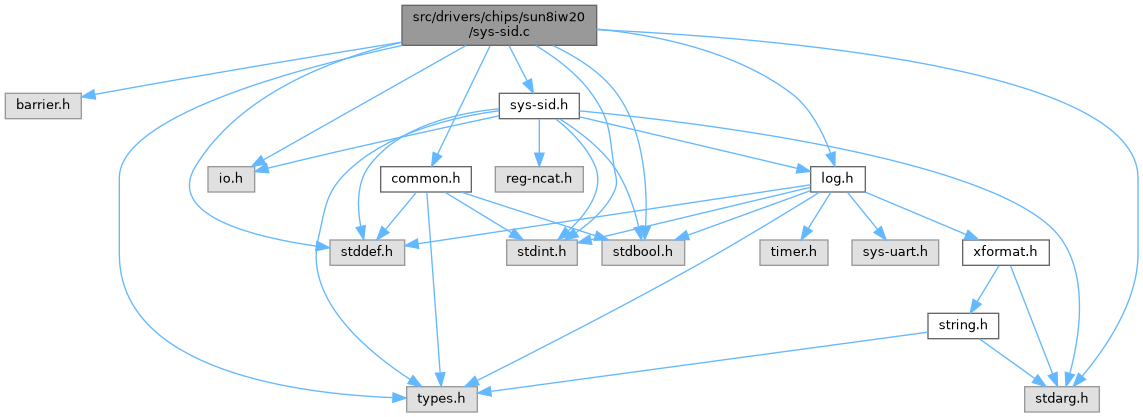

Include dependency graph for sys-sid.c:

Classes
struct	sid_section_t

Enumerations
enum	{ SID_PRCTL = SUNXI_SID_BASE + 0x040 , SID_PRKEY = SUNXI_SID_BASE + 0x050 , SID_RDKEY = SUNXI_SID_BASE + 0x060 , EFUSE_HV_SWITCH = SUNXI_RTC_BASE + 0x204 }

Functions
uint32_t	syter_efuse_read (uint32_t offset)
	Read a value from the eFuse memory.
void	syter_efuse_write (uint32_t offset, uint32_t value)
	Write a value to the eFuse memory.
void	syter_efuse_dump (void)
	Dump the contents of the eFuse memory.

Variables
const struct sid_section_t	sids []

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
SID_PRCTL
SID_PRKEY
SID_RDKEY
EFUSE_HV_SWITCH

Function Documentation

syter_efuse_dump()

void syter_efuse_dump

(

void

)

Dump the contents of the eFuse memory.

This function outputs the current contents of the eFuse memory for diagnostic purposes. The format of the output is implementation-dependent.

syter_efuse_read()

uint32_t syter_efuse_read

(

uint32_t

offset

)

Read a value from the eFuse memory.

This function reads a 32-bit value from the specified eFuse offset.

Parameters

offset

The offset in the eFuse memory from which to read the value.

Returns

The 32-bit value read from the specified eFuse offset.

syter_efuse_write()

void syter_efuse_write	(	uint32_t	offset,
		uint32_t	value
	)

Write a value to the eFuse memory.

This function writes a 32-bit value to the specified eFuse offset.

Parameters

offset	The offset in the eFuse memory to which the value will be written.
value	The 32-bit value to be written to the eFuse memory.

Variable Documentation

sids

const struct sid_section_t sids[]

Initial value:

= {
        {"chipid", 0x0000, 128},
        {"brom-conf-try", 0x0010, 32},
        {"thermal-sensor", 0x0014, 64},
        {"ft-zone", 0x001c, 128},
        {"tvout", 0x002c, 32},
        {"tvout-gamma", 0x0030, 64},
        {"oem-program", 0x0038, 64},
        {"write-protect", 0x0040, 32},
        {"read-protect", 0x0044, 32},
        {"reserved1", 0x0048, 64},
        {"huk", 0x0050, 192},
        {"reserved2", 0x0068, 64},
        {"rotpk", 0x0070, 256},
        {"ssk", 0x0090, 256},
        {"rssk", 0x00b0, 128},
        {"hdcp-hash", 0x00c0, 128},
        {"nv1", 0x00d0, 32},
        {"nv2", 0x00d4, 32},
        {"reserved3", 0x00d8, 96},
        {"oem-program-secure", 0x00e4, 224},
}
