usb_dma.h File Reference

#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include "reg/reg-usb.h"

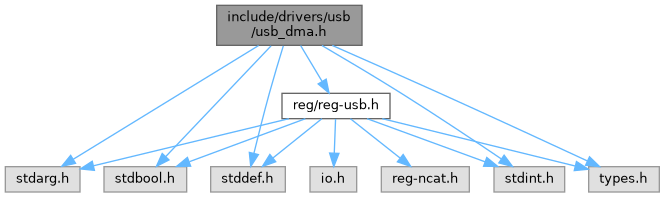

Include dependency graph for usb_dma.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
int	usb_dma_init (uint64_t husb)
	Initialize USB DMA.
int	usb_dma_request (void)
	Request a USB DMA channel.
int	usb_dma_release (uint32_t dma_index)
	Release a USB DMA channel.
int	usb_dma_setting (uint32_t dma_index, uint32_t trans_dir, uint32_t ep)
	Set the parameters of a USB DMA channel.
int	usb_dma_set_pktlen (uint32_t dma_index, uint32_t pkt_len)
	Set the packet length of a USB DMA channel.
int	usb_dma_start (uint32_t dma_index, uint32_t addr, uint32_t bytes)
	Start a USB DMA transfer.
int	usb_dma_stop (uint32_t dma_index)
	Stop a USB DMA transfer.
int	usb_dma_int_query (uint32_t dma_index)
	Query the interrupt status of a USB DMA channel.
int	usb_dma_int_clear (void)
	Clear the interrupt status of all USB DMA channels.

Function Documentation

usb_dma_init()

int usb_dma_init

(

uint64_t

husb

)

Initialize USB DMA.

This function is used to initialize USB DMA.

Parameters

husb	The USB controller handle

Returns

0 on success

usb_dma_int_clear()

int usb_dma_int_clear

(

void

)

Clear the interrupt status of all USB DMA channels.

This function is used to clear the interrupt status of all USB DMA channels.

Returns

0 on success, -1 on failure

usb_dma_int_query()

int usb_dma_int_query

(

uint32_t

dma_index

)

Query the interrupt status of a USB DMA channel.

This function is used to query the interrupt status of a USB DMA channel.

Parameters

dma_index

The DMA index to query

Returns

The interrupt status of the DMA channel

usb_dma_release()

int usb_dma_release

(

uint32_t

dma_index

)

Release a USB DMA channel.

This function is used to release a USB DMA channel.

Parameters

dma_index

The DMA index to release

Returns

0 on success, -1 on failure

usb_dma_request()

int usb_dma_request

(

void

)

Request a USB DMA channel.

This function is used to request a USB DMA channel.

Returns

The DMA index on success, 0 if no available DMA channel is found

usb_dma_set_pktlen()

int usb_dma_set_pktlen	(	uint32_t	dma_index,
		uint32_t	pkt_len
	)

Set the packet length of a USB DMA channel.

This function is used to set the packet length of a USB DMA channel.

Parameters

dma_index	The DMA index to configure
pkt_len	The packet length to set

Returns

0 on success, -1 on failure

usb_dma_setting()

int usb_dma_setting	(	uint32_t	dma_index,
		uint32_t	trans_dir,
		uint32_t	ep
	)

Set the parameters of a USB DMA channel.

This function is used to set the parameters of a USB DMA channel.

Parameters

dma_index	The DMA index to configure
trans_dir	The transfer direction (IN or OUT)
ep	The endpoint number

Returns

0 on success, -1 on failure

usb_dma_start()

int usb_dma_start	(	uint32_t	dma_index,
		uint32_t	addr,
		uint32_t	bytes
	)

Start a USB DMA transfer.

This function is used to start a USB DMA transfer.

Parameters

dma_index	The DMA index to use
addr	The address of the buffer for the transfer
bytes	The number of bytes to transfer

Returns

0 on success, -1 on failure

usb_dma_stop()

int usb_dma_stop

(

uint32_t

dma_index

)

Stop a USB DMA transfer.

This function is used to stop a USB DMA transfer.

Parameters

dma_index

The DMA index to stop

Returns

0 on success, -1 on failure
