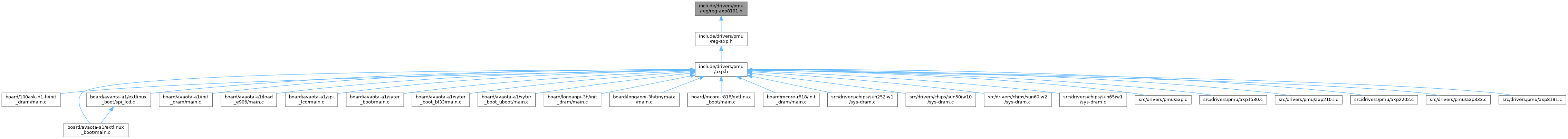

This graph shows which files directly or indirectly include this file:

Macros
#define	AXP8191_RUNTIME_ADDR (0x36)

#define	AXP8191_IC_TYPE (0x03)

#define	AXP8191_CHIP_ID (0x0E)

#define	AXP8191_CHIP_VER (0x0F)

#define	AXP8191_DCDC_POWER_ON_OFF_CTL1 (0x10)

#define	AXP8191_DCDC_POWER_ON_OFF_CTL2 (0x11)

#define	AXP8191_DC1OUT_VOL (0x12)

#define	AXP8191_DC2OUT_VOL (0x13)

#define	AXP8191_DC3OUT_VOL (0x14)

#define	AXP8191_DC4OUT_VOL (0x15)

#define	AXP8191_DC5OUT_VOL (0x16)

#define	AXP8191_DC6OUT_VOL (0x17)

#define	AXP8191_DC7OUT_VOL (0x18)

#define	AXP8191_DC8OUT_VOL (0x19)

#define	AXP8191_DC9OUT_VOL (0x1A)

#define	AXP8191_DCDC_MODE_CTL1 (0x1B)

#define	AXP8191_DCDC_MODE_CTL2 (0x1C)

#define	AXP8191_DCDC_MODE_CTL3 (0x1D)

#define	AXP8191_DCDC_MODE_CTL4 (0x1E)

#define	AXP8191_DC8SET_STATUS (0x1F)

#define	AXP8191_LDO_POWER_ON_OFF_CTL1 (0x20)

#define	AXP8191_LDO_POWER_ON_OFF_CTL2 (0x21)

#define	AXP8191_LDO_POWER_ON_OFF_CTL3 (0x22)

#define	AXP8191_LDO_POWER_ON_OFF_CTL4 (0x23)

#define	AXP8191_ALDO1OUT_VOL (0x24)

#define	AXP8191_ALDO2OUT_VOL (0x25)

#define	AXP8191_ALDO3OUT_VOL (0x26)

#define	AXP8191_ALDO4OUT_VOL (0x27)

#define	AXP8191_ALDO5OUT_VOL (0x28)

#define	AXP8191_ALDO6OUT_VOL (0x29)

#define	AXP8191_BLDO1OUT_VOL (0x2A)

#define	AXP8191_BLDO2OUT_VOL (0x2B)

#define	AXP8191_BLDO3OUT_VOL (0x2C)

#define	AXP8191_BLDO4OUT_VOL (0x2D)

#define	AXP8191_BLDO5OUT_VOL (0x2E)

#define	AXP8191_CLDO1OUT_VOL (0x2F)

#define	AXP8191_CLDO2OUT_VOL (0x30)

#define	AXP8191_CLDO3OUT_VOL (0x31)

#define	AXP8191_CLDO4OUT_VOL (0x32)

#define	AXP8191_CLDO5OUT_VOL (0x33)

#define	AXP8191_DLDO1OUT_VOL (0x34)

#define	AXP8191_DLDO2OUT_VOL (0x35)

#define	AXP8191_DLDO3OUT_VOL (0x36)

#define	AXP8191_DLDO4OUT_VOL (0x37)

#define	AXP8191_DLDO5OUT_VOL (0x38)

#define	AXP8191_DLDO6OUT_VOL (0x39)

#define	AXP8191_ELDO1OUT_VOL (0x3A)

#define	AXP8191_ELDO2OUT_VOL (0x3B)

#define	AXP8191_ELDO3OUT_VOL (0x3C)

#define	AXP8191_ELDO4OUT_VOL (0x3D)

#define	AXP8191_ELDO5OUT_VOL (0x3E)

#define	AXP8191_ELDO6OUT_VOL (0x3F)

#define	AXP8191_IRQ_ENABLE1 (0x40)

#define	AXP8191_IRQ_ENABLE2 (0x41)

#define	AXP8191_IRQ_ENABLE3 (0x42)

#define	AXP8191_IRQ_ENABLE4 (0x43)

#define	AXP8191_IRQ_STATUS1 (0x48)

#define	AXP8191_IRQ_STATUS2 (0x49)

#define	AXP8191_IRQ_STATUS3 (0x4A)

#define	AXP8191_IRQ_STATUS4 (0x4B)

#define	AXP8191_POWER_ON_OFF_SOURCE_INDIVATION (0x50)

#define	AXP8191_POWER_OFF_SOURCE_INDIVATION (0x51)

#define	AXP8191_POWER_ON_OFF_SOURCE_EN1 (0x52)

#define	AXP8191_POWER_ON_OFF_SOURCE_EN2 (0x53)

#define	AXP8191_OVP_DISCHARGE_TEMPERATURE_CFG (0x54)

#define	AXP8191_POWER_DISABLE_POWER_DOWN_SEQUENCE (0x55)

#define	AXP8191_WAKEUP_CTRL_VOFF_SET (0x56)

#define	AXP8191_POWERON_LEVEL_POWEROF_SET (0x57)

#define	AXP8191_AUTO_SLEEP_CFG1 (0x58)

#define	AXP8191_AUTO_SLEEP_CFG2 (0x59)

#define	AXP8191_AUTO_SLEEP_CFG3 (0x5A)

#define	AXP8191_AUTO_SLEEP_CFG4 (0x5B)

#define	AXP8191_AUTO_SLEEP_CFG5 (0x5C)

#define	AXP8191_AUTO_SLEEP_CFG6 (0x5D)

#define	AXP8191_TS_CTRL (0x60)

#define	AXP8191_TS_HYSL2H (0x61)

#define	AXP8191_TS_HYSH2L (0x62)

#define	AXP8191_VLTF_WORK (0x63)

#define	AXP8191_VHTF_WORK (0x64)

#define	AXP8191_TS_ADC_EN_DATA_H (0x65)

#define	AXP8191_TS_ADC_DATA_L (0x66)

#define	AXP8191_TDIE_ADC_EN_DATA_H (0x67)

#define	AXP8191_TDIE_ADC_DATA_L (0x68)

#define	AXP8191_GPADC_EN_DATA_H (0x69)

#define	AXP8191_GPADC_DATA_L (0x6A)

#define	AXP8191_PS_ADC_EN_DATA_H (0x6B)

#define	AXP8191_PS_ADC_DATA_L (0x6C)

#define	AXP8191_CHANNEL_DEBUG_ADC_SEL (0x6D)

#define	AXP8191_ADC_CTL (0x6E)

#define	AXP8191_ADC_CTL (0x6E)

#define	AXP8191_GPIO_FUNC_CTL (0x70)

#define	AXP8191_GPIO_INPUT_CTL (0x71)

#define	AXP8191_GPIO_OUPUT_CTL (0x72)

#define	AXP8191_PWM_CTL1 (0x73)

#define	AXP8191_PWM_CTL2 (0x74)

#define	AXP8191_PWM_CTL3 (0x75)

#define	AXP8191_BACKUP_BAT_CHARGE_CTL (0x76)

#define	AXP8191_WATCHDOG_CFG (0x77)

#define	AXP8191_WRITE_LOCK_F1 (0xF0)

#define	AXP8191_EFUSE_CTL (0xF1)

#define	AXP8191_VREF (0xF2)

#define	AXP8191_SCL_SDA_CFG (0xF3)

#define	AXP8191_REG_ADD_EXT (0xFF)

#define	AXP8191_COMMOM_CFG1 (0x100)

#define	AXP8191_COMMOM_CFG2 (0x101)

#define	AXP8191_COMMOM_CFG3 (0x102)

#define	AXP8191_COMMOM_CFG4 (0x103)

#define	AXP8191_DCDC1VOL_DEFAULT_SET (0x104)

#define	AXP8191_DCDC2VOL_DEFAULT_SET (0x105)

#define	AXP8191_DCDC3VOL_DEFAULT_SET (0x106)

#define	AXP8191_DCDC4VOL_DEFAULT_SET (0x107)

#define	AXP8191_DCDC5VOL_DEFAULT_SET (0x108)

#define	AXP8191_DCDC6VOL_DEFAULT_SET (0x109)

#define	AXP8191_DCDC7VOL_DEFAULT_SET (0x10A)

#define	AXP8191_DCDC8VOL_DEFAULT_SET (0x10B)

#define	AXP8191_DCDC9VOL_DEFAULT_SET (0x10C)

#define	AXP8191_ALDO1_ALDO2_VOL_DEFAULT_SET (0x10D)

#define	AXP8191_ALDO3_ALDO4_VOL_DEFAULT_SET (0x10E)

#define	AXP8191_ALDO5_ALDO6_VOL_DEFAULT_SET (0x10F)

#define	AXP8191_BLDO1_BLDO2_VOL_DEFAULT_SET (0x110)

#define	AXP8191_BLDO3_BLDO4_VOL_DEFAULT_SET (0x111)

#define	AXP8191_BLDO5_CLDO1_VOL_DEFAULT_SET (0x112)

#define	AXP8191_CLDO2_CLDO3_VOL_DEFAULT_SET (0x113)

#define	AXP8191_CLDO4_CLDO5_VOL_DEFAULT_SET (0x114)

#define	AXP8191_DLDO1_CLDO2_VOL_DEFAULT_SET (0x115)

#define	AXP8191_DLDO3_CLDO4_VOL_DEFAULT_SET (0x116)

#define	AXP8191_DLDO5_CLDO6_VOL_DEFAULT_SET (0x117)

#define	AXP8191_ELDO1_ELDO2_VOL_DEFAULT_SET (0x118)

#define	AXP8191_ELDO3_ELDO4_VOL_DEFAULT_SET (0x119)

#define	AXP8191_ELDO5_ELDO6_VOL_DEFAULT_SET (0x11A)

#define	AXP8191_DC8_OUTPUT_SET (0x12A)

#define	AXP8191_RTC_DCXO_CTL_VOFF (0x12C)

#define	AXP8191_DCDC_OC (0x12D)

#define	AXP8191_FANOUT_SEQ_TRIM (0x12E)

#define	AXP8191_VREF_VRPN_TUNING (0x12F)

#define	AXP8191_VREF_VOLTAGE_TUNING (0x130)

#define	AXP8191_BIAS_TUNING (0x131)

#define	AXP8191_FREQUENCY_TUNING (0x132)

#define	AXP8191_ADC_TUNING (0x133)

#define	AXP8191_DCDC_TRIM1 (0x135)

#define	AXP8191_DCDC_TRIM2 (0x136)

#define	AXP8191_PAGE_SELECT (0x137)

#define	AXP8191_TEST_MODE_CTL1 (0x180)

#define	AXP8191_TEST_MODE_CTL2 (0x181)

#define	AXP8191_TEST_MODE_CTL3 (0x188)

#define	AXP8191_DCDC_DEBUG1 (0x18A)

#define	AXP8191_DCDC_DEBUG2 (0x18B)

#define	AXP8191_DCDC_DEBUG3 (0x18C)

#define	AXP8191_DCDC_DEBUG4 (0x18D)

Macro Definition Documentation

◆ AXP8191_ADC_CTL [1/2]

#define AXP8191_ADC_CTL (0x6E)

◆ AXP8191_ADC_CTL [2/2]

#define AXP8191_ADC_CTL (0x6E)

◆ AXP8191_ADC_TUNING

#define AXP8191_ADC_TUNING (0x133)

◆ AXP8191_ALDO1_ALDO2_VOL_DEFAULT_SET

#define AXP8191_ALDO1_ALDO2_VOL_DEFAULT_SET (0x10D)

◆ AXP8191_ALDO1OUT_VOL

#define AXP8191_ALDO1OUT_VOL (0x24)

◆ AXP8191_ALDO2OUT_VOL

#define AXP8191_ALDO2OUT_VOL (0x25)

◆ AXP8191_ALDO3_ALDO4_VOL_DEFAULT_SET

#define AXP8191_ALDO3_ALDO4_VOL_DEFAULT_SET (0x10E)

◆ AXP8191_ALDO3OUT_VOL

#define AXP8191_ALDO3OUT_VOL (0x26)

◆ AXP8191_ALDO4OUT_VOL

#define AXP8191_ALDO4OUT_VOL (0x27)

◆ AXP8191_ALDO5_ALDO6_VOL_DEFAULT_SET

#define AXP8191_ALDO5_ALDO6_VOL_DEFAULT_SET (0x10F)

◆ AXP8191_ALDO5OUT_VOL

#define AXP8191_ALDO5OUT_VOL (0x28)

◆ AXP8191_ALDO6OUT_VOL

#define AXP8191_ALDO6OUT_VOL (0x29)

◆ AXP8191_AUTO_SLEEP_CFG1

#define AXP8191_AUTO_SLEEP_CFG1 (0x58)

◆ AXP8191_AUTO_SLEEP_CFG2

#define AXP8191_AUTO_SLEEP_CFG2 (0x59)

◆ AXP8191_AUTO_SLEEP_CFG3

#define AXP8191_AUTO_SLEEP_CFG3 (0x5A)

◆ AXP8191_AUTO_SLEEP_CFG4

#define AXP8191_AUTO_SLEEP_CFG4 (0x5B)

◆ AXP8191_AUTO_SLEEP_CFG5

#define AXP8191_AUTO_SLEEP_CFG5 (0x5C)

◆ AXP8191_AUTO_SLEEP_CFG6

#define AXP8191_AUTO_SLEEP_CFG6 (0x5D)

◆ AXP8191_BACKUP_BAT_CHARGE_CTL

#define AXP8191_BACKUP_BAT_CHARGE_CTL (0x76)

◆ AXP8191_BIAS_TUNING

#define AXP8191_BIAS_TUNING (0x131)

◆ AXP8191_BLDO1_BLDO2_VOL_DEFAULT_SET

#define AXP8191_BLDO1_BLDO2_VOL_DEFAULT_SET (0x110)

◆ AXP8191_BLDO1OUT_VOL

#define AXP8191_BLDO1OUT_VOL (0x2A)

◆ AXP8191_BLDO2OUT_VOL

#define AXP8191_BLDO2OUT_VOL (0x2B)

◆ AXP8191_BLDO3_BLDO4_VOL_DEFAULT_SET

#define AXP8191_BLDO3_BLDO4_VOL_DEFAULT_SET (0x111)

◆ AXP8191_BLDO3OUT_VOL

#define AXP8191_BLDO3OUT_VOL (0x2C)

◆ AXP8191_BLDO4OUT_VOL

#define AXP8191_BLDO4OUT_VOL (0x2D)

◆ AXP8191_BLDO5_CLDO1_VOL_DEFAULT_SET

#define AXP8191_BLDO5_CLDO1_VOL_DEFAULT_SET (0x112)

◆ AXP8191_BLDO5OUT_VOL

#define AXP8191_BLDO5OUT_VOL (0x2E)

◆ AXP8191_CHANNEL_DEBUG_ADC_SEL

#define AXP8191_CHANNEL_DEBUG_ADC_SEL (0x6D)

◆ AXP8191_CHIP_ID

#define AXP8191_CHIP_ID (0x0E)

◆ AXP8191_CHIP_VER

#define AXP8191_CHIP_VER (0x0F)

◆ AXP8191_CLDO1OUT_VOL

#define AXP8191_CLDO1OUT_VOL (0x2F)

◆ AXP8191_CLDO2_CLDO3_VOL_DEFAULT_SET

#define AXP8191_CLDO2_CLDO3_VOL_DEFAULT_SET (0x113)

◆ AXP8191_CLDO2OUT_VOL

#define AXP8191_CLDO2OUT_VOL (0x30)

◆ AXP8191_CLDO3OUT_VOL

#define AXP8191_CLDO3OUT_VOL (0x31)

◆ AXP8191_CLDO4_CLDO5_VOL_DEFAULT_SET

#define AXP8191_CLDO4_CLDO5_VOL_DEFAULT_SET (0x114)

◆ AXP8191_CLDO4OUT_VOL

#define AXP8191_CLDO4OUT_VOL (0x32)

◆ AXP8191_CLDO5OUT_VOL

#define AXP8191_CLDO5OUT_VOL (0x33)

◆ AXP8191_COMMOM_CFG1

#define AXP8191_COMMOM_CFG1 (0x100)

◆ AXP8191_COMMOM_CFG2

#define AXP8191_COMMOM_CFG2 (0x101)

◆ AXP8191_COMMOM_CFG3

#define AXP8191_COMMOM_CFG3 (0x102)

◆ AXP8191_COMMOM_CFG4

#define AXP8191_COMMOM_CFG4 (0x103)

◆ AXP8191_DC1OUT_VOL

#define AXP8191_DC1OUT_VOL (0x12)

◆ AXP8191_DC2OUT_VOL

#define AXP8191_DC2OUT_VOL (0x13)

◆ AXP8191_DC3OUT_VOL

#define AXP8191_DC3OUT_VOL (0x14)

◆ AXP8191_DC4OUT_VOL

#define AXP8191_DC4OUT_VOL (0x15)

◆ AXP8191_DC5OUT_VOL

#define AXP8191_DC5OUT_VOL (0x16)

◆ AXP8191_DC6OUT_VOL

#define AXP8191_DC6OUT_VOL (0x17)

◆ AXP8191_DC7OUT_VOL

#define AXP8191_DC7OUT_VOL (0x18)

◆ AXP8191_DC8_OUTPUT_SET

#define AXP8191_DC8_OUTPUT_SET (0x12A)

◆ AXP8191_DC8OUT_VOL

#define AXP8191_DC8OUT_VOL (0x19)

◆ AXP8191_DC8SET_STATUS

#define AXP8191_DC8SET_STATUS (0x1F)

◆ AXP8191_DC9OUT_VOL

#define AXP8191_DC9OUT_VOL (0x1A)

◆ AXP8191_DCDC1VOL_DEFAULT_SET

#define AXP8191_DCDC1VOL_DEFAULT_SET (0x104)

◆ AXP8191_DCDC2VOL_DEFAULT_SET

#define AXP8191_DCDC2VOL_DEFAULT_SET (0x105)

◆ AXP8191_DCDC3VOL_DEFAULT_SET

#define AXP8191_DCDC3VOL_DEFAULT_SET (0x106)

◆ AXP8191_DCDC4VOL_DEFAULT_SET

#define AXP8191_DCDC4VOL_DEFAULT_SET (0x107)

◆ AXP8191_DCDC5VOL_DEFAULT_SET

#define AXP8191_DCDC5VOL_DEFAULT_SET (0x108)

◆ AXP8191_DCDC6VOL_DEFAULT_SET

#define AXP8191_DCDC6VOL_DEFAULT_SET (0x109)

◆ AXP8191_DCDC7VOL_DEFAULT_SET

#define AXP8191_DCDC7VOL_DEFAULT_SET (0x10A)

◆ AXP8191_DCDC8VOL_DEFAULT_SET

#define AXP8191_DCDC8VOL_DEFAULT_SET (0x10B)

◆ AXP8191_DCDC9VOL_DEFAULT_SET

#define AXP8191_DCDC9VOL_DEFAULT_SET (0x10C)

◆ AXP8191_DCDC_DEBUG1

#define AXP8191_DCDC_DEBUG1 (0x18A)

◆ AXP8191_DCDC_DEBUG2

#define AXP8191_DCDC_DEBUG2 (0x18B)

◆ AXP8191_DCDC_DEBUG3

#define AXP8191_DCDC_DEBUG3 (0x18C)

◆ AXP8191_DCDC_DEBUG4

#define AXP8191_DCDC_DEBUG4 (0x18D)

◆ AXP8191_DCDC_MODE_CTL1

#define AXP8191_DCDC_MODE_CTL1 (0x1B)

◆ AXP8191_DCDC_MODE_CTL2

#define AXP8191_DCDC_MODE_CTL2 (0x1C)

◆ AXP8191_DCDC_MODE_CTL3

#define AXP8191_DCDC_MODE_CTL3 (0x1D)

◆ AXP8191_DCDC_MODE_CTL4

#define AXP8191_DCDC_MODE_CTL4 (0x1E)

◆ AXP8191_DCDC_OC

#define AXP8191_DCDC_OC (0x12D)

◆ AXP8191_DCDC_POWER_ON_OFF_CTL1

#define AXP8191_DCDC_POWER_ON_OFF_CTL1 (0x10)

◆ AXP8191_DCDC_POWER_ON_OFF_CTL2

#define AXP8191_DCDC_POWER_ON_OFF_CTL2 (0x11)

◆ AXP8191_DCDC_TRIM1

#define AXP8191_DCDC_TRIM1 (0x135)

◆ AXP8191_DCDC_TRIM2

#define AXP8191_DCDC_TRIM2 (0x136)

◆ AXP8191_DLDO1_CLDO2_VOL_DEFAULT_SET

#define AXP8191_DLDO1_CLDO2_VOL_DEFAULT_SET (0x115)

◆ AXP8191_DLDO1OUT_VOL

#define AXP8191_DLDO1OUT_VOL (0x34)

◆ AXP8191_DLDO2OUT_VOL

#define AXP8191_DLDO2OUT_VOL (0x35)

◆ AXP8191_DLDO3_CLDO4_VOL_DEFAULT_SET

#define AXP8191_DLDO3_CLDO4_VOL_DEFAULT_SET (0x116)

◆ AXP8191_DLDO3OUT_VOL

#define AXP8191_DLDO3OUT_VOL (0x36)

◆ AXP8191_DLDO4OUT_VOL

#define AXP8191_DLDO4OUT_VOL (0x37)

◆ AXP8191_DLDO5_CLDO6_VOL_DEFAULT_SET

#define AXP8191_DLDO5_CLDO6_VOL_DEFAULT_SET (0x117)

◆ AXP8191_DLDO5OUT_VOL

#define AXP8191_DLDO5OUT_VOL (0x38)

◆ AXP8191_DLDO6OUT_VOL

#define AXP8191_DLDO6OUT_VOL (0x39)

◆ AXP8191_EFUSE_CTL

#define AXP8191_EFUSE_CTL (0xF1)

◆ AXP8191_ELDO1_ELDO2_VOL_DEFAULT_SET

#define AXP8191_ELDO1_ELDO2_VOL_DEFAULT_SET (0x118)

◆ AXP8191_ELDO1OUT_VOL

#define AXP8191_ELDO1OUT_VOL (0x3A)

◆ AXP8191_ELDO2OUT_VOL

#define AXP8191_ELDO2OUT_VOL (0x3B)

◆ AXP8191_ELDO3_ELDO4_VOL_DEFAULT_SET

#define AXP8191_ELDO3_ELDO4_VOL_DEFAULT_SET (0x119)

◆ AXP8191_ELDO3OUT_VOL

#define AXP8191_ELDO3OUT_VOL (0x3C)

◆ AXP8191_ELDO4OUT_VOL

#define AXP8191_ELDO4OUT_VOL (0x3D)

◆ AXP8191_ELDO5_ELDO6_VOL_DEFAULT_SET

#define AXP8191_ELDO5_ELDO6_VOL_DEFAULT_SET (0x11A)

◆ AXP8191_ELDO5OUT_VOL

#define AXP8191_ELDO5OUT_VOL (0x3E)

◆ AXP8191_ELDO6OUT_VOL

#define AXP8191_ELDO6OUT_VOL (0x3F)

◆ AXP8191_FANOUT_SEQ_TRIM

#define AXP8191_FANOUT_SEQ_TRIM (0x12E)

◆ AXP8191_FREQUENCY_TUNING

#define AXP8191_FREQUENCY_TUNING (0x132)

◆ AXP8191_GPADC_DATA_L

#define AXP8191_GPADC_DATA_L (0x6A)

◆ AXP8191_GPADC_EN_DATA_H

#define AXP8191_GPADC_EN_DATA_H (0x69)

◆ AXP8191_GPIO_FUNC_CTL

#define AXP8191_GPIO_FUNC_CTL (0x70)

◆ AXP8191_GPIO_INPUT_CTL

#define AXP8191_GPIO_INPUT_CTL (0x71)

◆ AXP8191_GPIO_OUPUT_CTL

#define AXP8191_GPIO_OUPUT_CTL (0x72)

◆ AXP8191_IC_TYPE

#define AXP8191_IC_TYPE (0x03)

◆ AXP8191_IRQ_ENABLE1

#define AXP8191_IRQ_ENABLE1 (0x40)

◆ AXP8191_IRQ_ENABLE2

#define AXP8191_IRQ_ENABLE2 (0x41)

◆ AXP8191_IRQ_ENABLE3

#define AXP8191_IRQ_ENABLE3 (0x42)

◆ AXP8191_IRQ_ENABLE4

#define AXP8191_IRQ_ENABLE4 (0x43)

◆ AXP8191_IRQ_STATUS1

#define AXP8191_IRQ_STATUS1 (0x48)

◆ AXP8191_IRQ_STATUS2

#define AXP8191_IRQ_STATUS2 (0x49)

◆ AXP8191_IRQ_STATUS3

#define AXP8191_IRQ_STATUS3 (0x4A)

◆ AXP8191_IRQ_STATUS4

#define AXP8191_IRQ_STATUS4 (0x4B)

◆ AXP8191_LDO_POWER_ON_OFF_CTL1

#define AXP8191_LDO_POWER_ON_OFF_CTL1 (0x20)

◆ AXP8191_LDO_POWER_ON_OFF_CTL2

#define AXP8191_LDO_POWER_ON_OFF_CTL2 (0x21)

◆ AXP8191_LDO_POWER_ON_OFF_CTL3

#define AXP8191_LDO_POWER_ON_OFF_CTL3 (0x22)

◆ AXP8191_LDO_POWER_ON_OFF_CTL4

#define AXP8191_LDO_POWER_ON_OFF_CTL4 (0x23)

◆ AXP8191_OVP_DISCHARGE_TEMPERATURE_CFG

#define AXP8191_OVP_DISCHARGE_TEMPERATURE_CFG (0x54)

◆ AXP8191_PAGE_SELECT

#define AXP8191_PAGE_SELECT (0x137)

◆ AXP8191_POWER_DISABLE_POWER_DOWN_SEQUENCE

#define AXP8191_POWER_DISABLE_POWER_DOWN_SEQUENCE (0x55)

◆ AXP8191_POWER_OFF_SOURCE_INDIVATION

#define AXP8191_POWER_OFF_SOURCE_INDIVATION (0x51)

◆ AXP8191_POWER_ON_OFF_SOURCE_EN1

#define AXP8191_POWER_ON_OFF_SOURCE_EN1 (0x52)

◆ AXP8191_POWER_ON_OFF_SOURCE_EN2

#define AXP8191_POWER_ON_OFF_SOURCE_EN2 (0x53)

◆ AXP8191_POWER_ON_OFF_SOURCE_INDIVATION

#define AXP8191_POWER_ON_OFF_SOURCE_INDIVATION (0x50)

◆ AXP8191_POWERON_LEVEL_POWEROF_SET

#define AXP8191_POWERON_LEVEL_POWEROF_SET (0x57)

◆ AXP8191_PS_ADC_DATA_L

#define AXP8191_PS_ADC_DATA_L (0x6C)

◆ AXP8191_PS_ADC_EN_DATA_H

#define AXP8191_PS_ADC_EN_DATA_H (0x6B)

◆ AXP8191_PWM_CTL1

#define AXP8191_PWM_CTL1 (0x73)

◆ AXP8191_PWM_CTL2

#define AXP8191_PWM_CTL2 (0x74)

◆ AXP8191_PWM_CTL3

#define AXP8191_PWM_CTL3 (0x75)

◆ AXP8191_REG_ADD_EXT

#define AXP8191_REG_ADD_EXT (0xFF)

◆ AXP8191_RTC_DCXO_CTL_VOFF

#define AXP8191_RTC_DCXO_CTL_VOFF (0x12C)

◆ AXP8191_RUNTIME_ADDR

#define AXP8191_RUNTIME_ADDR (0x36)

◆ AXP8191_SCL_SDA_CFG

#define AXP8191_SCL_SDA_CFG (0xF3)

◆ AXP8191_TDIE_ADC_DATA_L

#define AXP8191_TDIE_ADC_DATA_L (0x68)

◆ AXP8191_TDIE_ADC_EN_DATA_H

#define AXP8191_TDIE_ADC_EN_DATA_H (0x67)

◆ AXP8191_TEST_MODE_CTL1

#define AXP8191_TEST_MODE_CTL1 (0x180)

◆ AXP8191_TEST_MODE_CTL2

#define AXP8191_TEST_MODE_CTL2 (0x181)

◆ AXP8191_TEST_MODE_CTL3

#define AXP8191_TEST_MODE_CTL3 (0x188)

◆ AXP8191_TS_ADC_DATA_L

#define AXP8191_TS_ADC_DATA_L (0x66)

◆ AXP8191_TS_ADC_EN_DATA_H

#define AXP8191_TS_ADC_EN_DATA_H (0x65)

◆ AXP8191_TS_CTRL

#define AXP8191_TS_CTRL (0x60)

◆ AXP8191_TS_HYSH2L

#define AXP8191_TS_HYSH2L (0x62)

◆ AXP8191_TS_HYSL2H

#define AXP8191_TS_HYSL2H (0x61)

◆ AXP8191_VHTF_WORK

#define AXP8191_VHTF_WORK (0x64)

◆ AXP8191_VLTF_WORK

#define AXP8191_VLTF_WORK (0x63)

◆ AXP8191_VREF

#define AXP8191_VREF (0xF2)

◆ AXP8191_VREF_VOLTAGE_TUNING

#define AXP8191_VREF_VOLTAGE_TUNING (0x130)

◆ AXP8191_VREF_VRPN_TUNING

#define AXP8191_VREF_VRPN_TUNING (0x12F)

◆ AXP8191_WAKEUP_CTRL_VOFF_SET

#define AXP8191_WAKEUP_CTRL_VOFF_SET (0x56)

◆ AXP8191_WATCHDOG_CFG

#define AXP8191_WATCHDOG_CFG (0x77)

◆ AXP8191_WRITE_LOCK_F1

#define AXP8191_WRITE_LOCK_F1 (0xF0)

Macros
