sys-sdcard.h File Reference
#include <io.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include "sys-sdhci.h"
#include "log.h"

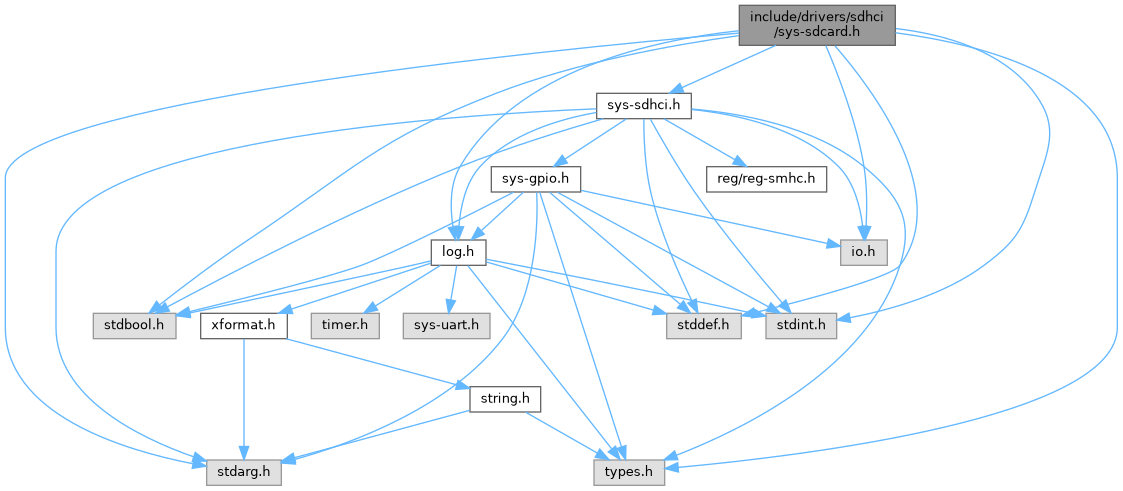

Include dependency graph for sys-sdcard.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  sdmmc_t

struct  sdmmc_pdata_t


Enumerations

enum  {
  MMC_GO_IDLE_STATE = 0 , MMC_SEND_OP_COND = 1 , MMC_ALL_SEND_CID = 2 , MMC_SET_RELATIVE_ADDR = 3 ,
  MMC_SET_DSR = 4 , MMC_SWITCH = 6 , MMC_SELECT_CARD = 7 , MMC_SEND_EXT_CSD = 8 ,
  MMC_SEND_CSD = 9 , MMC_SEND_CID = 10 , MMC_READ_DAT_UNTIL_STOP = 11 , MMC_STOP_TRANSMISSION = 12 ,
  MMC_SEND_STATUS = 13 , MMC_GO_INACTIVE_STATE = 15 , MMC_SPI_READ_OCR = 58 , MMC_SPI_CRC_ON_OFF = 59 ,
  MMC_SET_BLOCKLEN = 16 , MMC_READ_SINGLE_BLOCK = 17 , MMC_READ_MULTIPLE_BLOCK = 18 , MMC_WRITE_DAT_UNTIL_STOP = 20 ,
  MMC_SET_BLOCK_COUNT = 23 , MMC_WRITE_SINGLE_BLOCK = 24 , MMC_WRITE_MULTIPLE_BLOCK = 25 , MMC_PROGRAM_CID = 26 ,
  MMC_PROGRAM_CSD = 27 , MMC_ERASE_GROUP_START = 35 , MMC_ERASE_GROUP_END = 36 , MMC_ERASE = 38 ,
  MMC_SET_WRITE_PROT = 28 , MMC_CLR_WRITE_PROT = 29 , MMC_SEND_WRITE_PROT = 30 , MMC_LOCK_UNLOCK = 42 ,
  MMC_APP_CMD = 55 , MMC_GEN_CMD = 56 , MMC_FAST_IO = 39 , MMC_GO_IRQ_STATE = 40
}

enum  {
  SD_CMD_SEND_RELATIVE_ADDR = 3 , SD_CMD_SWITCH_FUNC = 6 , SD_CMD_SEND_IF_COND = 8 , SD_CMD_APP_SET_BUS_WIDTH = 6 ,
  SD_CMD_ERASE_WR_BLK_START = 32 , SD_CMD_ERASE_WR_BLK_END = 33 , SD_CMD_APP_SEND_OP_COND = 41 , SD_CMD_APP_SEND_SCR = 51
}

enum  {
  MMC_RSP_PRESENT = (1 << 0) , MMC_RSP_136 = (1 << 1) , MMC_RSP_CRC = (1 << 2) , MMC_RSP_BUSY = (1 << 3) ,
  MMC_RSP_OPCODE = (1 << 4)
}

enum  {
  MMC_RSP_NONE = (0 << 24) , MMC_RSP_R1 = (1 << 24) | (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE) , MMC_RSP_R1B = (1 << 24) | (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE | MMC_RSP_BUSY) , MMC_RSP_R2 = (2 << 24) | (MMC_RSP_PRESENT | MMC_RSP_136 | MMC_RSP_CRC) ,
  MMC_RSP_R3 = (3 << 24) | (MMC_RSP_PRESENT) , MMC_RSP_R4 = (4 << 24) | (MMC_RSP_PRESENT) , MMC_RSP_R5 = (5 << 24) | (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE) , MMC_RSP_R6 = (6 << 24) | (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE) ,
  MMC_RSP_R7 = (7 << 24) | (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE)
}

enum  {
  MMC_STATUS_IDLE = 0 , MMC_STATUS_READY = 1 , MMC_STATUS_IDENT = 2 , MMC_STATUS_STBY = 3 ,
  MMC_STATUS_TRAN = 4 , MMC_STATUS_DATA = 5 , MMC_STATUS_RCV = 6 , MMC_STATUS_PRG = 7 ,
  MMC_STATUS_DIS = 8 , MMC_STATUS_BTST = 9 , MMC_STATUS_SLP = 10
}

enum  { OCR_BUSY = 0x80000000 , OCR_HCS = 0x40000000 , OCR_VOLTAGE_MASK = 0x00ffff80 , OCR_ACCESS_MODE = 0x60000000 }

enum  { MMC_DATA_READ = (1 << 0) , MMC_DATA_WRITE = (1 << 1) }

enum  { MMC_VDD_27_36 = (1 << 0) , MMC_VDD_165_195 = (1 << 1) }

enum  { MMC_BUS_WIDTH_1 = 1 , MMC_BUS_WIDTH_4 = 2 , MMC_BUS_WIDTH_8 = 3 }

enum  { MMC_CONTROLLER_0 = 0 , MMC_CONTROLLER_1 = 1 , MMC_CONTROLLER_2 = 2 }

enum  {
  SD_VERSION_SD = 0x20000 , SD_VERSION_3 = (SD_VERSION_SD | 0x300) , SD_VERSION_2 = (SD_VERSION_SD | 0x200) , SD_VERSION_1_0 = (SD_VERSION_SD | 0x100) ,
  SD_VERSION_1_10 = (SD_VERSION_SD | 0x10a) , MMC_VERSION_MMC = 0x10000 , MMC_VERSION_UNKNOWN = (MMC_VERSION_MMC) , MMC_VERSION_1_2 = (MMC_VERSION_MMC | 0x102) ,
  MMC_VERSION_1_4 = (MMC_VERSION_MMC | 0x104) , MMC_VERSION_2_2 = (MMC_VERSION_MMC | 0x202) , MMC_VERSION_3 = (MMC_VERSION_MMC | 0x300) , MMC_VERSION_4 = (MMC_VERSION_MMC | 0x400) ,
  MMC_VERSION_4_1 = (MMC_VERSION_MMC | 0x401) , MMC_VERSION_4_2 = (MMC_VERSION_MMC | 0x402) , MMC_VERSION_4_3 = (MMC_VERSION_MMC | 0x403) , MMC_VERSION_4_41 = (MMC_VERSION_MMC | 0x429) ,
  MMC_VERSION_4_5 = (MMC_VERSION_MMC | 0x405) , MMC_VERSION_5_0 = (MMC_VERSION_MMC | 0x500) , MMC_VERSION_5_1 = (MMC_VERSION_MMC | 0x501)
}


Functions

int sdmmc_init (sdmmc_pdata_t *data, sdhci_t *hci)
 Initialize the SDMMC controller with the specified platform data and SDHCI driver.

uint64_t sdmmc_blk_read (sdmmc_pdata_t *data, uint8_t *buf, uint64_t blkno, uint64_t blkcnt)
 Read data from the SDMMC card into the provided buffer.


Variables

sdmmc_pdata_t card0
 External declaration of the 'card0' SDMMC platform data structure.


Enumeration Type Documentation

◆ anonymous enum

anonymous enum
Enumerator
MMC_GO_IDLE_STATE
MMC_SEND_OP_COND
MMC_ALL_SEND_CID
MMC_SET_RELATIVE_ADDR
MMC_SET_DSR
MMC_SWITCH
MMC_SELECT_CARD
MMC_SEND_EXT_CSD
MMC_SEND_CSD
MMC_SEND_CID
MMC_READ_DAT_UNTIL_STOP
MMC_STOP_TRANSMISSION
MMC_SEND_STATUS
MMC_GO_INACTIVE_STATE
MMC_SPI_READ_OCR
MMC_SPI_CRC_ON_OFF
MMC_SET_BLOCKLEN
MMC_READ_SINGLE_BLOCK
MMC_READ_MULTIPLE_BLOCK
MMC_WRITE_DAT_UNTIL_STOP
MMC_SET_BLOCK_COUNT
MMC_WRITE_SINGLE_BLOCK
MMC_WRITE_MULTIPLE_BLOCK
MMC_PROGRAM_CID
MMC_PROGRAM_CSD
MMC_ERASE_GROUP_START
MMC_ERASE_GROUP_END
MMC_ERASE
MMC_SET_WRITE_PROT
MMC_CLR_WRITE_PROT
MMC_SEND_WRITE_PROT
MMC_LOCK_UNLOCK
MMC_APP_CMD
MMC_GEN_CMD
MMC_FAST_IO
MMC_GO_IRQ_STATE

◆ anonymous enum

anonymous enum
Enumerator
SD_CMD_SEND_RELATIVE_ADDR
SD_CMD_SWITCH_FUNC
SD_CMD_SEND_IF_COND
SD_CMD_APP_SET_BUS_WIDTH
SD_CMD_ERASE_WR_BLK_START
SD_CMD_ERASE_WR_BLK_END
SD_CMD_APP_SEND_OP_COND
SD_CMD_APP_SEND_SCR

◆ anonymous enum

anonymous enum
Enumerator
MMC_RSP_PRESENT
MMC_RSP_136
MMC_RSP_CRC
MMC_RSP_BUSY
MMC_RSP_OPCODE

◆ anonymous enum

anonymous enum
Enumerator
MMC_RSP_NONE
MMC_RSP_R1
MMC_RSP_R1B
MMC_RSP_R2
MMC_RSP_R3
MMC_RSP_R4
MMC_RSP_R5
MMC_RSP_R6
MMC_RSP_R7

◆ anonymous enum

anonymous enum
Enumerator
MMC_STATUS_IDLE
MMC_STATUS_READY
MMC_STATUS_IDENT
MMC_STATUS_STBY
MMC_STATUS_TRAN
MMC_STATUS_DATA
MMC_STATUS_RCV
MMC_STATUS_PRG
MMC_STATUS_DIS
MMC_STATUS_BTST
MMC_STATUS_SLP

◆ anonymous enum

anonymous enum
Enumerator
OCR_BUSY
OCR_HCS
OCR_VOLTAGE_MASK
OCR_ACCESS_MODE

◆ anonymous enum

anonymous enum
Enumerator
MMC_DATA_READ
MMC_DATA_WRITE

◆ anonymous enum

anonymous enum
Enumerator
MMC_VDD_27_36
MMC_VDD_165_195

◆ anonymous enum

anonymous enum
Enumerator
MMC_BUS_WIDTH_1
MMC_BUS_WIDTH_4
MMC_BUS_WIDTH_8

◆ anonymous enum

anonymous enum
Enumerator
MMC_CONTROLLER_0
MMC_CONTROLLER_1
MMC_CONTROLLER_2

◆ anonymous enum

anonymous enum
Enumerator
SD_VERSION_SD
SD_VERSION_3
SD_VERSION_2
SD_VERSION_1_0
SD_VERSION_1_10
MMC_VERSION_MMC
MMC_VERSION_UNKNOWN
MMC_VERSION_1_2
MMC_VERSION_1_4
MMC_VERSION_2_2
MMC_VERSION_3
MMC_VERSION_4
MMC_VERSION_4_1
MMC_VERSION_4_2
MMC_VERSION_4_3
MMC_VERSION_4_41
MMC_VERSION_4_5
MMC_VERSION_5_0
MMC_VERSION_5_1

Function Documentation

◆ sdmmc_blk_read()

uint64_t sdmmc_blk_read ( sdmmc_pdata_t *  data,
uint8_t *  buf,
uint64_t  blkno,
uint64_t  blkcnt
)

Read data from the SDMMC card into the provided buffer.

Parameters
dataPointer to the SDMMC platform data structure.
bufPointer to the destination buffer to store the read data.
blknoThe starting block number to read from.
blkcntThe number of blocks to read.
Returns
The total number of bytes read, or an error code if failed.

◆ sdmmc_init()

int sdmmc_init ( sdmmc_pdata_t *  data,
sdhci_t *  hci
)

Initialize the SDMMC controller with the specified platform data and SDHCI driver.

Parameters
dataPointer to the SDMMC platform data structure.
hciPointer to the SDHCI driver instance.
Returns
0 if successful, or an error code if failed.

Variable Documentation

◆ card0

sdmmc_pdata_t card0
extern

External declaration of the 'card0' SDMMC platform data structure.
