usb.h File Reference

#include "reg/reg-usb.h"

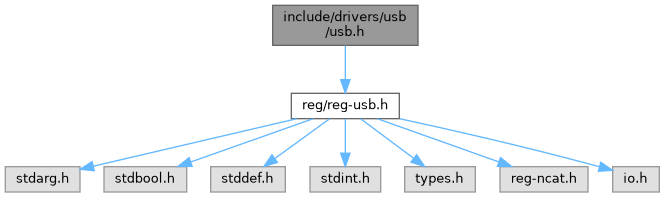

Include dependency graph for usb.h:

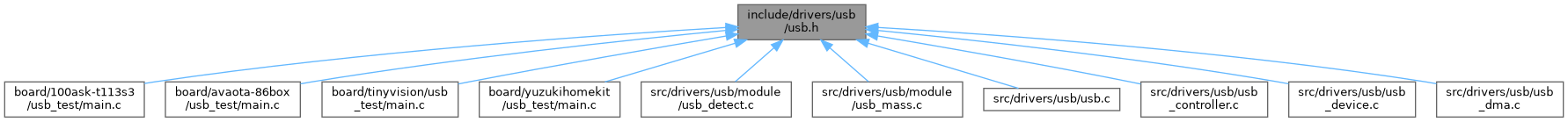

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	usb_endpoint_descriptor
struct	usb_interface_descriptor
struct	usb_configuration_descriptor
struct	usb_device_descriptor
struct	usb_qualifier_descriptor
struct	usb_string_descriptor
struct	usb_generic_descriptor
struct	usb_device_request
struct	sunxi_udc
struct	sunxi_ubuf
struct	sunxi_usb_setup_req_s

Macros
#define	USB_DT_DEVICE   0x01
#define	USB_DT_CONFIG   0x02
#define	USB_DT_STRING   0x03
#define	USB_DT_INTERFACE   0x04
#define	USB_DT_ENDPOINT   0x05
#define	USB_DT_DEVICE_QUALIFIER   0x06
#define	USB_DT_HID   (USB_TYPE_CLASS | 0x01)
#define	USB_DT_REPORT   (USB_TYPE_CLASS | 0x02)
#define	USB_DT_PHYSICAL   (USB_TYPE_CLASS | 0x03)
#define	USB_DT_HUB   (USB_TYPE_CLASS | 0x09)
#define	USB_DT_DEVICE_SIZE   18
#define	USB_DT_CONFIG_SIZE   9
#define	USB_DT_INTERFACE_SIZE   9
#define	USB_DT_ENDPOINT_SIZE   7
#define	USB_DT_ENDPOINT_AUDIO_SIZE   9 /* Audio extension */
#define	USB_DT_HUB_NONVAR_SIZE   7
#define	USB_DT_HID_SIZE   9
#define	SUNXI_USB_DEVICE_DETECT   (1)
#define	SUNXI_USB_DEVICE_MASS   (2)
#define	sunxi_usb_module_init(name, state_init, state_exit, state_reset, standard_req_op, nonstandard_req_op, state_loop, dma_rx_isr, dma_tx_isr)    sunxi_usb_setup_req_t setup_req_##name = {state_init, state_exit, state_reset, standard_req_op, nonstandard_req_op, state_loop, dma_rx_isr, dma_tx_isr};
#define	sunxi_usb_module_reg(name)   sunxi_udev_active = &setup_req_##name
#define	sunxi_usb_module_ext(name)   extern sunxi_usb_setup_req_t setup_req_##name
#define	usb_get_bit8(bp, reg)   (read8(reg) & (1 << (bp)))
#define	usb_get_bit16(bp, reg)   (read16(reg) & (1 << (bp)))
#define	usb_get_bit32(bp, reg)   (read32(reg) & (1 << (bp)))
#define	usb_set_bit8(bp, reg)   (write8((reg), (read8(reg) | (1 << (bp)))))
#define	usb_set_bit16(bp, reg)   (write16((reg), (read16(reg) | (1 << (bp)))))
#define	usb_set_bit32(bp, reg)   (write32((reg), (read32(reg) | (1 << (bp)))))
#define	usb_clear_bit8(bp, reg)   (write8((reg), (read8(reg) & (~(1 << (bp))))))
#define	usb_clear_bit16(bp, reg)   (write16((reg), (read16(reg) & (~(1 << (bp))))))
#define	usb_clear_bit32(bp, reg)   (write32((reg), (read32(reg) & (~(1 << (bp))))))
#define	SUNXI_USB_REQ_SUCCESSED   (0)
#define	SUNXI_USB_REQ_DEVICE_NOT_SUPPORTED   (-1)
#define	SUNXI_USB_REQ_UNKNOWN_COMMAND   (-2)
#define	SUNXI_USB_REQ_UNMATCHED_COMMAND   (-3)
#define	SUNXI_USB_REQ_DATA_HUNGRY   (-4)
#define	SUNXI_USB_REQ_OP_ERR   (-5)

Typedefs
typedef struct sunxi_udc	sunxi_udc_t
typedef struct sunxi_ubuf	sunxi_ubuf_t
typedef struct sunxi_usb_setup_req_s	sunxi_usb_setup_req_t

Enumerations
enum	usb_device_speed { USB_SPEED_LOW , USB_SPEED_FULL , USB_SPEED_HIGH , USB_SPEED_RESERVED }

Functions
struct usb_endpoint_descriptor	__attribute__ ((packed))
	sunxi_usb_module_ext (SUNXI_USB_DEVICE_DETECT)
	sunxi_usb_module_ext (SUNXI_USB_DEVICE_MASS)
void	sunxi_usb_attach_module (uint32_t device_type)
	Attach a module to the USB controller.
int	sunxi_usb_init ()
	Initialize the USB controller.
void	sunxi_usb_dump (uint32_t usbc_base, uint32_t ep_index)
	Dump the USB controller registers for a specific endpoint.
void	sunxi_usb_ep_reset ()
	Reset all endpoints of the USB controller.
void	sunxi_usb_irq ()
	Handle the USB interrupt.
void	sunxi_usb_attach ()
	Attach the USB device to the USB controller.
int	sunxi_usb_extern_loop ()
	Run the USB device state machine loop once.
void	sunxi_usb_bulk_ep_reset ()
	Reset the bulk endpoints of the USB controller.
int	sunxi_usb_start_recv_by_dma (void *mem_base, uint32_t length)
	Start receiving data by DMA.
void	sunxi_usb_send_setup (uint32_t length, void *buffer)
	Send a setup packet.
int	sunxi_usb_set_address (uint32_t address)
	Set USB device address.
int	sunxi_usb_send_data (void *buffer, uint32_t buffer_size)
	Send data over USB.
int	sunxi_usb_get_ep_max (void)
	Get the maximum number of endpoints.
int	sunxi_usb_get_ep_in_type (void)
	Get the IN endpoint type.
int	sunxi_usb_get_ep_out_type (void)
	Get the OUT endpoint type.

Variables
uint8_t	bLength
uint8_t	bDescriptorType
uint8_t	bEndpointAddress
uint8_t	bmAttributes
uint16_t	wMaxPacketSize
uint8_t	bInterval
uint8_t	bInterfaceNumber
uint8_t	bAlternateSetting
uint8_t	bNumEndpoints
uint8_t	bInterfaceClass
uint8_t	bInterfaceSubClass
uint8_t	bInterfaceProtocol
uint8_t	iInterface
uint16_t	wTotalLength
uint8_t	bNumInterfaces
uint8_t	bConfigurationValue
uint8_t	iConfiguration
uint8_t	bMaxPower
uint16_t	bcdUSB
uint8_t	bDeviceClass
uint8_t	bDeviceSubClass
uint8_t	bDeviceProtocol
uint8_t	bMaxPacketSize0
uint16_t	idVendor
uint16_t	idProduct
uint16_t	bcdDevice
uint8_t	iManufacturer
uint8_t	iProduct
uint8_t	iSerialNumber
uint8_t	bNumConfigurations
uint8_t	breserved
uint16_t	wData [0]
uint8_t	bDescriptorSubtype
uint8_t	request_type
uint8_t	request
uint16_t	value
uint16_t	index
uint16_t	length

Macro Definition Documentation

SUNXI_USB_DEVICE_DETECT

#define SUNXI_USB_DEVICE_DETECT   (1)

SUNXI_USB_DEVICE_MASS

#define SUNXI_USB_DEVICE_MASS   (2)

sunxi_usb_module_ext

#define sunxi_usb_module_ext

(

name

)

extern sunxi_usb_setup_req_t setup_req_##name

sunxi_usb_module_init

#define sunxi_usb_module_init	(		name,
			state_init,
			state_exit,
			state_reset,
			standard_req_op,
			nonstandard_req_op,
			state_loop,
			dma_rx_isr,
			dma_tx_isr
	)		sunxi_usb_setup_req_t setup_req_##name = {state_init, state_exit, state_reset, standard_req_op, nonstandard_req_op, state_loop, dma_rx_isr, dma_tx_isr};

sunxi_usb_module_reg

#define sunxi_usb_module_reg

(

name

)

sunxi_udev_active = &setup_req_##name

SUNXI_USB_REQ_DATA_HUNGRY

#define SUNXI_USB_REQ_DATA_HUNGRY   (-4)

SUNXI_USB_REQ_DEVICE_NOT_SUPPORTED

#define SUNXI_USB_REQ_DEVICE_NOT_SUPPORTED   (-1)

SUNXI_USB_REQ_OP_ERR

#define SUNXI_USB_REQ_OP_ERR   (-5)

SUNXI_USB_REQ_SUCCESSED

#define SUNXI_USB_REQ_SUCCESSED   (0)

SUNXI_USB_REQ_UNKNOWN_COMMAND

#define SUNXI_USB_REQ_UNKNOWN_COMMAND   (-2)

SUNXI_USB_REQ_UNMATCHED_COMMAND

#define SUNXI_USB_REQ_UNMATCHED_COMMAND   (-3)

usb_clear_bit16

#define usb_clear_bit16	(		bp,
			reg
	)		(write16((reg), (read16(reg) & (~(1 << (bp))))))

usb_clear_bit32

#define usb_clear_bit32	(		bp,
			reg
	)		(write32((reg), (read32(reg) & (~(1 << (bp))))))

usb_clear_bit8

#define usb_clear_bit8	(		bp,
			reg
	)		(write8((reg), (read8(reg) & (~(1 << (bp))))))

USB_DT_CONFIG

#define USB_DT_CONFIG   0x02

USB_DT_CONFIG_SIZE

#define USB_DT_CONFIG_SIZE   9

USB_DT_DEVICE

#define USB_DT_DEVICE   0x01

USB_DT_DEVICE_QUALIFIER

#define USB_DT_DEVICE_QUALIFIER   0x06

USB_DT_DEVICE_SIZE

#define USB_DT_DEVICE_SIZE   18

USB_DT_ENDPOINT

#define USB_DT_ENDPOINT   0x05

USB_DT_ENDPOINT_AUDIO_SIZE

#define USB_DT_ENDPOINT_AUDIO_SIZE   9 /* Audio extension */

USB_DT_ENDPOINT_SIZE

#define USB_DT_ENDPOINT_SIZE   7

USB_DT_HID

#define USB_DT_HID   (USB_TYPE_CLASS | 0x01)

USB_DT_HID_SIZE

#define USB_DT_HID_SIZE   9

USB_DT_HUB

#define USB_DT_HUB   (USB_TYPE_CLASS | 0x09)

USB_DT_HUB_NONVAR_SIZE

#define USB_DT_HUB_NONVAR_SIZE   7

USB_DT_INTERFACE

#define USB_DT_INTERFACE   0x04

USB_DT_INTERFACE_SIZE

#define USB_DT_INTERFACE_SIZE   9

USB_DT_PHYSICAL

#define USB_DT_PHYSICAL   (USB_TYPE_CLASS | 0x03)

USB_DT_REPORT

#define USB_DT_REPORT   (USB_TYPE_CLASS | 0x02)

USB_DT_STRING

#define USB_DT_STRING   0x03

usb_get_bit16

#define usb_get_bit16	(		bp,
			reg
	)		(read16(reg) & (1 << (bp)))

usb_get_bit32

#define usb_get_bit32	(		bp,
			reg
	)		(read32(reg) & (1 << (bp)))

usb_get_bit8

#define usb_get_bit8	(		bp,
			reg
	)		(read8(reg) & (1 << (bp)))

usb_set_bit16

#define usb_set_bit16	(		bp,
			reg
	)		(write16((reg), (read16(reg) | (1 << (bp)))))

usb_set_bit32

#define usb_set_bit32	(		bp,
			reg
	)		(write32((reg), (read32(reg) | (1 << (bp)))))

usb_set_bit8

#define usb_set_bit8	(		bp,
			reg
	)		(write8((reg), (read8(reg) | (1 << (bp)))))

Typedef Documentation

sunxi_ubuf_t

typedef struct sunxi_ubuf sunxi_ubuf_t

sunxi_udc_t

typedef struct sunxi_udc sunxi_udc_t

sunxi_usb_setup_req_t

typedef struct sunxi_usb_setup_req_s sunxi_usb_setup_req_t

Enumeration Type Documentation

usb_device_speed

enum usb_device_speed

Enumerator
USB_SPEED_LOW
USB_SPEED_FULL
USB_SPEED_HIGH
USB_SPEED_RESERVED

Function Documentation

__attribute__()

struct umass_bbb_csw_t __attribute__

(

(packed)

)

sunxi_usb_attach()

void sunxi_usb_attach

(

)

Attach the USB device to the USB controller.

This function attaches the USB device to the USB controller and enters a loop to handle USB events. It continuously checks for pending USB interrupts, handles the USB interrupt by calling sunxi_usb_irq(), and then processes the USB device state by calling sunxi_udev_active->state_loop(&sunxi_ubuf) multiple times.

Parameters

none

Returns

none

sunxi_usb_attach_module()

void sunxi_usb_attach_module

(

uint32_t

device_type

)

Attach a module to the USB controller.

This function attaches a module to the USB controller. It registers the specified USB module and switches to the specified device type. Currently, two types of devices are supported: USB device detect and USB mass storage. If an unknown device type is specified, an error message is printed.

Parameters

device_type

The type of the device to attach SUNXI_USB_DEVICE_DETECT: USB device detect module SUNXI_USB_DEVICE_MASS: USB mass storage module

Returns

none

sunxi_usb_bulk_ep_reset()

void sunxi_usb_bulk_ep_reset

(

)

Reset the bulk endpoints of the USB controller.

This function resets the bulk endpoints of the Allwinner A64 USB controller. It configures the bulk-in and bulk-out endpoints for data transfer. The steps involved are as follows:

1. Get the index of the currently active endpoint.
2. Configure the bulk-in endpoint for transmitting data to the host.
   • Set the transfer type to bulk (USBC_TS_TYPE_BULK).
   • Set the endpoint type to transmit (USBC_EP_TYPE_TX).
   • Set the maximum packet size for the endpoint based on sunxi_udc_source.bulk_ep_max.
   • Configure the FIFO buffer with a size of sunxi_udc_source.fifo_size and the base address sunxi_udc_source.bulk_out_addr.
   • Enable interrupts for the endpoint.
3. Configure the bulk-out endpoint for receiving data from the host.
   • Set the transfer type to bulk (USBC_TS_TYPE_BULK).
   • Set the endpoint type to receive (USBC_EP_TYPE_RX).
   • Set the maximum packet size for the endpoint based on sunxi_udc_source.bulk_ep_max.
   • Configure the FIFO buffer with a size of sunxi_udc_source.fifo_size and the base address sunxi_udc_source.bulk_in_addr.
   • Enable interrupts for the endpoint.
4. Restore the previously active endpoint.

Parameters

none

Returns

none

sunxi_usb_dump()

void sunxi_usb_dump	(	uint32_t	usbc_base,
		uint32_t	ep_index
	)

Dump the USB controller registers for a specific endpoint.

This function dumps the USB controller registers for a specific endpoint of the Allwinner A64 USB controller.

Parameters

usbc_base	The base address of the USB controller
ep_index	The index of the endpoint to dump registers for

Returns

none

sunxi_usb_ep_reset()

void sunxi_usb_ep_reset

(

)

Reset all endpoints of the USB controller.

This function resets all endpoints of the Allwinner A64 USB controller by calling the sunxi_usb_bulk_ep_reset() function to reset the bulk endpoints.

Parameters

none

Returns

none

sunxi_usb_extern_loop()

int sunxi_usb_extern_loop

(

)

Run the USB device state machine loop once.

This function runs the USB device state machine loop once by calling sunxi_udev_active->state_loop(&sunxi_ubuf) and returning the result.

Parameters

none

Returns

The result of sunxi_udev_active->state_loop(&sunxi_ubuf)

sunxi_usb_get_ep_in_type()

int sunxi_usb_get_ep_in_type

(

void

)

Get the IN endpoint type.

This function returns the type of the IN endpoint.

Returns

The IN endpoint type

sunxi_usb_get_ep_max()

int sunxi_usb_get_ep_max

(

void

)

Get the maximum number of endpoints.

This function returns the maximum number of endpoints supported by the USB controller.

Returns

The maximum number of endpoints

sunxi_usb_get_ep_out_type()

int sunxi_usb_get_ep_out_type

(

void

)

Get the OUT endpoint type.

This function returns the type of the OUT endpoint.

Returns

The OUT endpoint type

sunxi_usb_init()

int sunxi_usb_init

(

)

Initialize the USB controller.

This function initializes the USB controller. It first checks if it can successfully initialize the USB device, then initializes the UDC controller source and requests DMA channels for data sending and receiving. Next, it configures the USB device by setting the transfer mode and speed, configuring DMA, etc. Finally, it enables interrupts and opens the USB device.

Returns

0 on success, -1 on failure

Parameters

none

sunxi_usb_irq()

void sunxi_usb_irq

(

)

Handle the USB interrupt.

This function is responsible for handling various USB interrupts, including RESET, RESUME, SUSPEND, DISCONNECT, SOF, endpoint 0 (EP0), and data transfers for both transmit (TX) and receive (RX) endpoints. It also handles DMA interrupts for both TX and RX endpoints.

Parameters

None

Returns

None

sunxi_usb_module_ext() [1/2]

sunxi_usb_module_ext

(

SUNXI_USB_DEVICE_DETECT

)

sunxi_usb_module_ext() [2/2]

sunxi_usb_module_ext

(

SUNXI_USB_DEVICE_MASS

)

sunxi_usb_send_data()

int sunxi_usb_send_data	(	void *	buffer,
		uint32_t	buffer_size
	)

Send data over USB.

This function sends data over USB. It sets the rx_ready_for_data flag to 0 in the sunxi_ubuf structure and calls sunxi_usb_write_fifo() to write the data to the USB FIFO.

Parameters

buffer	The buffer containing the data to send
buffer_size	The size of the data buffer

Returns

0 on success, -1 on failure

sunxi_usb_send_setup()

void sunxi_usb_send_setup	(	uint32_t	length,
		void *	buffer
	)

Send a setup packet.

This function sends a setup packet over USB. If the length is zero, it sends a zero-length packet. Otherwise, it selects the appropriate FIFO, writes the packet to the FIFO, and calls sunxi_usb_write_complete() to handle the completion of the write operation.

Parameters

length	The length of the setup packet
buffer	The buffer containing the setup packet

sunxi_usb_set_address()

int sunxi_usb_set_address

(

uint32_t

address

)

Set USB device address.

This function sets the USB device address to the specified address. It updates the address value in the sunxi_udc_source structure and calls usb_device_read_data_status() to handle the status phase of the control transfer.

Parameters

address

The USB device address to set

Returns

SUNXI_USB_REQ_SUCCESSED on success

sunxi_usb_start_recv_by_dma()

int sunxi_usb_start_recv_by_dma	(	void *	mem_base,
		uint32_t	length
	)

Start receiving data by DMA.

This function starts receiving data by DMA. It configures the USB controller to use DMA for receiving, flushes the cache, enables DMA transfer, and restores the active endpoint after the transfer is started.

Parameters

mem_base	The base address of the memory buffer
length	The length of the data to be received

Returns

0 on success, -1 on failure

Variable Documentation

bAlternateSetting

uint8_t bAlternateSetting

bcdDevice

uint16_t bcdDevice

bcdUSB

uint16_t bcdUSB

bConfigurationValue

uint8_t bConfigurationValue

bDescriptorSubtype

uint8_t bDescriptorSubtype

bDescriptorType

uint8_t bDescriptorType

bDeviceClass

uint8_t bDeviceClass

bDeviceProtocol

uint8_t bDeviceProtocol

bDeviceSubClass

uint8_t bDeviceSubClass

bEndpointAddress

uint8_t bEndpointAddress

bInterfaceClass

uint8_t bInterfaceClass

bInterfaceNumber

uint8_t bInterfaceNumber

bInterfaceProtocol

uint8_t bInterfaceProtocol

bInterfaceSubClass

uint8_t bInterfaceSubClass

bInterval

uint8_t bInterval

bLength

uint8_t bLength

bmAttributes

uint8_t bmAttributes

bMaxPacketSize0

uint8_t bMaxPacketSize0

bMaxPower

uint8_t bMaxPower

bNumConfigurations

uint8_t bNumConfigurations

bNumEndpoints

uint8_t bNumEndpoints

bNumInterfaces

uint8_t bNumInterfaces

breserved

uint8_t breserved

iConfiguration

uint8_t iConfiguration

idProduct

uint16_t idProduct

idVendor

uint16_t idVendor

iInterface

uint8_t iInterface

iManufacturer

uint8_t iManufacturer

index

uint16_t index

iProduct

uint8_t iProduct

iSerialNumber

uint8_t iSerialNumber

length

uint16_t length

request

uint8_t request

request_type

uint8_t request_type

value

uint16_t value

wData

uint16_t wData[0]

wMaxPacketSize

uint16_t wMaxPacketSize

wTotalLength

uint16_t wTotalLength
