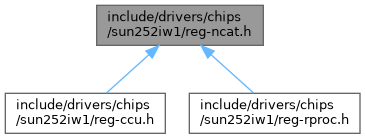

| #define BOOT_SYS_UPDATE 0x2 |
| #define FORCE_DETECTER_OUTPUT (1 << 7) |
| #define SRAM_CONTRL_REG0 (SUNXI_SYSCRL_BASE + 0x0) |
| #define SRAM_CONTRL_REG1 (SUNXI_SYSCRL_BASE + 0x4) |
| #define SUNXI_ADDA_BASE 0x02030000 |
| #define SUNXI_BOOTFLAG_WRITE_KEY 0x429B0000 |
| #define SUNXI_BROM_BASE 0x00000000 |
| #define SUNXI_CCU_BASE 0x02001000 |
| #define SUNXI_CE_BASE 0x03040000 |
| #define SUNXI_CE_KEY_SRAM_BASE 0x03041000 |
| #define SUNXI_CPU_GIC_BASE 0x03020000 |
| #define SUNXI_CPUS_CFG_BASE (0x07000400U) |
| #define SUNXI_CPUX_CFG_BASE 0x08008000 |
| #define SUNXI_CPUX_CLINT_BASE 0x34000000 |
| #define SUNXI_CPUX_MSGBOX_BASE 0x0800B000 |
| #define SUNXI_CPUX_PLIC_BASE 0x30000000 |
| #define SUNXI_CPUX_PMC_BASE 0x08000000 |
| #define SUNXI_CPUX_TS_BASE 0x0800A000 |
| #define SUNXI_CPUX_WDG_BASE 0x08009000 |
| #define SUNXI_CSI_BASE 0x05800000 |
| #define SUNXI_DCU_BASE 0x03010000 |
| #define SUNXI_DE_BASE 0x05000000 |
| #define SUNXI_DISPLAY_TOP_BASE 0x05460000 |
| #define SUNXI_DMA0_SGDMA__BASE 0x03002000 |
| #define SUNXI_DMA1_NDMA__BASE 0x03042000 |
| #define SUNXI_DMIC_BASE 0x02031000 |
| #define SUNXI_DRAM_SPACE_BASE 0x40000000 |
| #define SUNXI_DSI0_BASE 0x05450000 |
| #define SUNXI_EMAC_BASE 0x04500000 |
| #define SUNXI_G2D_BASE 0x05410000 |
| #define SUNXI_GATING_BIT (0) |
| #define SUNXI_GPADC_BASE 0x02009000 |
| #define SUNXI_GPIO_BASE 0x02000000 |
| #define SUNXI_HSTIMER_BASE 0x03008000 |
| #define SUNXI_I2S0_BASE 0x02032000 |
| #define SUNXI_I2S1_BASE 0x02033000 |
| #define SUNXI_ISP_BASE 0x05900000 |
| #define SUNXI_MSI_MEMC_BASE 0x03102000 |
| #define SUNXI_NPU_BASE 0x03050000 |
| #define SUNXI_PIO_BASE (SUNXI_GPIO_BASE) |
| #define SUNXI_PLAT_TCIP_BASE_ADDR (SUNXI_RISCV_CLINT_BASE) |
| #define SUNXI_PWM_BASE 0x02000C00 |
| #define SUNXI_R_CPUCFG_BASE 0x07000400 |
| #define SUNXI_R_PPU_BASE 0x07001000 |
| #define SUNXI_R_PRCM_BASE 0x07010000 |
| #define SUNXI_R_SPC_BASE 0x07002000 |
| #define SUNXI_R_TWD_BASE 0x07020800 |
| #define SUNXI_RCPUCFG_BASE (SUNXI_CPUS_CFG_BASE) |
| #define SUNXI_RESERVE_BASE 0x30805000 |
| #define SUNXI_RGPIO_BASE 0x02000540 |
| #define SUNXI_RISCV_CLIC_BASE 0x30800000 |
| #define SUNXI_RISCV_CLINT_BASE 0x30000000 |
| #define SUNXI_RISCV_SYSMAP_BASE 0x3FFFF000 |
| #define SUNXI_RPIO_BASE (SUNXI_RGPIO_BASE) |
| #define SUNXI_RST_BIT (16) |
| #define SUNXI_RTC_BASE 0x07090000 |
| #define SUNXI_RTC_DATA_BASE (SUNXI_RTC_BASE + 0x100) |
| #define SUNXI_RTC_IOMODE_CTL (SUNXI_RTC_BASE + 0x240) |
| #define SUNXI_RTC_PMC_BYPASS_STATUS (SUNXI_RTC_BASE + 0x238) |
| #define SUNXI_RTWI_BASE (SUNXI_TWI0_BASE) |
| #define SUNXI_RTWI_BRG_REG (SUNXI_CCU_BASE + 0x091c) |
| #define SUNXI_SID_BASE 0x07091000 |
| #define SUNXI_SID_SRAM_BASE (SUNXI_SID_BASE + 0x200) |
| #define SUNXI_SMHC0_BASE 0x04020000 |
| #define SUNXI_SMHC1_BASE 0x04021000 |
| #define SUNXI_SPI0_BASE 0x04025000 |
| #define SUNXI_SPI1_BASE 0x04026000 |
| #define SUNXI_SPI_FLASH_BASE 0x04F00000 |
| #define SUNXI_SPI_FLASH_XIP_BASE 0x10000000 |
| #define SUNXI_SPIF_BASE (SUNXI_SPI_FLASH_BASE) |
| #define SUNXI_SPINLOCK_BASE 0x03005000 |
| #define SUNXI_SQPI_PSRAM_XIP_BASE 0x12000000 |
| #define SUNXI_SQPI_PSRAMC_BASE 0x03043000 |
| #define SUNXI_SRAM_C_BASE 0x00020000 |
| #define SUNXI_SS_BASE (SUNXI_CE_BASE) |
| #define SUNXI_SYSCRL_BASE (SUNXI_SYSCTRL_BASE) |
| #define SUNXI_SYSCTRL_BASE 0x03000000 |
| #define SUNXI_TCON_LCD0_BASE 0x05461000 |
| #define SUNXI_THS_BASE 0x02009400 |
| #define SUNXI_TIMER_BASE 0x02050000 |
| #define SUNXI_TWI0_BASE 0x02502000 |
| #define SUNXI_TWI1_BASE 0x02502400 |
| #define SUNXI_TWI2_BASE 0x02502800 |
| #define SUNXI_TWI3_BASE 0x02502C00 |
| #define SUNXI_UART0_BASE 0x02500000 |
| #define SUNXI_UART1_BASE 0x02500400 |
| #define SUNXI_UART2_BASE 0x02500800 |
| #define SUNXI_UART3_BASE 0x02500C00 |
| #define SUNXI_USB0_BASE 0x04100000 |
| #define SUNXI_VE_BASE 0x01C0E000 |
| #define SUNXI_WDOG_KEY_FILED 0x16AA0000 |
| #define SUNXI_WDOG_MODE_REG 0x18 |
| #define SYSRTC_BOOTFLAG_REG 0x02A0 |
| #define VCC33_DET_CTRL_REG (0x1f4) |
| #define VCCIO_DET_BYPASS_EN (1 << 0) |
| #define VCCIO_THRESHOLD_MASK (0xff) |
| #define VCCIO_THRESHOLD_VOLTAGE_2_5 (0 << 4) |
| #define VCCIO_THRESHOLD_VOLTAGE_2_6 (1 << 4) |
| #define VCCIO_THRESHOLD_VOLTAGE_2_7 (2 << 4) |
| #define VCCIO_THRESHOLD_VOLTAGE_2_8 (3 << 4) |
| #define VCCIO_THRESHOLD_VOLTAGE_2_9 (4 << 4) |
| #define VCCIO_THRESHOLD_VOLTAGE_3_0 (5 << 4) |
