ufs.h File Reference

#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include "reg/reg-ufs.h"
#include "blk.h"
#include "scsi.h"

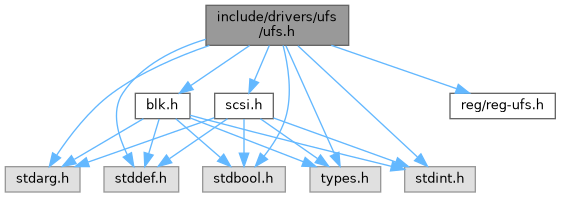

Include dependency graph for ufs.h:

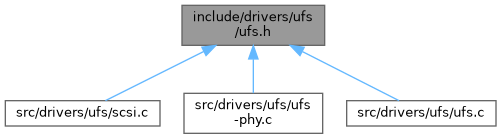

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ufs_pa_layer_attr
struct	ufs_pwr_mode_info
struct	ufshcd_sg_entry
struct	utp_transfer_cmd_desc
struct	request_desc_header
	struct request_desc_header - Descriptor Header common to both UTRD and UTMRD @dword0: Descriptor Header DW0 @dword1: Descriptor Header DW1 @dword2: Descriptor Header DW2 @dword3: Descriptor Header DW3 More...
struct	utp_transfer_req_desc
	struct utp_transfer_req_desc - UTRD structure @header: UTRD header DW-0 to DW-3 @command_desc_base_addr_lo: UCD base address low DW-4 @command_desc_base_addr_hi: UCD base address high DW-5 @response_upiu_length: response UPIU length DW-6 @response_upiu_offset: response UPIU offset DW-6 @prd_table_length: Physical region descriptor length DW-7 @prd_table_offset: Physical region descriptor offset DW-7 More...
struct	utp_upiu_header
	struct utp_upiu_header - UPIU header structure @dword_0: UPIU header DW-0 @dword_1: UPIU header DW-1 @dword_2: UPIU header DW-2 More...
struct	utp_upiu_query
	struct utp_upiu_query - upiu request buffer structure for query request. More...
struct	utp_upiu_cmd
	struct utp_upiu_cmd - Command UPIU structure @data_transfer_len: Data Transfer Length DW-3 @cdb: Command Descriptor Block CDB DW-4 to DW-7 More...
struct	utp_task_req_desc
struct	utp_upiu_req
	struct utp_upiu_req - general upiu request structure @header:UPIU header structure DW-0 to DW-2 @sc: fields structure for scsi command DW-3 to DW-7 @qr: fields structure for query request DW-3 to DW-7 More...
struct	utp_cmd_rsp
	struct utp_cmd_rsp - Response UPIU structure @residual_transfer_count: Residual transfer count DW-3 @reserved: Reserved double words DW-4 to DW-7 @sense_data_len: Sense data length DW-8 U16 @sense_data: Sense data field DW-8 to DW-12 More...
struct	utp_upiu_rsp
	struct utp_upiu_rsp - general upiu response structure @header: UPIU header structure DW-0 to DW-2 @sr: fields structure for scsi command DW-3 to DW-12 @qr: fields structure for query request DW-3 to DW-7 More...
struct	ufs_dev_desc
	ufs_dev_desc - ufs device details from the device descriptor More...
struct	uic_command
	struct uic_command - UIC command structure @command: UIC command @argument1: UIC command argument 1 @argument2: UIC command argument 2 @argument3: UIC command argument 3 @cmd_active: Indicate if UIC command is outstanding More...
struct	ufs_query_req
	struct ufs_query_req - parameters for building a query request @query_func: UPIU header query function @upiu_req: the query request data More...
struct	ufs_query_res
	struct ufs_query_resp - UPIU QUERY @response: device response code @upiu_res: query response data More...
struct	ufs_query
	struct ufs_query - holds relevant data structures for query request @request: request upiu and function @descriptor: buffer for sending/receiving descriptor @response: response upiu and response More...
struct	ufs_dev_cmd
	struct ufs_dev_cmd - all assosiated fields with device management commands @type: device management command type - Query, NOP OUT @tag_wq: wait queue until free command slot is available More...
struct	ufs_desc_size
struct	ufs_basic_info
struct	ufs_hba
struct	ufs_device

Macros
#define	UFS_CDB_SIZE   16
#define	RESPONSE_UPIU_SENSE_DATA_LENGTH   18
#define	UFS_MAX_LUNS   0x7F
#define	UFSHCD_QUIRK_BROKEN_LCC   0x1
#define	UPIU_COMMAND_TYPE_OFFSET   28
#define	UPIU_RSP_CODE_OFFSET   8
#define	UPIU_RSP_CODE_OFFSET   8
#define	MASK_UIC_COMMAND_RESULT   0xFF
#define	MAX_BUFF   (16 * 4)
#define	MAX_MODEL_LEN   16
#define	GENERAL_UPIU_REQUEST_SIZE   (sizeof(utp_upiu_req_t))
#define	QUERY_DESC_MAX_SIZE   255
#define	QUERY_DESC_MIN_SIZE   2
#define	QUERY_DESC_HDR_SIZE   2
#define	QUERY_OSF_SIZE   (GENERAL_UPIU_REQUEST_SIZE - (sizeof(utp_upiu_header_t)))
#define	RESPONSE_UPIU_SENSE_DATA_LENGTH   18
#define	UPIU_HEADER_DWORD(byte3, byte2, byte1, byte0)   cpu_to_be32((byte3 << 24) | (byte2 << 16) | (byte1 << 8) | (byte0))
#define	UIC_ARG_MPHY_TX_GEN_SEL_INDEX(lane)   (lane)
#define	UIC_ARG_MPHY_RX_GEN_SEL_INDEX(lane)   (PA_MAXDATALANES + (lane))
#define	UIC_ARG_MIB_SEL(attr, sel)   ((((((uint32_t) attr)) & 0xFFFF) << 16) | ((sel) &0xFFFF))
#define	UIC_ARG_MIB(attr)   UIC_ARG_MIB_SEL(((uint32_t) attr), 0)
#define	UIC_ARG_ATTR_TYPE(t)   (((t) &0xFF) << 16)
#define	UIC_GET_ATTR_ID(v)   (((v) >> 16) & 0xFFFF)
#define	DME_LOCAL   0
#define	DME_PEER   1
#define	ATTR_SET_NOR   0 /* NORMAL */
#define	ATTR_SET_ST   1 /* STATIC */

Typedefs
typedef struct ufs_pa_layer_attr	ufs_pa_layer_attr_t
typedef struct ufs_pwr_mode_info	ufs_pwr_mode_info_t
typedef struct ufshcd_sg_entry	ufshcd_sg_entry_t
typedef struct utp_transfer_cmd_desc	utp_transfer_cmd_desc_t
typedef struct request_desc_header	request_desc_header_t
	struct request_desc_header - Descriptor Header common to both UTRD and UTMRD @dword0: Descriptor Header DW0 @dword1: Descriptor Header DW1 @dword2: Descriptor Header DW2 @dword3: Descriptor Header DW3
typedef struct utp_transfer_req_desc	utp_transfer_req_desc_t
	struct utp_transfer_req_desc - UTRD structure @header: UTRD header DW-0 to DW-3 @command_desc_base_addr_lo: UCD base address low DW-4 @command_desc_base_addr_hi: UCD base address high DW-5 @response_upiu_length: response UPIU length DW-6 @response_upiu_offset: response UPIU offset DW-6 @prd_table_length: Physical region descriptor length DW-7 @prd_table_offset: Physical region descriptor offset DW-7
typedef struct utp_upiu_header	utp_upiu_header_t
	struct utp_upiu_header - UPIU header structure @dword_0: UPIU header DW-0 @dword_1: UPIU header DW-1 @dword_2: UPIU header DW-2
typedef struct utp_upiu_query	utp_upiu_query_t
	struct utp_upiu_query - upiu request buffer structure for query request.
typedef struct utp_upiu_cmd	utp_upiu_cmd_t
	struct utp_upiu_cmd - Command UPIU structure @data_transfer_len: Data Transfer Length DW-3 @cdb: Command Descriptor Block CDB DW-4 to DW-7
typedef struct utp_task_req_desc	utp_task_req_desc_t
typedef struct utp_upiu_req	utp_upiu_req_t
	struct utp_upiu_req - general upiu request structure @header:UPIU header structure DW-0 to DW-2 @sc: fields structure for scsi command DW-3 to DW-7 @qr: fields structure for query request DW-3 to DW-7
typedef struct utp_cmd_rsp	utp_cmd_rsp_t
	struct utp_cmd_rsp - Response UPIU structure @residual_transfer_count: Residual transfer count DW-3 @reserved: Reserved double words DW-4 to DW-7 @sense_data_len: Sense data length DW-8 U16 @sense_data: Sense data field DW-8 to DW-12
typedef struct utp_upiu_rsp	utp_upiu_rsp_t
	struct utp_upiu_rsp - general upiu response structure @header: UPIU header structure DW-0 to DW-2 @sr: fields structure for scsi command DW-3 to DW-12 @qr: fields structure for query request DW-3 to DW-7
typedef struct ufs_dev_desc	ufs_dev_desc_t
	ufs_dev_desc - ufs device details from the device descriptor
typedef struct uic_command	uic_command_t
	struct uic_command - UIC command structure @command: UIC command @argument1: UIC command argument 1 @argument2: UIC command argument 2 @argument3: UIC command argument 3 @cmd_active: Indicate if UIC command is outstanding
typedef struct ufs_query_req	ufs_query_req_t
	struct ufs_query_req - parameters for building a query request @query_func: UPIU header query function @upiu_req: the query request data
typedef struct ufs_query_res	ufs_query_res_t
	struct ufs_query_resp - UPIU QUERY @response: device response code @upiu_res: query response data
typedef struct ufs_query	ufs_query_t
	struct ufs_query - holds relevant data structures for query request @request: request upiu and function @descriptor: buffer for sending/receiving descriptor @response: response upiu and response
typedef struct ufs_dev_cmd	ufs_dev_cmd_t
	struct ufs_dev_cmd - all assosiated fields with device management commands @type: device management command type - Query, NOP OUT @tag_wq: wait queue until free command slot is available
typedef struct ufs_desc_size	ufs_desc_size_t
typedef struct ufs_basic_info	ufs_basic_info_t
typedef struct ufs_hba	ufs_hba_t
typedef struct ufs_device	ufs_device_t

Enumerations
enum	{ UFSHCI_VERSION_10 = 0x00010000 , UFSHCI_VERSION_11 = 0x00010100 , UFSHCI_VERSION_20 = 0x00000200 , UFSHCI_VERSION_21 = 0x00000210 }
enum	{ INTERRUPT_MASK_ALL_VER_10 = 0x30FFF , INTERRUPT_MASK_RW_VER_10 = 0x30000 , INTERRUPT_MASK_ALL_VER_11 = 0x31FFF , INTERRUPT_MASK_ALL_VER_21 = 0x71FFF }
enum	{   PWR_OK = 0x0 , PWR_LOCAL = 0x01 , PWR_REMOTE = 0x02 , PWR_BUSY = 0x03 ,   PWR_ERROR_CAP = 0x04 , PWR_FATAL_ERROR = 0x05 }
enum	{ TASK_REQ_UPIU_SIZE_DWORDS = 8 , TASK_RSP_UPIU_SIZE_DWORDS = 8 , ALIGNED_UPIU_SIZE = 512 }
enum	{ UTP_CMD_TYPE_SCSI = 0x0 , UTP_CMD_TYPE_UFS = 0x1 , UTP_CMD_TYPE_DEV_MANAGE = 0x2 }
enum	{ UTP_CMD_TYPE_UFS_STORAGE = 0x1 }
enum	{ UTP_SCSI_COMMAND = 0x00000000 , UTP_NATIVE_UFS_COMMAND = 0x10000000 , UTP_DEVICE_MANAGEMENT_FUNCTION = 0x20000000 , UTP_REQ_DESC_INT_CMD = 0x01000000 }
enum	{ UTP_NO_DATA_TRANSFER = 0x00000000 , UTP_HOST_TO_DEVICE = 0x02000000 , UTP_DEVICE_TO_HOST = 0x04000000 }
enum	{   OCS_SUCCESS = 0x0 , OCS_INVALID_CMD_TABLE_ATTR = 0x1 , OCS_INVALID_PRDT_ATTR = 0x2 , OCS_MISMATCH_DATA_BUF_SIZE = 0x3 ,   OCS_MISMATCH_RESP_UPIU_SIZE = 0x4 , OCS_PEER_COMM_FAILURE = 0x5 , OCS_ABORTED = 0x6 , OCS_FATAL_ERROR = 0x7 ,   OCS_INVALID_COMMAND_STATUS = 0x0F , MASK_OCS = 0x0F }
enum	{   UFS_ABORT_TASK = 0x01 , UFS_ABORT_TASK_SET = 0x02 , UFS_CLEAR_TASK_SET = 0x04 , UFS_LOGICAL_RESET = 0x08 ,   UFS_QUERY_TASK = 0x80 , UFS_QUERY_TASK_SET = 0x81 }
enum	{   UPIU_TRANSACTION_NOP_OUT = 0x00 , UPIU_TRANSACTION_COMMAND = 0x01 , UPIU_TRANSACTION_DATA_OUT = 0x02 , UPIU_TRANSACTION_TASK_REQ = 0x04 ,   UPIU_TRANSACTION_QUERY_REQ = 0x16 }
enum	{   UPIU_TRANSACTION_NOP_IN = 0x20 , UPIU_TRANSACTION_RESPONSE = 0x21 , UPIU_TRANSACTION_DATA_IN = 0x22 , UPIU_TRANSACTION_TASK_RSP = 0x24 ,   UPIU_TRANSACTION_READY_XFER = 0x31 , UPIU_TRANSACTION_QUERY_RSP = 0x36 , UPIU_TRANSACTION_REJECT_UPIU = 0x3F }
enum	{ UPIU_CMD_FLAGS_NONE = 0x00 , UPIU_CMD_FLAGS_WRITE = 0x20 , UPIU_CMD_FLAGS_READ = 0x40 }
enum	{ UPIU_TASK_ATTR_SIMPLE = 0x00 , UPIU_TASK_ATTR_ORDERED = 0x01 , UPIU_TASK_ATTR_HEADQ = 0x02 , UPIU_TASK_ATTR_ACA = 0x03 }
enum	{ UPIU_QUERY_FUNC_STANDARD_READ_REQUEST = 0x01 , UPIU_QUERY_FUNC_STANDARD_WRITE_REQUEST = 0x81 }
enum	{   MASK_SCSI_STATUS = 0xFF , MASK_TASK_RESPONSE = 0xFF00 , MASK_RSP_UPIU_RESULT = 0xFFFF , MASK_QUERY_DATA_SEG_LEN = 0xFFFF ,   MASK_RSP_UPIU_DATA_SEG_LEN = 0xFFFF , MASK_RSP_EXCEPTION_EVENT = 0x10000 , MASK_TM_SERVICE_RESP = 0xFF , MASK_TM_FUNC = 0xFF }
enum	query_opcode {   UPIU_QUERY_OPCODE_NOP = 0x0 , UPIU_QUERY_OPCODE_READ_DESC = 0x1 , UPIU_QUERY_OPCODE_WRITE_DESC = 0x2 , UPIU_QUERY_OPCODE_READ_ATTR = 0x3 ,   UPIU_QUERY_OPCODE_WRITE_ATTR = 0x4 , UPIU_QUERY_OPCODE_READ_FLAG = 0x5 , UPIU_QUERY_OPCODE_SET_FLAG = 0x6 , UPIU_QUERY_OPCODE_CLEAR_FLAG = 0x7 ,   UPIU_QUERY_OPCODE_TOGGLE_FLAG = 0x8 }
enum	ufs_ref_clk_freq {   REF_CLK_FREQ_19_2_MHZ = 0 , REF_CLK_FREQ_26_MHZ = 1 , REF_CLK_FREQ_38_4_MHZ = 2 , REF_CLK_FREQ_52_MHZ = 3 ,   REF_CLK_FREQ_INVAL = -1 }
enum	{   QUERY_RESULT_SUCCESS = 0x00 , QUERY_RESULT_NOT_READABLE = 0xF6 , QUERY_RESULT_NOT_WRITEABLE = 0xF7 , QUERY_RESULT_ALREADY_WRITTEN = 0xF8 ,   QUERY_RESULT_INVALID_LENGTH = 0xF9 , QUERY_RESULT_INVALID_VALUE = 0xFA , QUERY_RESULT_INVALID_SELECTOR = 0xFB , QUERY_RESULT_INVALID_INDEX = 0xFC ,   QUERY_RESULT_INVALID_IDN = 0xFD , QUERY_RESULT_INVALID_OPCODE = 0xFE , QUERY_RESULT_GENERAL_FAILURE = 0xFF }
enum	ufs_dev_pwr_mode { UFS_ACTIVE_PWR_MODE = 1 , UFS_SLEEP_PWR_MODE = 2 , UFS_POWERDOWN_PWR_MODE = 3 }
enum	ufs_notify_change_status { PRE_CHANGE , POST_CHANGE }
enum	{ UPIU_COMMAND_SET_TYPE_SCSI = 0x0 , UPIU_COMMAND_SET_TYPE_UFS = 0x1 , UPIU_COMMAND_SET_TYPE_QUERY = 0x2 }
enum	flag_idn {   QUERY_FLAG_IDN_FDEVICEINIT = 0x01 , QUERY_FLAG_IDN_PERMANENT_WPE = 0x02 , QUERY_FLAG_IDN_PWR_ON_WPE = 0x03 , QUERY_FLAG_IDN_BKOPS_EN = 0x04 ,   QUERY_FLAG_IDN_LIFE_SPAN_MODE_ENABLE = 0x05 , QUERY_FLAG_IDN_PURGE_ENABLE = 0x06 , QUERY_FLAG_IDN_RESERVED2 = 0x07 , QUERY_FLAG_IDN_FPHYRESOURCEREMOVAL = 0x08 ,   QUERY_FLAG_IDN_BUSY_RTC = 0x09 , QUERY_FLAG_IDN_RESERVED3 = 0x0A , QUERY_FLAG_IDN_PERMANENTLY_DISABLE_FW_UPDATE = 0x0B }
enum	attr_idn {   QUERY_ATTR_IDN_BOOT_LU_EN = 0x00 , QUERY_ATTR_IDN_RESERVED = 0x01 , QUERY_ATTR_IDN_POWER_MODE = 0x02 , QUERY_ATTR_IDN_ACTIVE_ICC_LVL = 0x03 ,   QUERY_ATTR_IDN_OOO_DATA_EN = 0x04 , QUERY_ATTR_IDN_BKOPS_STATUS = 0x05 , QUERY_ATTR_IDN_PURGE_STATUS = 0x06 , QUERY_ATTR_IDN_MAX_DATA_IN = 0x07 ,   QUERY_ATTR_IDN_MAX_DATA_OUT = 0x08 , QUERY_ATTR_IDN_DYN_CAP_NEEDED = 0x09 , QUERY_ATTR_IDN_REF_CLK_FREQ = 0x0A , QUERY_ATTR_IDN_CONF_DESC_LOCK = 0x0B ,   QUERY_ATTR_IDN_MAX_NUM_OF_RTT = 0x0C , QUERY_ATTR_IDN_EE_CONTROL = 0x0D , QUERY_ATTR_IDN_EE_STATUS = 0x0E , QUERY_ATTR_IDN_SECONDS_PASSED = 0x0F ,   QUERY_ATTR_IDN_CNTX_CONF = 0x10 , QUERY_ATTR_IDN_CORR_PRG_BLK_NUM = 0x11 , QUERY_ATTR_IDN_RESERVED2 = 0x12 , QUERY_ATTR_IDN_RESERVED3 = 0x13 ,   QUERY_ATTR_IDN_FFU_STATUS = 0x14 , QUERY_ATTR_IDN_PSA_STATE = 0x15 , QUERY_ATTR_IDN_PSA_DATA_SIZE = 0x16 }
enum	desc_idn {   QUERY_DESC_IDN_DEVICE = 0x0 , QUERY_DESC_IDN_CONFIGURATION = 0x1 , QUERY_DESC_IDN_UNIT = 0x2 , QUERY_DESC_IDN_RFU_0 = 0x3 ,   QUERY_DESC_IDN_INTERCONNECT = 0x4 , QUERY_DESC_IDN_STRING = 0x5 , QUERY_DESC_IDN_RFU_1 = 0x6 , QUERY_DESC_IDN_GEOMETRY = 0x7 ,   QUERY_DESC_IDN_POWER = 0x8 , QUERY_DESC_IDN_HEALTH = 0x9 , QUERY_DESC_IDN_MAX }
enum	desc_header_offset { QUERY_DESC_LENGTH_OFFSET = 0x00 , QUERY_DESC_DESC_TYPE_OFFSET = 0x01 }
enum	ufs_desc_def_size {   QUERY_DESC_DEVICE_DEF_SIZE = 0x40 , QUERY_DESC_CONFIGURATION_DEF_SIZE = 0x90 , QUERY_DESC_UNIT_DEF_SIZE = 0x23 , QUERY_DESC_INTERCONNECT_DEF_SIZE = 0x06 ,   QUERY_DESC_GEOMETRY_DEF_SIZE = 0x48 , QUERY_DESC_POWER_DEF_SIZE = 0x62 , QUERY_DESC_HEALTH_DEF_SIZE = 0x25 }
enum	device_desc_param {   DEVICE_DESC_PARAM_LEN = 0x0 , DEVICE_DESC_PARAM_TYPE = 0x1 , DEVICE_DESC_PARAM_DEVICE_TYPE = 0x2 , DEVICE_DESC_PARAM_DEVICE_CLASS = 0x3 ,   DEVICE_DESC_PARAM_DEVICE_SUB_CLASS = 0x4 , DEVICE_DESC_PARAM_PRTCL = 0x5 , DEVICE_DESC_PARAM_NUM_LU = 0x6 , DEVICE_DESC_PARAM_NUM_WLU = 0x7 ,   DEVICE_DESC_PARAM_BOOT_ENBL = 0x8 , DEVICE_DESC_PARAM_DESC_ACCSS_ENBL = 0x9 , DEVICE_DESC_PARAM_INIT_PWR_MODE = 0xA , DEVICE_DESC_PARAM_HIGH_PR_LUN = 0xB ,   DEVICE_DESC_PARAM_SEC_RMV_TYPE = 0xC , DEVICE_DESC_PARAM_SEC_LU = 0xD , DEVICE_DESC_PARAM_BKOP_TERM_LT = 0xE , DEVICE_DESC_PARAM_ACTVE_ICC_LVL = 0xF ,   DEVICE_DESC_PARAM_SPEC_VER = 0x10 , DEVICE_DESC_PARAM_MANF_DATE = 0x12 , DEVICE_DESC_PARAM_MANF_NAME = 0x14 , DEVICE_DESC_PARAM_PRDCT_NAME = 0x15 ,   DEVICE_DESC_PARAM_SN = 0x16 , DEVICE_DESC_PARAM_OEM_ID = 0x17 , DEVICE_DESC_PARAM_MANF_ID = 0x18 , DEVICE_DESC_PARAM_UD_OFFSET = 0x1A ,   DEVICE_DESC_PARAM_UD_LEN = 0x1B , DEVICE_DESC_PARAM_RTT_CAP = 0x1C , DEVICE_DESC_PARAM_FRQ_RTC = 0x1D , DEVICE_DESC_PARAM_UFS_FEAT = 0x1F ,   DEVICE_DESC_PARAM_FFU_TMT = 0x20 , DEVICE_DESC_PARAM_Q_DPTH = 0x21 , DEVICE_DESC_PARAM_DEV_VER = 0x22 , DEVICE_DESC_PARAM_NUM_SEC_WPA = 0x24 ,   DEVICE_DESC_PARAM_PSA_MAX_DATA = 0x25 , DEVICE_DESC_PARAM_PSA_TMT = 0x29 , DEVICE_DESC_PARAM_PRDCT_REV = 0x2A }
enum	{ UFSHCD_MAX_CHANNEL = 0 , UFSHCD_MAX_ID = 1 }
enum	dev_cmd_type { DEV_CMD_TYPE_NOP = 0x0 , DEV_CMD_TYPE_QUERY = 0x1 }
enum	link_status { UFSHCD_LINK_IS_DOWN = 1 , UFSHCD_LINK_IS_UP = 2 }
enum	uic_cmd_dme {   UIC_CMD_DME_GET = 0x01 , UIC_CMD_DME_SET = 0x02 , UIC_CMD_DME_PEER_GET = 0x03 , UIC_CMD_DME_PEER_SET = 0x04 ,   UIC_CMD_DME_POWERON = 0x10 , UIC_CMD_DME_POWEROFF = 0x11 , UIC_CMD_DME_ENABLE = 0x12 , UIC_CMD_DME_RESET = 0x14 ,   UIC_CMD_DME_END_PT_RST = 0x15 , UIC_CMD_DME_LINK_STARTUP = 0x16 , UIC_CMD_DME_HIBER_ENTER = 0x17 , UIC_CMD_DME_HIBER_EXIT = 0x18 ,   UIC_CMD_DME_TEST_MODE = 0x1A }
enum	{   UIC_CMD_RESULT_SUCCESS = 0x00 , UIC_CMD_RESULT_INVALID_ATTR = 0x01 , UIC_CMD_RESULT_FAILURE = 0x01 , UIC_CMD_RESULT_INVALID_ATTR_VALUE = 0x02 ,   UIC_CMD_RESULT_READ_ONLY_ATTR = 0x03 , UIC_CMD_RESULT_WRITE_ONLY_ATTR = 0x04 , UIC_CMD_RESULT_BAD_INDEX = 0x05 , UIC_CMD_RESULT_LOCKED_ATTR = 0x06 ,   UIC_CMD_RESULT_BAD_TEST_FEATURE_INDEX = 0x07 , UIC_CMD_RESULT_PEER_COMM_FAILURE = 0x08 , UIC_CMD_RESULT_BUSY = 0x09 , UIC_CMD_RESULT_DME_FAILURE = 0x0A }
enum	uic_link_state { UIC_LINK_OFF_STATE = 0 , UIC_LINK_ACTIVE_STATE = 1 , UIC_LINK_HIBERN8_STATE = 2 }

Macro Definition Documentation

ATTR_SET_NOR

#define ATTR_SET_NOR   0 /* NORMAL */

ATTR_SET_ST

#define ATTR_SET_ST   1 /* STATIC */

DME_LOCAL

#define DME_LOCAL   0

DME_PEER

#define DME_PEER   1

GENERAL_UPIU_REQUEST_SIZE

#define GENERAL_UPIU_REQUEST_SIZE   (sizeof(utp_upiu_req_t))

MASK_UIC_COMMAND_RESULT

#define MASK_UIC_COMMAND_RESULT   0xFF

MAX_BUFF

#define MAX_BUFF   (16 * 4)

MAX_MODEL_LEN

#define MAX_MODEL_LEN   16

QUERY_DESC_HDR_SIZE

#define QUERY_DESC_HDR_SIZE   2

QUERY_DESC_MAX_SIZE

#define QUERY_DESC_MAX_SIZE   255

QUERY_DESC_MIN_SIZE

#define QUERY_DESC_MIN_SIZE   2

QUERY_OSF_SIZE

#define QUERY_OSF_SIZE   (GENERAL_UPIU_REQUEST_SIZE - (sizeof(utp_upiu_header_t)))

RESPONSE_UPIU_SENSE_DATA_LENGTH [1/2]

#define RESPONSE_UPIU_SENSE_DATA_LENGTH   18

RESPONSE_UPIU_SENSE_DATA_LENGTH [2/2]

#define RESPONSE_UPIU_SENSE_DATA_LENGTH   18

UFS_CDB_SIZE

#define UFS_CDB_SIZE   16

UFS_MAX_LUNS

#define UFS_MAX_LUNS   0x7F

UFSHCD_QUIRK_BROKEN_LCC

#define UFSHCD_QUIRK_BROKEN_LCC   0x1

UIC_ARG_ATTR_TYPE

#define UIC_ARG_ATTR_TYPE

(

t

)

(((t) &0xFF) << 16)

UIC_ARG_MIB

#define UIC_ARG_MIB

(

attr

)

UIC_ARG_MIB_SEL(((uint32_t) attr), 0)

UIC_ARG_MIB_SEL

#define UIC_ARG_MIB_SEL	(		attr,
			sel
	)		((((((uint32_t) attr)) & 0xFFFF) << 16) | ((sel) &0xFFFF))

UIC_ARG_MPHY_RX_GEN_SEL_INDEX

#define UIC_ARG_MPHY_RX_GEN_SEL_INDEX

(

lane

)

(PA_MAXDATALANES + (lane))

UIC_ARG_MPHY_TX_GEN_SEL_INDEX

#define UIC_ARG_MPHY_TX_GEN_SEL_INDEX

(

lane

)

(lane)

UIC_GET_ATTR_ID

#define UIC_GET_ATTR_ID

(

v

)

(((v) >> 16) & 0xFFFF)

UPIU_COMMAND_TYPE_OFFSET

#define UPIU_COMMAND_TYPE_OFFSET   28

UPIU_HEADER_DWORD

#define UPIU_HEADER_DWORD	(		byte3,
			byte2,
			byte1,
			byte0
	)		cpu_to_be32((byte3 << 24) | (byte2 << 16) | (byte1 << 8) | (byte0))

UPIU_RSP_CODE_OFFSET [1/2]

#define UPIU_RSP_CODE_OFFSET   8

UPIU_RSP_CODE_OFFSET [2/2]

#define UPIU_RSP_CODE_OFFSET   8

Typedef Documentation

request_desc_header_t

typedef struct request_desc_header request_desc_header_t

struct request_desc_header - Descriptor Header common to both UTRD and UTMRD @dword0: Descriptor Header DW0 @dword1: Descriptor Header DW1 @dword2: Descriptor Header DW2 @dword3: Descriptor Header DW3

ufs_basic_info_t

typedef struct ufs_basic_info ufs_basic_info_t

ufs_desc_size_t

typedef struct ufs_desc_size ufs_desc_size_t

ufs_dev_cmd_t

typedef struct ufs_dev_cmd ufs_dev_cmd_t

struct ufs_dev_cmd - all assosiated fields with device management commands @type: device management command type - Query, NOP OUT @tag_wq: wait queue until free command slot is available

ufs_dev_desc_t

typedef struct ufs_dev_desc ufs_dev_desc_t

ufs_dev_desc - ufs device details from the device descriptor

@wmanufacturerid: card details @model: card model

ufs_device_t

typedef struct ufs_device ufs_device_t

ufs_hba_t

typedef struct ufs_hba ufs_hba_t

ufs_pa_layer_attr_t

typedef struct ufs_pa_layer_attr ufs_pa_layer_attr_t

ufs_pwr_mode_info_t

typedef struct ufs_pwr_mode_info ufs_pwr_mode_info_t

ufs_query_req_t

typedef struct ufs_query_req ufs_query_req_t

struct ufs_query_req - parameters for building a query request @query_func: UPIU header query function @upiu_req: the query request data

ufs_query_res_t

typedef struct ufs_query_res ufs_query_res_t

struct ufs_query_resp - UPIU QUERY @response: device response code @upiu_res: query response data

ufs_query_t

typedef struct ufs_query ufs_query_t

struct ufs_query - holds relevant data structures for query request @request: request upiu and function @descriptor: buffer for sending/receiving descriptor @response: response upiu and response

ufshcd_sg_entry_t

typedef struct ufshcd_sg_entry ufshcd_sg_entry_t

uic_command_t

typedef struct uic_command uic_command_t

struct uic_command - UIC command structure @command: UIC command @argument1: UIC command argument 1 @argument2: UIC command argument 2 @argument3: UIC command argument 3 @cmd_active: Indicate if UIC command is outstanding

Returns

: UIC command result @done: UIC command completion

utp_cmd_rsp_t

typedef struct utp_cmd_rsp utp_cmd_rsp_t

struct utp_cmd_rsp - Response UPIU structure @residual_transfer_count: Residual transfer count DW-3 @reserved: Reserved double words DW-4 to DW-7 @sense_data_len: Sense data length DW-8 U16 @sense_data: Sense data field DW-8 to DW-12

utp_task_req_desc_t

typedef struct utp_task_req_desc utp_task_req_desc_t

utp_transfer_cmd_desc_t

typedef struct utp_transfer_cmd_desc utp_transfer_cmd_desc_t

utp_transfer_req_desc_t

typedef struct utp_transfer_req_desc utp_transfer_req_desc_t

struct utp_transfer_req_desc - UTRD structure @header: UTRD header DW-0 to DW-3 @command_desc_base_addr_lo: UCD base address low DW-4 @command_desc_base_addr_hi: UCD base address high DW-5 @response_upiu_length: response UPIU length DW-6 @response_upiu_offset: response UPIU offset DW-6 @prd_table_length: Physical region descriptor length DW-7 @prd_table_offset: Physical region descriptor offset DW-7

utp_upiu_cmd_t

typedef struct utp_upiu_cmd utp_upiu_cmd_t

struct utp_upiu_cmd - Command UPIU structure @data_transfer_len: Data Transfer Length DW-3 @cdb: Command Descriptor Block CDB DW-4 to DW-7

utp_upiu_header_t

typedef struct utp_upiu_header utp_upiu_header_t

struct utp_upiu_header - UPIU header structure @dword_0: UPIU header DW-0 @dword_1: UPIU header DW-1 @dword_2: UPIU header DW-2

utp_upiu_query_t

typedef struct utp_upiu_query utp_upiu_query_t

struct utp_upiu_query - upiu request buffer structure for query request.

@opcode: command to perform B-0 @idn: a value that indicates the particular type of data B-1 @index: Index to further identify data B-2 @selector: Index to further identify data B-3 @reserved_osf: spec reserved field B-4,5 @length: number of descriptor bytes to read/write B-6,7 @value: Attribute value to be written DW-5 @reserved: spec reserved DW-6,7

utp_upiu_req_t

typedef struct utp_upiu_req utp_upiu_req_t

struct utp_upiu_req - general upiu request structure @header:UPIU header structure DW-0 to DW-2 @sc: fields structure for scsi command DW-3 to DW-7 @qr: fields structure for query request DW-3 to DW-7

utp_upiu_rsp_t

typedef struct utp_upiu_rsp utp_upiu_rsp_t

struct utp_upiu_rsp - general upiu response structure @header: UPIU header structure DW-0 to DW-2 @sr: fields structure for scsi command DW-3 to DW-12 @qr: fields structure for query request DW-3 to DW-7

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
UFSHCI_VERSION_10
UFSHCI_VERSION_11
UFSHCI_VERSION_20
UFSHCI_VERSION_21

anonymous enum

anonymous enum

Enumerator
INTERRUPT_MASK_ALL_VER_10
INTERRUPT_MASK_RW_VER_10
INTERRUPT_MASK_ALL_VER_11
INTERRUPT_MASK_ALL_VER_21

anonymous enum

anonymous enum

Enumerator
PWR_OK
PWR_LOCAL
PWR_REMOTE
PWR_BUSY
PWR_ERROR_CAP
PWR_FATAL_ERROR

anonymous enum

anonymous enum

Enumerator
TASK_REQ_UPIU_SIZE_DWORDS
TASK_RSP_UPIU_SIZE_DWORDS
ALIGNED_UPIU_SIZE

anonymous enum

anonymous enum

Enumerator
UTP_CMD_TYPE_SCSI
UTP_CMD_TYPE_UFS
UTP_CMD_TYPE_DEV_MANAGE

anonymous enum

anonymous enum

Enumerator
UTP_CMD_TYPE_UFS_STORAGE

anonymous enum

anonymous enum

Enumerator
UTP_SCSI_COMMAND
UTP_NATIVE_UFS_COMMAND
UTP_DEVICE_MANAGEMENT_FUNCTION
UTP_REQ_DESC_INT_CMD

anonymous enum

anonymous enum

Enumerator
UTP_NO_DATA_TRANSFER
UTP_HOST_TO_DEVICE
UTP_DEVICE_TO_HOST

anonymous enum

anonymous enum

Enumerator
OCS_SUCCESS
OCS_INVALID_CMD_TABLE_ATTR
OCS_INVALID_PRDT_ATTR
OCS_MISMATCH_DATA_BUF_SIZE
OCS_MISMATCH_RESP_UPIU_SIZE
OCS_PEER_COMM_FAILURE
OCS_ABORTED
OCS_FATAL_ERROR
OCS_INVALID_COMMAND_STATUS
MASK_OCS

anonymous enum

anonymous enum

Enumerator
UFS_ABORT_TASK
UFS_ABORT_TASK_SET
UFS_CLEAR_TASK_SET
UFS_LOGICAL_RESET
UFS_QUERY_TASK
UFS_QUERY_TASK_SET

anonymous enum

anonymous enum

Enumerator
UPIU_TRANSACTION_NOP_OUT
UPIU_TRANSACTION_COMMAND
UPIU_TRANSACTION_DATA_OUT
UPIU_TRANSACTION_TASK_REQ
UPIU_TRANSACTION_QUERY_REQ

anonymous enum

anonymous enum

Enumerator
UPIU_TRANSACTION_NOP_IN
UPIU_TRANSACTION_RESPONSE
UPIU_TRANSACTION_DATA_IN
UPIU_TRANSACTION_TASK_RSP
UPIU_TRANSACTION_READY_XFER
UPIU_TRANSACTION_QUERY_RSP
UPIU_TRANSACTION_REJECT_UPIU

anonymous enum

anonymous enum

Enumerator
UPIU_CMD_FLAGS_NONE
UPIU_CMD_FLAGS_WRITE
UPIU_CMD_FLAGS_READ

anonymous enum

anonymous enum

Enumerator
UPIU_TASK_ATTR_SIMPLE
UPIU_TASK_ATTR_ORDERED
UPIU_TASK_ATTR_HEADQ
UPIU_TASK_ATTR_ACA

anonymous enum

anonymous enum

Enumerator
UPIU_QUERY_FUNC_STANDARD_READ_REQUEST
UPIU_QUERY_FUNC_STANDARD_WRITE_REQUEST

anonymous enum

anonymous enum

Enumerator
MASK_SCSI_STATUS
MASK_TASK_RESPONSE
MASK_RSP_UPIU_RESULT
MASK_QUERY_DATA_SEG_LEN
MASK_RSP_UPIU_DATA_SEG_LEN
MASK_RSP_EXCEPTION_EVENT
MASK_TM_SERVICE_RESP
MASK_TM_FUNC

anonymous enum

anonymous enum

Enumerator
QUERY_RESULT_SUCCESS
QUERY_RESULT_NOT_READABLE
QUERY_RESULT_NOT_WRITEABLE
QUERY_RESULT_ALREADY_WRITTEN
QUERY_RESULT_INVALID_LENGTH
QUERY_RESULT_INVALID_VALUE
QUERY_RESULT_INVALID_SELECTOR
QUERY_RESULT_INVALID_INDEX
QUERY_RESULT_INVALID_IDN
QUERY_RESULT_INVALID_OPCODE
QUERY_RESULT_GENERAL_FAILURE

anonymous enum

anonymous enum

Enumerator
UPIU_COMMAND_SET_TYPE_SCSI
UPIU_COMMAND_SET_TYPE_UFS
UPIU_COMMAND_SET_TYPE_QUERY

anonymous enum

anonymous enum

Enumerator
UFSHCD_MAX_CHANNEL
UFSHCD_MAX_ID

anonymous enum

anonymous enum

Enumerator
UIC_CMD_RESULT_SUCCESS
UIC_CMD_RESULT_INVALID_ATTR
UIC_CMD_RESULT_FAILURE
UIC_CMD_RESULT_INVALID_ATTR_VALUE
UIC_CMD_RESULT_READ_ONLY_ATTR
UIC_CMD_RESULT_WRITE_ONLY_ATTR
UIC_CMD_RESULT_BAD_INDEX
UIC_CMD_RESULT_LOCKED_ATTR
UIC_CMD_RESULT_BAD_TEST_FEATURE_INDEX
UIC_CMD_RESULT_PEER_COMM_FAILURE
UIC_CMD_RESULT_BUSY
UIC_CMD_RESULT_DME_FAILURE

attr_idn

enum attr_idn

Enumerator
QUERY_ATTR_IDN_BOOT_LU_EN
QUERY_ATTR_IDN_RESERVED
QUERY_ATTR_IDN_POWER_MODE
QUERY_ATTR_IDN_ACTIVE_ICC_LVL
QUERY_ATTR_IDN_OOO_DATA_EN
QUERY_ATTR_IDN_BKOPS_STATUS
QUERY_ATTR_IDN_PURGE_STATUS
QUERY_ATTR_IDN_MAX_DATA_IN
QUERY_ATTR_IDN_MAX_DATA_OUT
QUERY_ATTR_IDN_DYN_CAP_NEEDED
QUERY_ATTR_IDN_REF_CLK_FREQ
QUERY_ATTR_IDN_CONF_DESC_LOCK
QUERY_ATTR_IDN_MAX_NUM_OF_RTT
QUERY_ATTR_IDN_EE_CONTROL
QUERY_ATTR_IDN_EE_STATUS
QUERY_ATTR_IDN_SECONDS_PASSED
QUERY_ATTR_IDN_CNTX_CONF
QUERY_ATTR_IDN_CORR_PRG_BLK_NUM
QUERY_ATTR_IDN_RESERVED2
QUERY_ATTR_IDN_RESERVED3
QUERY_ATTR_IDN_FFU_STATUS
QUERY_ATTR_IDN_PSA_STATE
QUERY_ATTR_IDN_PSA_DATA_SIZE

desc_header_offset

enum desc_header_offset

Enumerator
QUERY_DESC_LENGTH_OFFSET
QUERY_DESC_DESC_TYPE_OFFSET

desc_idn

enum desc_idn

Enumerator
QUERY_DESC_IDN_DEVICE
QUERY_DESC_IDN_CONFIGURATION
QUERY_DESC_IDN_UNIT
QUERY_DESC_IDN_RFU_0
QUERY_DESC_IDN_INTERCONNECT
QUERY_DESC_IDN_STRING
QUERY_DESC_IDN_RFU_1
QUERY_DESC_IDN_GEOMETRY
QUERY_DESC_IDN_POWER
QUERY_DESC_IDN_HEALTH
QUERY_DESC_IDN_MAX

dev_cmd_type

enum dev_cmd_type

Enumerator
DEV_CMD_TYPE_NOP
DEV_CMD_TYPE_QUERY

device_desc_param

enum device_desc_param

Enumerator
DEVICE_DESC_PARAM_LEN
DEVICE_DESC_PARAM_TYPE
DEVICE_DESC_PARAM_DEVICE_TYPE
DEVICE_DESC_PARAM_DEVICE_CLASS
DEVICE_DESC_PARAM_DEVICE_SUB_CLASS
DEVICE_DESC_PARAM_PRTCL
DEVICE_DESC_PARAM_NUM_LU
DEVICE_DESC_PARAM_NUM_WLU
DEVICE_DESC_PARAM_BOOT_ENBL
DEVICE_DESC_PARAM_DESC_ACCSS_ENBL
DEVICE_DESC_PARAM_INIT_PWR_MODE
DEVICE_DESC_PARAM_HIGH_PR_LUN
DEVICE_DESC_PARAM_SEC_RMV_TYPE
DEVICE_DESC_PARAM_SEC_LU
DEVICE_DESC_PARAM_BKOP_TERM_LT
DEVICE_DESC_PARAM_ACTVE_ICC_LVL
DEVICE_DESC_PARAM_SPEC_VER
DEVICE_DESC_PARAM_MANF_DATE
DEVICE_DESC_PARAM_MANF_NAME
DEVICE_DESC_PARAM_PRDCT_NAME
DEVICE_DESC_PARAM_SN
DEVICE_DESC_PARAM_OEM_ID
DEVICE_DESC_PARAM_MANF_ID
DEVICE_DESC_PARAM_UD_OFFSET
DEVICE_DESC_PARAM_UD_LEN
DEVICE_DESC_PARAM_RTT_CAP
DEVICE_DESC_PARAM_FRQ_RTC
DEVICE_DESC_PARAM_UFS_FEAT
DEVICE_DESC_PARAM_FFU_TMT
DEVICE_DESC_PARAM_Q_DPTH
DEVICE_DESC_PARAM_DEV_VER
DEVICE_DESC_PARAM_NUM_SEC_WPA
DEVICE_DESC_PARAM_PSA_MAX_DATA
DEVICE_DESC_PARAM_PSA_TMT
DEVICE_DESC_PARAM_PRDCT_REV

flag_idn

enum flag_idn

Enumerator
QUERY_FLAG_IDN_FDEVICEINIT
QUERY_FLAG_IDN_PERMANENT_WPE
QUERY_FLAG_IDN_PWR_ON_WPE
QUERY_FLAG_IDN_BKOPS_EN
QUERY_FLAG_IDN_LIFE_SPAN_MODE_ENABLE
QUERY_FLAG_IDN_PURGE_ENABLE
QUERY_FLAG_IDN_RESERVED2
QUERY_FLAG_IDN_FPHYRESOURCEREMOVAL
QUERY_FLAG_IDN_BUSY_RTC
QUERY_FLAG_IDN_RESERVED3
QUERY_FLAG_IDN_PERMANENTLY_DISABLE_FW_UPDATE

link_status

enum link_status

Enumerator
UFSHCD_LINK_IS_DOWN
UFSHCD_LINK_IS_UP

query_opcode

enum query_opcode

Enumerator
UPIU_QUERY_OPCODE_NOP
UPIU_QUERY_OPCODE_READ_DESC
UPIU_QUERY_OPCODE_WRITE_DESC
UPIU_QUERY_OPCODE_READ_ATTR
UPIU_QUERY_OPCODE_WRITE_ATTR
UPIU_QUERY_OPCODE_READ_FLAG
UPIU_QUERY_OPCODE_SET_FLAG
UPIU_QUERY_OPCODE_CLEAR_FLAG
UPIU_QUERY_OPCODE_TOGGLE_FLAG

ufs_desc_def_size

enum ufs_desc_def_size

Enumerator
QUERY_DESC_DEVICE_DEF_SIZE
QUERY_DESC_CONFIGURATION_DEF_SIZE
QUERY_DESC_UNIT_DEF_SIZE
QUERY_DESC_INTERCONNECT_DEF_SIZE
QUERY_DESC_GEOMETRY_DEF_SIZE
QUERY_DESC_POWER_DEF_SIZE
QUERY_DESC_HEALTH_DEF_SIZE

ufs_dev_pwr_mode

enum ufs_dev_pwr_mode

Enumerator
UFS_ACTIVE_PWR_MODE
UFS_SLEEP_PWR_MODE
UFS_POWERDOWN_PWR_MODE

ufs_notify_change_status

enum ufs_notify_change_status

Enumerator
PRE_CHANGE
POST_CHANGE

ufs_ref_clk_freq

enum ufs_ref_clk_freq

Enumerator
REF_CLK_FREQ_19_2_MHZ
REF_CLK_FREQ_26_MHZ
REF_CLK_FREQ_38_4_MHZ
REF_CLK_FREQ_52_MHZ
REF_CLK_FREQ_INVAL

uic_cmd_dme

enum uic_cmd_dme

Enumerator
UIC_CMD_DME_GET
UIC_CMD_DME_SET
UIC_CMD_DME_PEER_GET
UIC_CMD_DME_PEER_SET
UIC_CMD_DME_POWERON
UIC_CMD_DME_POWEROFF
UIC_CMD_DME_ENABLE
UIC_CMD_DME_RESET
UIC_CMD_DME_END_PT_RST
UIC_CMD_DME_LINK_STARTUP
UIC_CMD_DME_HIBER_ENTER
UIC_CMD_DME_HIBER_EXIT
UIC_CMD_DME_TEST_MODE

uic_link_state

enum uic_link_state

Enumerator
UIC_LINK_OFF_STATE
UIC_LINK_ACTIVE_STATE
UIC_LINK_HIBERN8_STATE
