sys-sid.c File Reference

#include <barrier.h>
#include <io.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <log.h>
#include <common.h>
#include "sys-sid.h"

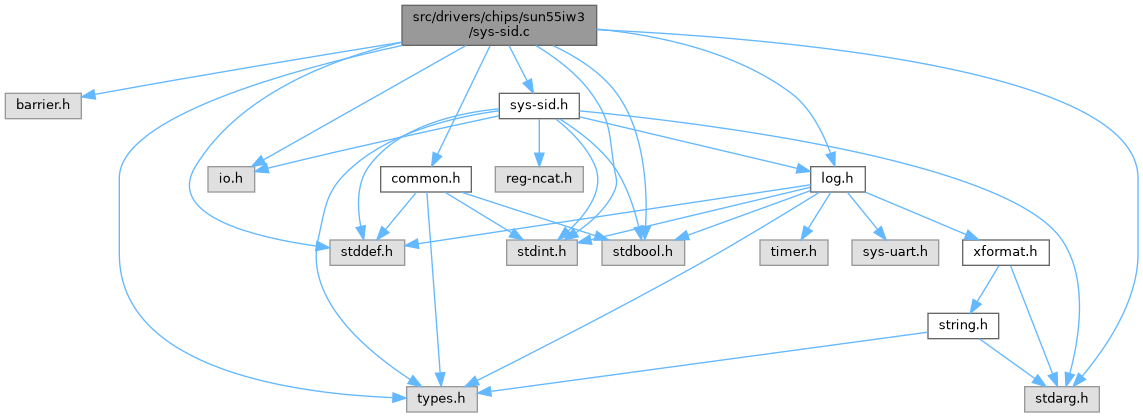

Include dependency graph for sys-sid.c:

Classes
struct	sid_section_t

Enumerations
enum	{ SID_PRCTL = SUNXI_SID_BASE + 0x040 , SID_PRKEY = SUNXI_SID_BASE + 0x050 , SID_RDKEY = SUNXI_SID_BASE + 0x060 , EFUSE_HV_SWITCH = SUNXI_RTC_BASE + 0x204 }

Functions
uint32_t	syter_efuse_read (uint32_t offset)
	Read a value from the eFuse memory.
void	syter_efuse_write (uint32_t offset, uint32_t value)
	Write a value to the eFuse memory.
void	syter_efuse_dump (void)
	Dump the contents of the eFuse memory.

Variables
const struct sid_section_t	sids [] = {{"chipid", 0x00, 128}, {"brom-config", 0x10, 32}, {"aldo-fix", 0x14, 1}, {"thermal-sensor", 0x30, 64}, {"tf-zone", 0x28, 128}, {"oem-program", 0x3C, 160}, {"write-protect", 0x80, 32}, {"read-protect", 0x84, 32}, {"lcjs", 0x88, 32}, {"attr", 0x90, 32}, {"huk", 0x94, 192}, {"reserved1", 0xAC, 64}, {"rotpk", 0xB4, 256}, {"ssk", 0xD4, 128}, {"rssk", 0xF4, 256}, {"sn", 0xB0, 192}, {"nv1", 0x124, 32}, {"nv2", 0x128, 32}, {"hdcp-hash", 0x114, 128}, {"backup-key", 0x164, 192}, {"backup-key2", 0x1A4, 72}}

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
SID_PRCTL
SID_PRKEY
SID_RDKEY
EFUSE_HV_SWITCH

Function Documentation

syter_efuse_dump()

void syter_efuse_dump

(

void

)

Dump the contents of the eFuse memory.

This function outputs the current contents of the eFuse memory for diagnostic purposes. The format of the output is implementation-dependent.

syter_efuse_read()

uint32_t syter_efuse_read

(

uint32_t

offset

)

Read a value from the eFuse memory.

This function reads a 32-bit value from the specified eFuse offset.

Parameters

offset

The offset in the eFuse memory from which to read the value.

Returns

The 32-bit value read from the specified eFuse offset.

syter_efuse_write()

void syter_efuse_write	(	uint32_t	offset,
		uint32_t	value
	)

Write a value to the eFuse memory.

This function writes a 32-bit value to the specified eFuse offset.

Parameters

offset	The offset in the eFuse memory to which the value will be written.
value	The 32-bit value to be written to the eFuse memory.

Variable Documentation

sids

const struct sid_section_t sids[] = {{"chipid", 0x00, 128}, {"brom-config", 0x10, 32}, {"aldo-fix", 0x14, 1}, {"thermal-sensor", 0x30, 64}, {"tf-zone", 0x28, 128}, {"oem-program", 0x3C, 160}, {"write-protect", 0x80, 32}, {"read-protect", 0x84, 32}, {"lcjs", 0x88, 32}, {"attr", 0x90, 32}, {"huk", 0x94, 192}, {"reserved1", 0xAC, 64}, {"rotpk", 0xB4, 256}, {"ssk", 0xD4, 128}, {"rssk", 0xF4, 256}, {"sn", 0xB0, 192}, {"nv1", 0x124, 32}, {"nv2", 0x128, 32}, {"hdcp-hash", 0x114, 128}, {"backup-key", 0x164, 192}, {"backup-key2", 0x1A4, 72}}
