sunxi_spi_t Struct Reference

SPI Device Configuration Structure. More...

#include <sys-spi.h>

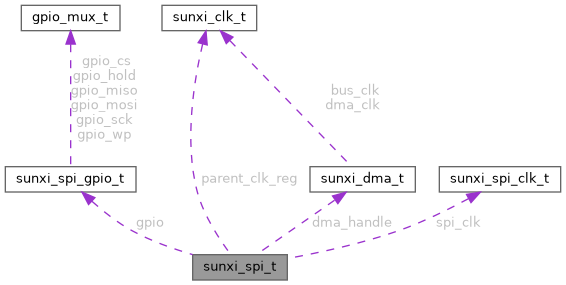

Collaboration diagram for sunxi_spi_t:

Public Attributes
uint32_t	base
	Base address of the SPI peripheral.
uint8_t	id
	SPI device ID.
uint32_t	clk_rate
	Clock rate for the SPI device.
sunxi_spi_gpio_t	gpio
	GPIO configuration for the SPI device.
sunxi_dma_t *	dma_handle
	DMA handle for the SPI device.
sunxi_clk_t	parent_clk_reg
	Parent clock register configuration.
sunxi_spi_clk_t	spi_clk
	SPI clock configuration.

Detailed Description

SPI Device Configuration Structure.

This struct holds the configuration for an SPI device, including its clock and GPIO settings.

Member Data Documentation

base

uint32_t sunxi_spi_t::base

Base address of the SPI peripheral.

clk_rate

uint32_t sunxi_spi_t::clk_rate

Clock rate for the SPI device.

dma_handle

sunxi_dma_t* sunxi_spi_t::dma_handle

DMA handle for the SPI device.

gpio

sunxi_spi_gpio_t sunxi_spi_t::gpio

GPIO configuration for the SPI device.

id

uint8_t sunxi_spi_t::id

SPI device ID.

parent_clk_reg

sunxi_clk_t sunxi_spi_t::parent_clk_reg

Parent clock register configuration.

spi_clk

sunxi_spi_clk_t sunxi_spi_t::spi_clk

SPI clock configuration.

---

The documentation for this struct was generated from the following file:

• include/drivers/sys-spi.h
