main.c File Reference

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <config.h>
#include <log.h>
#include <timer.h>
#include <common.h>
#include <jmp.h>
#include <mmu.h>
#include <smalloc.h>
#include <sstdlib.h>
#include <string.h>
#include <cli.h>
#include <cli_shell.h>
#include <cli_termesc.h>
#include <sys-clk.h>
#include <sys-dram.h>
#include <sys-i2c.h>
#include <sys-rtc.h>
#include <sys-sdcard.h>
#include <sys-sid.h>
#include <sys-spi.h>
#include <pmu/axp.h>
#include <fdt_wrapper.h>
#include <ff.h>
#include <sys-sdhci.h>
#include <uart.h>

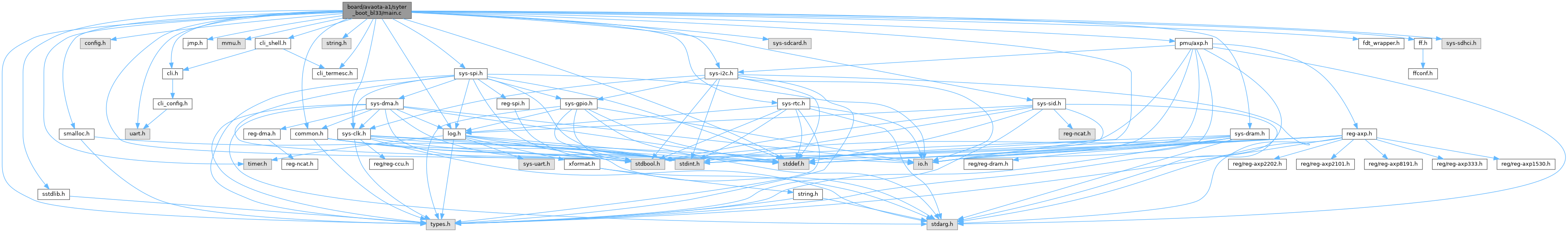

Include dependency graph for main.c:

Classes
struct	atf_head
struct	image_info_t

Macros
#define	CONFIG_BL31_FILENAME   "bl31.bin"
#define	CONFIG_BL31_LOAD_ADDR   (0x48000000)
#define	CONFIG_DTB_FILENAME   "sunxi.dtb"
#define	CONFIG_DTB_LOAD_ADDR   (0x4a200000)
#define	CONFIG_KERNEL_FILENAME   "Image"
#define	CONFIG_KERNEL_LOAD_ADDR   (0x40080000)
#define	CONFIG_BL33_FILENAME   "syter_bl33.bin"
#define	CONFIG_BL33_LOAD_ADDR   (0x4a000000)
#define	CONFIG_SDMMC_SPEED_TEST_SIZE   1024
#define	CONFIG_DEFAULT_BOOTDELAY   0
#define	CONFIG_HEAP_BASE   (0x40800000)
#define	CONFIG_HEAP_SIZE   (16 * 1024 * 1024)
#define	FILENAME_MAX_LEN   16
#define	CHUNK_SIZE   0x20000

Typedefs
typedef struct atf_head	atf_head_t

Functions
void	enable_sram_a3 ()
void	rtc_set_vccio_det_spare ()
void	set_rpio_power_mode (void)
void	sunxi_nsi_init ()
void	gicr_set_waker (void)
static int	fatfs_loadimage (char *filename, BYTE *dest)
static int	load_sdcard (image_info_t *image)
void	jmp_to_arm64 (uint32_t addr)
static int	abortboot_single_key (int bootdelay)
	msh_declare_command (boot)
	msh_define_help (boot, "boot to linux", "Usage: boot\n")
int	cmd_boot (int argc, const char **argv)
	msh_declare_command (reload)
	msh_define_help (reload, "rescan TF Card and reload DTB", "Usage: reload\n")
int	cmd_reload (int argc, const char **argv)
int	main (void)

Variables
sunxi_serial_t	uart_dbg
sunxi_i2c_t	i2c_pmu
sdhci_t	sdhci0
uint32_t	dram_para [32]
image_info_t	image
const msh_command_entry	commands []

Macro Definition Documentation

CHUNK_SIZE

#define CHUNK_SIZE   0x20000

CONFIG_BL31_FILENAME

#define CONFIG_BL31_FILENAME   "bl31.bin"

CONFIG_BL31_LOAD_ADDR

#define CONFIG_BL31_LOAD_ADDR   (0x48000000)

CONFIG_BL33_FILENAME

#define CONFIG_BL33_FILENAME   "syter_bl33.bin"

CONFIG_BL33_LOAD_ADDR

#define CONFIG_BL33_LOAD_ADDR   (0x4a000000)

CONFIG_DEFAULT_BOOTDELAY

#define CONFIG_DEFAULT_BOOTDELAY   0

CONFIG_DTB_FILENAME

#define CONFIG_DTB_FILENAME   "sunxi.dtb"

CONFIG_DTB_LOAD_ADDR

#define CONFIG_DTB_LOAD_ADDR   (0x4a200000)

CONFIG_HEAP_BASE

#define CONFIG_HEAP_BASE   (0x40800000)

CONFIG_HEAP_SIZE

#define CONFIG_HEAP_SIZE   (16 * 1024 * 1024)

CONFIG_KERNEL_FILENAME

#define CONFIG_KERNEL_FILENAME   "Image"

CONFIG_KERNEL_LOAD_ADDR

#define CONFIG_KERNEL_LOAD_ADDR   (0x40080000)

CONFIG_SDMMC_SPEED_TEST_SIZE

#define CONFIG_SDMMC_SPEED_TEST_SIZE   1024

FILENAME_MAX_LEN

#define FILENAME_MAX_LEN   16

Typedef Documentation

atf_head_t

typedef struct atf_head atf_head_t

Function Documentation

abortboot_single_key()

static int abortboot_single_key ( int  bootdelay )

static

cmd_boot()

int cmd_boot	(	int	argc,
		const char **	argv
	)

cmd_reload()

int cmd_reload	(	int	argc,
		const char **	argv
	)

enable_sram_a3()

void enable_sram_a3 ( )

extern

fatfs_loadimage()

static int fatfs_loadimage ( char *  filename, BYTE *  dest  )

static

gicr_set_waker()

void gicr_set_waker ( void  )

extern

jmp_to_arm64()

void jmp_to_arm64

(

uint32_t

addr

)

load_sdcard()

static int load_sdcard ( image_info_t *  image )

static

main()

int main

(

void

)

msh_declare_command() [1/2]

msh_declare_command

(

boot

)

msh_declare_command() [2/2]

msh_declare_command

(

reload

)

msh_define_help() [1/2]

msh_define_help	(	boot	,
		"boot to linux"	,
		"Usage: boot\n"
	)

msh_define_help() [2/2]

msh_define_help	(	reload	,
		"rescan TF Card and reload DTB"	,
		"Usage: reload\n"
	)

rtc_set_vccio_det_spare()

void rtc_set_vccio_det_spare ( )

extern

set_rpio_power_mode()

void set_rpio_power_mode ( void  )

extern

sunxi_nsi_init()

void sunxi_nsi_init ( )

extern

Variable Documentation

commands

const msh_command_entry commands[]

Initial value:

= {
        msh_define_command(boot),
        msh_define_command(reload),
        msh_command_end,
}

dram_para

uint32_t dram_para[32]

extern

i2c_pmu

sunxi_i2c_t i2c_pmu

extern


image_info_t image

sdhci0

sdhci_t sdhci0

extern

uart_dbg

sunxi_serial_t uart_dbg

extern
