axp.h File Reference

#include <io.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <sys-i2c.h>
#include "reg-axp.h"

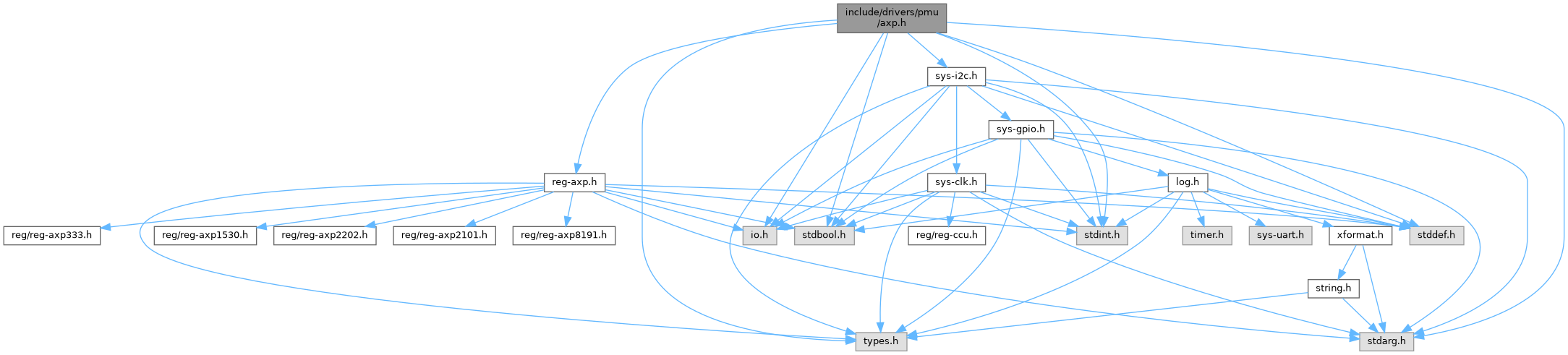

Include dependency graph for axp.h:

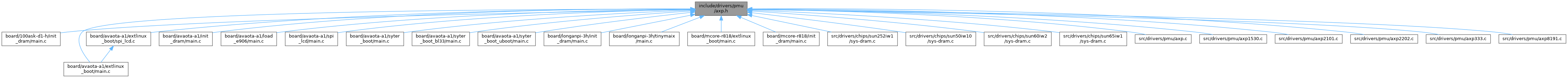

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_axp_step_info
	Structure describing a voltage step of the power domain. More...
struct	_axp_contrl_info
	Structure describing the control information of a power domain. More...

Macros
#define	DEFINE_AXP_PMU(name)
	Macro to define PMU functions for a specific AXP PMU chip.

Typedefs
typedef struct _axp_step_info	axp_step_info_t
	Structure describing a voltage step of the power domain.
typedef struct _axp_contrl_info	axp_contrl_info
	Structure describing the control information of a power domain.

Functions
int	axp_set_vol (sunxi_i2c_t *i2c_dev, char *name, int set_vol, int onoff, axp_contrl_info *axp_ctrl_tbl, uint8_t axp_ctrl_tbl_size, uint8_t axp_addr)
	Set the voltage for a specific power domain controlled by AXP.
int	axp_get_vol (sunxi_i2c_t *i2c_dev, char *name, axp_contrl_info *axp_ctrl_tbl, uint8_t axp_ctrl_tbl_size, uint8_t axp_addr)
	Get the voltage value for a specific power domain controlled by AXP.
	DEFINE_AXP_PMU (axp1530)
	DEFINE_AXP_PMU (axp2202)
	DEFINE_AXP_PMU (axp2101)
	DEFINE_AXP_PMU (axp8191)
	DEFINE_AXP_PMU (axp333)
int	pmu_axp1530_set_dual_phase (sunxi_i2c_t *i2c_dev)
	Set the dual phase function on the AXP1530 PMU.

Macro Definition Documentation

DEFINE_AXP_PMU

#define DEFINE_AXP_PMU

(

name

)

Value:

    int pmu_##name##_init(sunxi_i2c_t *i2c_dev);                                        \
    int pmu_##name##_get_vol(sunxi_i2c_t *i2c_dev, char *name);                         \
    int pmu_##name##_set_vol(sunxi_i2c_t *i2c_dev, char *name, int set_vol, int onoff); \
    void pmu_##name##_dump(sunxi_i2c_t *i2c_dev);

Macro to define PMU functions for a specific AXP PMU chip.

This macro generates a set of function prototypes for controlling and interacting with a specified AXP Power Management Unit (PMU) chip.

The generated functions are:

• pmu_<name>_init: Initializes the PMU for the specified device.
• pmu_<name>_get_vol: Retrieves the voltage of a specified power rail.
• pmu_<name>_set_vol: Sets the voltage of a specified power rail.
• pmu_<name>_dump: Dumps the internal registers and status of the PMU.

Example usage:

DEFINE_AXP_PMU(axp2202);

This will generate the following function prototypes:

• int pmu_axp2202_init(sunxi_i2c_t *i2c_dev);
• int pmu_axp2202_get_vol(sunxi_i2c_t *i2c_dev, char *name);
• int pmu_axp2202_set_vol(sunxi_i2c_t *i2c_dev, char *name, int set_vol, int onoff);
• void pmu_axp2202_dump(sunxi_i2c_t *i2c_dev);

Parameters

name	The name of the PMU chip (e.g., axp2202, axp221, etc.).

Typedef Documentation

axp_contrl_info

typedef struct _axp_contrl_info axp_contrl_info

Structure describing the control information of a power domain.

axp_step_info_t

typedef struct _axp_step_info axp_step_info_t

Structure describing a voltage step of the power domain.

Function Documentation

axp_get_vol()

int axp_get_vol	(	sunxi_i2c_t *	i2c_dev,
		char *	name,
		axp_contrl_info *	axp_ctrl_tbl,
		uint8_t	axp_ctrl_tbl_size,
		uint8_t	axp_addr
	)

Get the voltage value for a specific power domain controlled by AXP.

Parameters

i2c_dev	Pointer to the I2C device structure.
name	Name of the power domain.
axp_ctrl_tbl	Pointer to the AXP control information table.
axp_ctrl_tbl_size	Size of the AXP control information table.
axp_addr	AXP device address.

Returns

The voltage value of the specified power domain.

axp_set_vol()

int axp_set_vol	(	sunxi_i2c_t *	i2c_dev,
		char *	name,
		int	set_vol,
		int	onoff,
		axp_contrl_info *	axp_ctrl_tbl,
		uint8_t	axp_ctrl_tbl_size,
		uint8_t	axp_addr
	)

Set the voltage for a specific power domain controlled by AXP.

Parameters

i2c_dev	Pointer to the I2C device structure.
name	Name of the power domain.
set_vol	Voltage value to set.
onoff	Whether to turn on or off the power domain (1 for on, 0 for off).
axp_ctrl_tbl	Pointer to the AXP control information table.
axp_ctrl_tbl_size	Size of the AXP control information table.
axp_addr	AXP device address.

Returns

Integer indicating the success status of the operation.

DEFINE_AXP_PMU() [1/5]

DEFINE_AXP_PMU

(

axp1530

)

DEFINE_AXP_PMU() [2/5]

DEFINE_AXP_PMU

(

axp2101

)

DEFINE_AXP_PMU() [3/5]

DEFINE_AXP_PMU

(

axp2202

)

DEFINE_AXP_PMU() [4/5]

DEFINE_AXP_PMU

(

axp333

)

DEFINE_AXP_PMU() [5/5]

DEFINE_AXP_PMU

(

axp8191

)

pmu_axp1530_set_dual_phase()

int pmu_axp1530_set_dual_phase

(

sunxi_i2c_t *

i2c_dev

)

Set the dual phase function on the AXP1530 PMU.

Parameters

i2c_dev

Pointer to the I2C device structure.

Returns

0 if successful, -1 if an error occurred.
