axp1530.c File Reference

#include <io.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <common.h>
#include <log.h>
#include <pmu/axp.h>

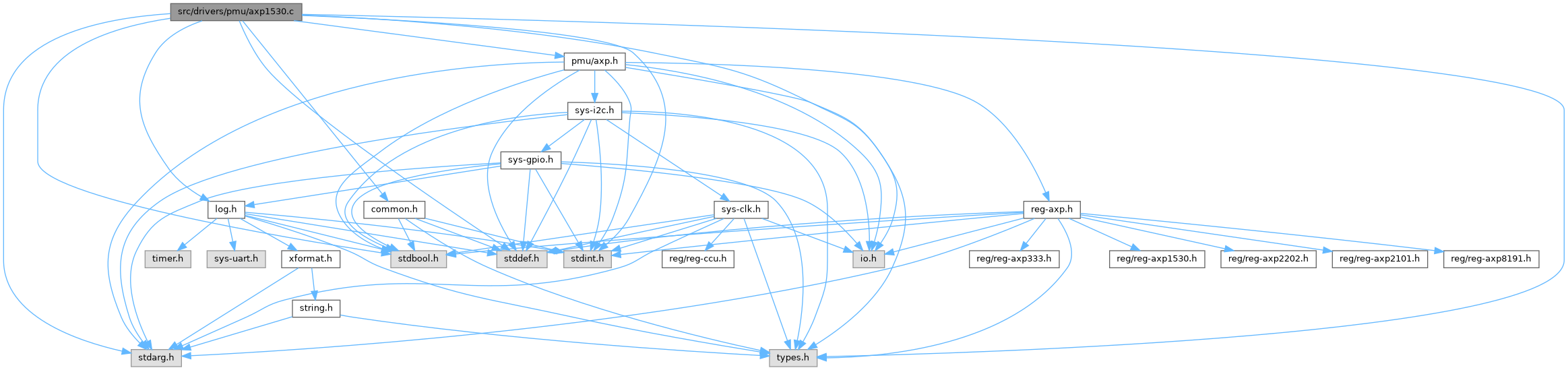

Include dependency graph for axp1530.c:

Functions
int	pmu_axp1530_init (sunxi_i2c_t *i2c_dev)
int	pmu_axp1530_set_dual_phase (sunxi_i2c_t *i2c_dev)
	Set the dual phase function on the AXP1530 PMU.
int	pmu_axp1530_set_vol (sunxi_i2c_t *i2c_dev, char *name, int set_vol, int onoff)
int	pmu_axp1530_get_vol (sunxi_i2c_t *i2c_dev, char *name)
void	pmu_axp1530_dump (sunxi_i2c_t *i2c_dev)

Variables
static axp_contrl_info	axp_ctrl_tbl []

Function Documentation

pmu_axp1530_dump()

void pmu_axp1530_dump

(

sunxi_i2c_t *

i2c_dev

)

pmu_axp1530_get_vol()

int pmu_axp1530_get_vol	(	sunxi_i2c_t *	i2c_dev,
		char *	name
	)

pmu_axp1530_init()

int pmu_axp1530_init

(

sunxi_i2c_t *

i2c_dev

)

pmu_axp1530_set_dual_phase()

int pmu_axp1530_set_dual_phase

(

sunxi_i2c_t *

i2c_dev

)

Set the dual phase function on the AXP1530 PMU.

Parameters

i2c_dev

Pointer to the I2C device structure.

Returns

0 if successful, -1 if an error occurred.

pmu_axp1530_set_vol()

int pmu_axp1530_set_vol	(	sunxi_i2c_t *	i2c_dev,
		char *	name,
		int	set_vol,
		int	onoff
	)

Variable Documentation

axp_ctrl_tbl

axp_contrl_info axp_ctrl_tbl[]

static

Initial value:

= {
    { "dcdc1", 500, 3400, AXP1530_DC1OUT_VOL, 0x7f, AXP1530_OUTPUT_POWER_ON_OFF_CTL, 0, 0,
    { {500, 1200, 10}, {1220, 1540, 20}, {1600, 3400, 100}, } },

    { "dcdc2", 500, 1540, AXP1530_DC2OUT_VOL, 0x7f, AXP1530_OUTPUT_POWER_ON_OFF_CTL, 1, 0,
    { {500, 1200, 10}, {1220, 1540, 20}, } },

    { "dcdc3", 500, 1840, AXP1530_DC3OUT_VOL, 0x7f, AXP1530_OUTPUT_POWER_ON_OFF_CTL, 2, 0,
    { {500, 1200, 10}, {1220, 1840, 20}, } },

    { "aldo1", 500, 3500, AXP1530_ALDO1OUT_VOL, 0x1f, AXP1530_OUTPUT_POWER_ON_OFF_CTL, 3, 0,
    { {500, 3500, 100}, } },

    { "dldo1", 500, 3500, AXP1530_DLDO1OUT_VOL, 0x1f, AXP1530_OUTPUT_POWER_ON_OFF_CTL, 4, 0,
    { {500, 3500, 100}, } },
}
