usb_mass.c File Reference

#include <io.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <common.h>
#include <log.h>
#include <sys-sdcard.h>
#include "usb.h"
#include "usb_defs.h"

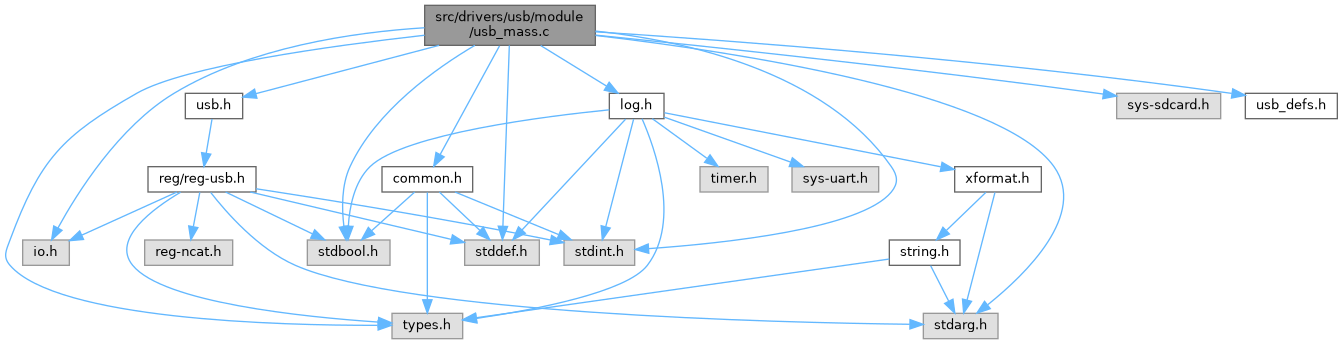

Include dependency graph for usb_mass.c:

Classes
struct	mass_trans_set
struct	umass_bbb_cbw_t
struct	umass_bbb_csw_t

Macros
#define	SUNXI_USB_STRING_LANGIDS   (0)
#define	SUNXI_USB_STRING_IMANUFACTURER   (1)
#define	SUNXI_USB_STRING_IPRODUCT   (2)
#define	SUNXI_USB_STRING_ISERIALNUMBER   (3)
#define	SUNXI_USB_MASS_DEV_MAX   (4)
#define	SUNXI_USB_MASS_IDLE   (0)
#define	SUNXI_USB_MASS_SETUP   (1)
#define	SUNXI_USB_MASS_SEND_DATA   (2)
#define	SUNXI_USB_MASS_RECEIVE_DATA   (3)
#define	SUNXI_USB_MASS_STATUS   (4)
#define	CBWCDBLENGTH   16
#define	SUNXI_MASS_RECV_MEM_SIZE   (512 * 1024)
#define	SUNXI_MASS_SEND_MEM_SIZE   (512 * 1024)
#define	SCSI_CHANGE_DEF   0x40 /* Change Definition (Optional) */
#define	SCSI_COMPARE   0x39 /* Compare (O) */
	Commands Unique to Direct Access Devices %%%.
#define	SCSI_COPY   0x18 /* Copy (O) */
#define	SCSI_COP_VERIFY   0x3A /* Copy and Verify (O) */
#define	SCSI_INQUIRY   0x12 /* Inquiry (MANDATORY) */
#define	SCSI_LOG_SELECT   0x4C /* Log Select (O) */
#define	SCSI_LOG_SENSE   0x4D /* Log Sense (O) */
#define	SCSI_MODE_SEL6   0x15 /* Mode Select 6-byte (Device Specific) */
#define	SCSI_MODE_SEL10   0x55 /* Mode Select 10-byte (Device Specific) */
#define	SCSI_MODE_SEN6   0x1A /* Mode Sense 6-byte (Device Specific) */
#define	SCSI_MODE_SEN10   0x5A /* Mode Sense 10-byte (Device Specific) */
#define	SCSI_READ_BUFF   0x3C /* Read Buffer (O) */
#define	SCSI_REQ_SENSE   0x03 /* Request Sense (MANDATORY) */
#define	SCSI_SEND_DIAG   0x1D /* Send Diagnostic (O) */
#define	SCSI_TST_U_RDY   0x00 /* Test Unit Ready (MANDATORY) */
#define	SCSI_WRITE_BUFF   0x3B /* Write Buffer (O) */
#define	SCSI_COMPARE   0x39 /* Compare (O) */
	Commands Unique to Direct Access Devices %%%.
#define	SCSI_FORMAT   0x04 /* Format Unit (MANDATORY) */
#define	SCSI_LCK_UN_CAC   0x36 /* Lock Unlock Cache (O) */
#define	SCSI_PREFETCH   0x34 /* Prefetch (O) */
#define	SCSI_MED_REMOVL   0x1E /* Prevent/Allow medium Removal (O) */
#define	SCSI_READ6   0x08 /* Read 6-byte (MANDATORY) */
#define	SCSI_READ10   0x28 /* Read 10-byte (MANDATORY) */
#define	SCSI_RD_CAPAC   0x25 /* Read Capacity (MANDATORY) */
#define	SCSI_RD_DEFECT   0x37 /* Read Defect Data (O) */
#define	SCSI_READ_LONG   0x3E /* Read Long (O) */
#define	SCSI_REASS_BLK   0x07 /* Reassign Blocks (O) */
#define	SCSI_RCV_DIAG   0x1C /* Receive Diagnostic Results (O) */
#define	SCSI_RELEASE   0x17 /* Release Unit (MANDATORY) */
#define	SCSI_REZERO   0x01 /* Rezero Unit (O) */
#define	SCSI_SRCH_DAT_E   0x31 /* Search Data Equal (O) */
#define	SCSI_SRCH_DAT_H   0x30 /* Search Data High (O) */
#define	SCSI_SRCH_DAT_L   0x32 /* Search Data Low (O) */
#define	SCSI_SEEK6   0x0B /* Seek 6-Byte (O) */
#define	SCSI_SEEK10   0x2B /* Seek 10-Byte (O) */
#define	SCSI_SEND_DIAG   0x1D /* Send Diagnostics (MANDATORY) */
#define	SCSI_SET_LIMIT   0x33 /* Set Limits (O) */
#define	SCSI_START_STP   0x1B /* Start/Stop Unit (O) */
#define	SCSI_SYNC_CACHE   0x35 /* Synchronize Cache (O) */
#define	SCSI_VERIFY   0x2F /* Verify (O) */
#define	SCSI_WRITE6   0x0A /* Write 6-Byte (MANDATORY) */
#define	SCSI_WRITE10   0x2A /* Write 10-Byte (MANDATORY) */
#define	SCSI_WRT_VERIFY   0x2E /* Write and Verify (O) */
#define	SCSI_WRITE_LONG   0x3F /* Write Long (O) */
#define	SCSI_WRITE_SAME   0x41 /* Write Same (O) */
#define	SCSI_RD_FMT_CAPAC   0x23 /* Read format caacity */

Typedefs
typedef struct mass_trans_set	mass_trans_set_t

Functions
struct umass_bbb_cbw_t	__attribute__ ((packed))
static int	usb_mass_usb_set_interface (struct usb_device_request *req)
	USB MASS: Set interface.
static int	usb_mass_usb_set_address (struct usb_device_request *req)
	USB MASS: Set address.
static int	usb_mass_usb_set_configuration (struct usb_device_request *req)
	USB MASS: Set configuration.
static int	usb_mass_usb_get_descriptor (struct usb_device_request *req, uint8_t *buffer)
	usb_mass_usb_get_descriptor - Get USB descriptors
static int	usb_mass_usb_get_status (struct usb_device_request *req, uint8_t *buffer)
	usb_mass_usb_get_status - Handle a USB request to retrieve the status of the device
static int	sunxi_usb_mass_init (void)
	sunxi_usb_mass_init - Initialize the USB Mass Storage driver
static int	sunxi_mass_exit (void)
	sunxi_mass_exit - Exit the USB Mass Storage driver
static void	sunxi_mass_reset (void)
	sunxi_mass_reset - Reset the USB Mass Storage driver
static void	sunxi_mass_usb_rx_dma_isr (void *p_arg)
	sunxi_mass_usb_rx_dma_isr - Handle the USB Mass Storage RX DMA interrupt
static void	sunxi_mass_usb_tx_dma_isr (void *p_arg)
	sunxi_mass_usb_tx_dma_isr - Handle the USB Mass Storage TX DMA interrupt
static int	sunxi_mass_standard_req_op (uint32_t cmd, struct usb_device_request *req, uint8_t *buffer)
	sunxi_mass_standard_req_op - Handle standard USB Mass Storage requests
static int	sunxi_mass_nonstandard_req_op (uint32_t cmd, struct usb_device_request *req, uint8_t *buffer, uint32_t data_status)
	sunxi_mass_nonstandard_req_op - Handle non-standard USB Mass Storage requests
static int	sunxi_mass_state_loop (void *buffer)
	sunxi_mass_state_loop - State machine for USB Mass Storage operation
	sunxi_usb_module_init (SUNXI_USB_DEVICE_MASS, sunxi_usb_mass_init, sunxi_mass_exit, sunxi_mass_reset, sunxi_mass_standard_req_op, sunxi_mass_nonstandard_req_op, sunxi_mass_state_loop, sunxi_mass_usb_rx_dma_isr, sunxi_mass_usb_tx_dma_isr)

Variables
const uint8_t	normal_lang_id [8] = {0x04, 0x03, 0x09, 0x04, '\0'}
const uint8_t	sunxi_usb_mass_serial_num0 [32] = "20240127003501"
const uint8_t	sunxi_usb_mass_manufacturer [32] = "Yuzuki HD"
const uint8_t	sunxi_usb_mass_product [32] = "USB Mass Storage"
uint8_t *	sunxi_usb_mass_dev [SUNXI_USB_MASS_DEV_MAX]
const uint8_t	inquiry_data [40]
const uint8_t	request_sense [20]
uint32_t	dCBWSignature
uint32_t	dCBWTag
uint32_t	dCBWDataTransferLength
uint8_t	bCBWFlags
uint8_t	bCBWLUN
uint8_t	bCDBLength
uint8_t	CBWCDB [CBWCDBLENGTH]
uint32_t	dCSWSignature
uint32_t	dCSWTag
uint32_t	dCSWDataResidue
uint8_t	bCSWStatus
static int	sunxi_usb_mass_write_enable = 0
static int	sunxi_usb_mass_status = SUNXI_USB_MASS_IDLE
static mass_trans_set_t	trans_data

Macro Definition Documentation

CBWCDBLENGTH

#define CBWCDBLENGTH   16

SCSI_CHANGE_DEF

#define SCSI_CHANGE_DEF   0x40 /* Change Definition (Optional) */

SCSI_COMPARE [1/2]

#define SCSI_COMPARE   0x39 /* Compare (O) */

Commands Unique to Direct Access Devices %%%.

SCSI_COMPARE [2/2]

#define SCSI_COMPARE   0x39 /* Compare (O) */

Commands Unique to Direct Access Devices %%%.

SCSI_COP_VERIFY

#define SCSI_COP_VERIFY   0x3A /* Copy and Verify (O) */

SCSI_COPY

#define SCSI_COPY   0x18 /* Copy (O) */

SCSI_FORMAT

#define SCSI_FORMAT   0x04 /* Format Unit (MANDATORY) */

SCSI_INQUIRY

#define SCSI_INQUIRY   0x12 /* Inquiry (MANDATORY) */

SCSI_LCK_UN_CAC

#define SCSI_LCK_UN_CAC   0x36 /* Lock Unlock Cache (O) */

SCSI_LOG_SELECT

#define SCSI_LOG_SELECT   0x4C /* Log Select (O) */

SCSI_LOG_SENSE

#define SCSI_LOG_SENSE   0x4D /* Log Sense (O) */

SCSI_MED_REMOVL

#define SCSI_MED_REMOVL   0x1E /* Prevent/Allow medium Removal (O) */

SCSI_MODE_SEL10

#define SCSI_MODE_SEL10   0x55 /* Mode Select 10-byte (Device Specific) */

SCSI_MODE_SEL6

#define SCSI_MODE_SEL6   0x15 /* Mode Select 6-byte (Device Specific) */

SCSI_MODE_SEN10

#define SCSI_MODE_SEN10   0x5A /* Mode Sense 10-byte (Device Specific) */

SCSI_MODE_SEN6

#define SCSI_MODE_SEN6   0x1A /* Mode Sense 6-byte (Device Specific) */

SCSI_PREFETCH

#define SCSI_PREFETCH   0x34 /* Prefetch (O) */

SCSI_RCV_DIAG

#define SCSI_RCV_DIAG   0x1C /* Receive Diagnostic Results (O) */

SCSI_RD_CAPAC

#define SCSI_RD_CAPAC   0x25 /* Read Capacity (MANDATORY) */

SCSI_RD_DEFECT

#define SCSI_RD_DEFECT   0x37 /* Read Defect Data (O) */

SCSI_RD_FMT_CAPAC

#define SCSI_RD_FMT_CAPAC   0x23 /* Read format caacity */

SCSI_READ10

#define SCSI_READ10   0x28 /* Read 10-byte (MANDATORY) */

SCSI_READ6

#define SCSI_READ6   0x08 /* Read 6-byte (MANDATORY) */

SCSI_READ_BUFF

#define SCSI_READ_BUFF   0x3C /* Read Buffer (O) */

SCSI_READ_LONG

#define SCSI_READ_LONG   0x3E /* Read Long (O) */

SCSI_REASS_BLK

#define SCSI_REASS_BLK   0x07 /* Reassign Blocks (O) */

SCSI_RELEASE

#define SCSI_RELEASE   0x17 /* Release Unit (MANDATORY) */

SCSI_REQ_SENSE

#define SCSI_REQ_SENSE   0x03 /* Request Sense (MANDATORY) */

SCSI_REZERO

#define SCSI_REZERO   0x01 /* Rezero Unit (O) */

SCSI_SEEK10

#define SCSI_SEEK10   0x2B /* Seek 10-Byte (O) */

SCSI_SEEK6

#define SCSI_SEEK6   0x0B /* Seek 6-Byte (O) */

SCSI_SEND_DIAG [1/2]

#define SCSI_SEND_DIAG   0x1D /* Send Diagnostic (O) */

SCSI_SEND_DIAG [2/2]

#define SCSI_SEND_DIAG   0x1D /* Send Diagnostics (MANDATORY) */

SCSI_SET_LIMIT

#define SCSI_SET_LIMIT   0x33 /* Set Limits (O) */

SCSI_SRCH_DAT_E

#define SCSI_SRCH_DAT_E   0x31 /* Search Data Equal (O) */

SCSI_SRCH_DAT_H

#define SCSI_SRCH_DAT_H   0x30 /* Search Data High (O) */

SCSI_SRCH_DAT_L

#define SCSI_SRCH_DAT_L   0x32 /* Search Data Low (O) */

SCSI_START_STP

#define SCSI_START_STP   0x1B /* Start/Stop Unit (O) */

SCSI_SYNC_CACHE

#define SCSI_SYNC_CACHE   0x35 /* Synchronize Cache (O) */

SCSI_TST_U_RDY

#define SCSI_TST_U_RDY   0x00 /* Test Unit Ready (MANDATORY) */

SCSI_VERIFY

#define SCSI_VERIFY   0x2F /* Verify (O) */

SCSI_WRITE10

#define SCSI_WRITE10   0x2A /* Write 10-Byte (MANDATORY) */

SCSI_WRITE6

#define SCSI_WRITE6   0x0A /* Write 6-Byte (MANDATORY) */

SCSI_WRITE_BUFF

#define SCSI_WRITE_BUFF   0x3B /* Write Buffer (O) */

SCSI_WRITE_LONG

#define SCSI_WRITE_LONG   0x3F /* Write Long (O) */

SCSI_WRITE_SAME

#define SCSI_WRITE_SAME   0x41 /* Write Same (O) */

SCSI_WRT_VERIFY

#define SCSI_WRT_VERIFY   0x2E /* Write and Verify (O) */

SUNXI_MASS_RECV_MEM_SIZE

#define SUNXI_MASS_RECV_MEM_SIZE   (512 * 1024)

SUNXI_MASS_SEND_MEM_SIZE

#define SUNXI_MASS_SEND_MEM_SIZE   (512 * 1024)

SUNXI_USB_MASS_DEV_MAX

#define SUNXI_USB_MASS_DEV_MAX   (4)

SUNXI_USB_MASS_IDLE

#define SUNXI_USB_MASS_IDLE   (0)

SUNXI_USB_MASS_RECEIVE_DATA

#define SUNXI_USB_MASS_RECEIVE_DATA   (3)

SUNXI_USB_MASS_SEND_DATA

#define SUNXI_USB_MASS_SEND_DATA   (2)

SUNXI_USB_MASS_SETUP

#define SUNXI_USB_MASS_SETUP   (1)

SUNXI_USB_MASS_STATUS

#define SUNXI_USB_MASS_STATUS   (4)

SUNXI_USB_STRING_IMANUFACTURER

#define SUNXI_USB_STRING_IMANUFACTURER   (1)

SUNXI_USB_STRING_IPRODUCT

#define SUNXI_USB_STRING_IPRODUCT   (2)

SUNXI_USB_STRING_ISERIALNUMBER

#define SUNXI_USB_STRING_ISERIALNUMBER   (3)

SUNXI_USB_STRING_LANGIDS

#define SUNXI_USB_STRING_LANGIDS   (0)

Typedef Documentation

mass_trans_set_t

typedef struct mass_trans_set mass_trans_set_t

Function Documentation

__attribute__()

struct umass_bbb_cbw_t __attribute__

(

(packed)

)

sunxi_mass_exit()

static int sunxi_mass_exit ( void  )

static

sunxi_mass_exit - Exit the USB Mass Storage driver

This function frees the memory allocated for data transmission and exits the USB Mass Storage driver.

Returns

: 0 if exit is successful, otherwise an error code

sunxi_mass_nonstandard_req_op()

static int sunxi_mass_nonstandard_req_op ( uint32_t  cmd, struct usb_device_request *  req, uint8_t *  buffer, uint32_t  data_status  )

static

sunxi_mass_nonstandard_req_op - Handle non-standard USB Mass Storage requests

This function handles non-standard USB Mass Storage requests by calling the corresponding functions based on the request type and request code.

Parameters

cmd	The command code for the request
req	Pointer to the USB device request structure
buffer	Pointer to the data buffer
data_status	The status of the data transfer

Returns

: The result of the operation (error code or success)

sunxi_mass_reset()

static void sunxi_mass_reset ( void  )

static

sunxi_mass_reset - Reset the USB Mass Storage driver

This function resets the USB Mass Storage driver by setting initial values.

sunxi_mass_standard_req_op()

static int sunxi_mass_standard_req_op ( uint32_t  cmd, struct usb_device_request *  req, uint8_t *  buffer  )

static

sunxi_mass_standard_req_op - Handle standard USB Mass Storage requests

This function handles standard USB Mass Storage requests by calling the corresponding functions based on the command.

Parameters

cmd	The command code for the request
req	Pointer to the USB device request structure
buffer	Pointer to the data buffer

Returns

: The result of the operation (error code or success)

sunxi_mass_state_loop()

static int sunxi_mass_state_loop ( void *  buffer )

static

sunxi_mass_state_loop - State machine for USB Mass Storage operation

This function implements a state machine for USB Mass Storage operation. It handles the different stages of the operation, such as sending/receiving data, checking status, and handling errors.

Parameters

buffer

Pointer to the data buffer

Returns

: The result of the operation (error code or success)

sunxi_mass_usb_rx_dma_isr()

static void sunxi_mass_usb_rx_dma_isr ( void *  p_arg )

static

sunxi_mass_usb_rx_dma_isr - Handle the USB Mass Storage RX DMA interrupt

This function is called when a USB Mass Storage RX DMA interrupt occurs. It sets a flag to indicate that the USB host is ready to write data.

Parameters

p_arg

Pointer to a void argument (not used)

sunxi_mass_usb_tx_dma_isr()

static void sunxi_mass_usb_tx_dma_isr ( void *  p_arg )

static

sunxi_mass_usb_tx_dma_isr - Handle the USB Mass Storage TX DMA interrupt

This function is called when a USB Mass Storage TX DMA interrupt occurs. It currently does not perform any action.

Parameters

p_arg

Pointer to a void argument (not used)

sunxi_usb_mass_init()

static int sunxi_usb_mass_init ( void  )

static

sunxi_usb_mass_init - Initialize the USB Mass Storage driver

This function initializes the USB Mass Storage driver by allocating memory for data transmission and setting up initial values.

Returns

: 0 if initialization is successful, otherwise -1

sunxi_usb_module_init()

sunxi_usb_module_init	(	SUNXI_USB_DEVICE_MASS	,
		sunxi_usb_mass_init	,
		sunxi_mass_exit	,
		sunxi_mass_reset	,
		sunxi_mass_standard_req_op	,
		sunxi_mass_nonstandard_req_op	,
		sunxi_mass_state_loop	,
		sunxi_mass_usb_rx_dma_isr	,
		sunxi_mass_usb_tx_dma_isr
	)

usb_mass_usb_get_descriptor()

static int usb_mass_usb_get_descriptor ( struct usb_device_request *  req, uint8_t *  buffer  )

static

usb_mass_usb_get_descriptor - Get USB descriptors

This function retrieves USB descriptors based on the provided request.

Parameters

req	Pointer to the USB device request structure
buffer	Pointer to the buffer to hold the descriptor data

Returns

: Error code indicating the result of the function

usb_mass_usb_get_status()

static int usb_mass_usb_get_status ( struct usb_device_request *  req, uint8_t *  buffer  )

static

usb_mass_usb_get_status - Handle a USB request to retrieve the status of the device

This function handles a USB request to retrieve the status of the USB device. The status is returned in a buffer provided by the caller.

Parameters

req	Pointer to the USB device request structure
buffer	Pointer to the buffer to hold the status data

Returns

: Error code indicating the result of the function SUNXI_USB_REQ_SUCCESSED if the request is successful SUNXI_USB_REQ_OP_ERR if there is an operational error

usb_mass_usb_set_address()

static int usb_mass_usb_set_address ( struct usb_device_request *  req )

static

USB MASS: Set address.

This function handles the set address request for the USB Mass Storage device. It extracts the new address from the request and calls sunxi_usb_set_address() to set the new address.

Parameters

req	The USB device request

Returns

SUNXI_USB_REQ_SUCCESSED on success

usb_mass_usb_set_configuration()

static int usb_mass_usb_set_configuration ( struct usb_device_request *  req )

static

USB MASS: Set configuration.

This function handles the set configuration request for the USB Mass Storage device. It checks if the requested configuration is valid. If it is, it calls sunxi_usb_ep_reset() to reset the USB endpoints. Otherwise, it prints an error message and returns SUNXI_USB_REQ_OP_ERR.

Parameters

req	The USB device request

Returns

SUNXI_USB_REQ_SUCCESSED on success, SUNXI_USB_REQ_OP_ERR on error

usb_mass_usb_set_interface()

static int usb_mass_usb_set_interface ( struct usb_device_request *  req )

static

USB MASS: Set interface.

This function handles the set interface request for the USB Mass Storage device. It checks if the requested interface and alternate setting are valid. If they are, it calls sunxi_usb_ep_reset() to reset the USB endpoints. Otherwise, it prints an error message and returns SUNXI_USB_REQ_OP_ERR.

Parameters

req	The USB device request

Returns

SUNXI_USB_REQ_SUCCESSED on success, SUNXI_USB_REQ_OP_ERR on error

Variable Documentation

bCBWFlags

uint8_t bCBWFlags

bCBWLUN

uint8_t bCBWLUN

bCDBLength

uint8_t bCDBLength

bCSWStatus

uint8_t bCSWStatus

CBWCDB

uint8_t CBWCDB[CBWCDBLENGTH]

dCBWDataTransferLength

uint32_t dCBWDataTransferLength

dCBWSignature

uint32_t dCBWSignature

dCBWTag

uint32_t dCBWTag

dCSWDataResidue

uint32_t dCSWDataResidue

dCSWSignature

uint32_t dCSWSignature

dCSWTag

uint32_t dCSWTag

inquiry_data

const uint8_t inquiry_data[40]

Initial value:

= {
        0x00, 0x80, 0x02, 0x02, 0x1f,
        0x00, 0x00, 0x00,
        'U', 'S', 'B', '2', '.', '0', 0x00, 0x00,
        'U', 'S', 'B', ' ', 'S', 't', 'o', 'r', 'a', 'g', 'e',
        0x00, 0x00, 0x00, 0x00, 0x00,
        '0', '1', '0', '0', '\0'
}

normal_lang_id

const uint8_t normal_lang_id[8] = {0x04, 0x03, 0x09, 0x04, '\0'}

request_sense

const uint8_t request_sense[20]

Initial value:

= {
        0x07, 0x00, 0x02, 0x00, 0x00, 0x00, 0x00, 0x0a, 0x00,
        0x00, 0x00, 0x00, 0x3a, 0x00, 0x00, 0x00, 0x00, 0x00
}

sunxi_usb_mass_dev

uint8_t* sunxi_usb_mass_dev[SUNXI_USB_MASS_DEV_MAX]

Initial value:

= {
        normal_lang_id,
        sunxi_usb_mass_serial_num0,
        sunxi_usb_mass_manufacturer,
        sunxi_usb_mass_product
}

sunxi_usb_mass_manufacturer

const uint8_t sunxi_usb_mass_manufacturer[32] = "Yuzuki HD"

sunxi_usb_mass_product

const uint8_t sunxi_usb_mass_product[32] = "USB Mass Storage"

sunxi_usb_mass_serial_num0

const uint8_t sunxi_usb_mass_serial_num0[32] = "20240127003501"

sunxi_usb_mass_status

int sunxi_usb_mass_status = SUNXI_USB_MASS_IDLE

static

sunxi_usb_mass_write_enable

int sunxi_usb_mass_write_enable = 0

static

trans_data

mass_trans_set_t trans_data

static
