reg-ncat.h File Reference

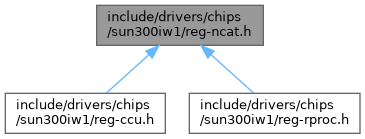

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	SUNXI_BROM_BASE   0x00000000
#define	SUNXI_SRAM_C_BASE   0x02000000
#define	SUNXI_VE_BASE   0x41C0E000
#define	SUNXI_GPIO_BASE   0x42000000
#define	SUNXI_PWM_BASE   0x42000C00
#define	SUNXI_CCU_APP_BASE   0x42001000
#define	SUNXI_GPADC_BASE   0x42009000
#define	SUNXI_THS_BASE   0x42009400
#define	SUNXI_ADDA_BASE   0x42030000
#define	SUNXI_I2S_BASE   0x42032000
#define	SUNXI_TIMER_BASE   0x42050000
#define	SUNXI_TRNG_BASE   0x42059000
#define	SUNXI_UART0_BASE   0x42500000
#define	SUNXI_UART1_BASE   0x42500400
#define	SUNXI_UART2_BASE   0x42500800
#define	SUNXI_UART3_BASE   0x42500C00
#define	SUNXI_TWI0_BASE   0x42502000
#define	SUNXI_TWI1_BASE   0x42502400
#define	SUNXI_TWI2_BASE   0x42502800
#define	SUNXI_SYSCTRL_BASE   0x43000000
#define	SUNXI_DMAC1_BASE   0x43001000
#define	SUNXI_DMAC0__SGDMA__BASE   0x43002000
#define	SUNXI_SPINLOCK_BASE   0x43005000
#define	SUNXI_SID_BASE   0x43006000
#define	SUNXI_SID_SRAM_BASE   (SUNXI_SID_BASE + 0x200)
#define	SUNXI_HSTIMER_BASE   0x43008000
#define	SUNXI_DCU_BASE   0x43010000
#define	SUNXI_E907_CFG_BASE   0x43030000
#define	SUNXI_E907_WDG_BASE   0x43031000
#define	SUNXI_E907_TIMESTAMP_BASE   0x43032000
#define	SUNXI_E907_MSGBOX_BASE   0x43033000
#define	SUNXI_WLAN_CTRL_BASE   0x43043000
#define	SUNXI_CE_BASE   0x43044000
#define	SUNXI_PWR_REQ_BASE   0x43045000
#define	SUNXI_MSI_MEMC_BASE   0x43102000
#define	SUNXI_A27L2_CFG_BASE   0x49100000
#define	SUNXI_A27L2_WDG_BASE   0x49101000
#define	SUNXI_A27L2_MSGBOX_BASE   0x49102000
#define	SUNXI_SMHC0_BASE   0x44020000
#define	SUNXI_SMHC1_BASE   0x44021000
#define	SUNXI_SPI0_BASE   0x44025000
#define	SUNXI_SPI1_BASE   0x44026000
#define	SUNXI_SPI2_BASE   0x44027000
#define	SUNXI_USB0_BASE   0x44100000
#define	SUNXI_GMAC_BASE   0x44500000
#define	SUNXI_SPI_FLASH_BASE   0x44F00000
#define	SUNXI_DE_BASE   0x45000000
#define	SUNXI_G2D_BASE   0x45410000
#define	SUNXI_DISPLAY_TOP_BASE   0x45460000
#define	SUNXI_TCON_LCD0_BASE   0x45461000
#define	SUNXI_CSI_BASE   0x45800000
#define	SUNXI_ISP_BASE   0x45900000
#define	SUNXI_PRCM_BASE   0x4A000000
#define	SUNXI_RTC_TIMER_BASE   0x4A000400
#define	SUNXI_PMU_RTC_BASE   0x4A000800
#define	SUNXI_SYSRTC_BASE   0x4A000C00
#define	SUNXI_RTC_WDG_BASE   0x4A001000
#define	SUNXI_CCU_AON_BASE   0x4A010000
#define	SUNXI_PMU_AON_BASE   0x4A011000
#define	SUNXI_RCCAL_BASE   0x4A011400
#define	SUNXI_WIFI_SRAM_BASE   0x68000000
#define	SUNXI_WIFI_PERI_BASE   0x79C00000
#define	SUNXI_SPI_FLASH_XIP_BASE   0x10000000
#define	SUNXI_DRAM_SPACE_BASE   0x80000000
#define	SUNXI_PLAT_TCIP_BASE_ADDR   0x30000000
#define	SUNXI_RISCV_CLINT_BASE   0x30000000
#define	SUNXI_RISCV_CLIC_BASE   0x30800000
#define	SUNXI_RESERVE_BASE   0x30805000
#define	SUNXI_PLIC_BASE   0x48000000
#define	SUNXI_PLMT_BASE   0x48400000
#define	SUNXI_PLIC_SW_BASE   0x48800000
#define	SUNXI_PLDM_BASE   0x48C00000
#define	SUNXI_L2C_BASE   0x49000000
#define	SUNXI_RTC_DATA_BASE   (SUNXI_PRCM_BASE + 0x200)
#define	SUNXI_RTC_BOOT_FLAG_ADDR   (SUNXI_PRCM_BASE + 0x1c0)
#define	SUNXI_WDOG_BASE   (SUNXI_E907_WDG_BASE)
#define	SUNXI_PIO_BASE   (SUNXI_GPIO_BASE)
#define	SUNXI_RPIO_BASE   (0x42000540)
#define	SUNXI_RTWI_BASE   (SUNXI_TWI0_BASE)
#define	SUNXI_SPIF_BASE   (SUNXI_SPI_FLASH_BASE)
#define	SUNXI_DMA_BASE   (SUNXI_DMAC0__SGDMA__BASE)
#define	SUNXI_RTC_BASE   (SUNXI_PMU_RTC_BASE)
#define	VCC33_DET_CTRL_REG   (0x64)
#define	VCCIO_THRESHOLD_MASK   (0x7)
#define	VCCIO_THRESHOLD_VOLTAGE_2_7   (0 << 8)
#define	VCCIO_THRESHOLD_VOLTAGE_2_6   (1 << 8)
#define	VCCIO_THRESHOLD_VOLTAGE_2_8   (2 << 8)
#define	VCCIO_THRESHOLD_VOLTAGE_2_9   (3 << 8)
#define	VCCIO_THRESHOLD_VOLTAGE_3_0   (4 << 8)
#define	VCCIO_THRESHOLD_VOLTAGE_3_1   (5 << 8)
#define	VCCIO_THRESHOLD_VOLTAGE_3_2   (6 << 8)
#define	VCCIO_THRESHOLD_VOLTAGE_3_3   (7 << 8)
#define	POR_RESET_CTRL_REG   (0X24)
#define	VCC33_DET_RSTN_ENABLE   (1 << 4)

Macro Definition Documentation

POR_RESET_CTRL_REG

#define POR_RESET_CTRL_REG   (0X24)

SUNXI_A27L2_CFG_BASE

#define SUNXI_A27L2_CFG_BASE   0x49100000

SUNXI_A27L2_MSGBOX_BASE

#define SUNXI_A27L2_MSGBOX_BASE   0x49102000

SUNXI_A27L2_WDG_BASE

#define SUNXI_A27L2_WDG_BASE   0x49101000

SUNXI_ADDA_BASE

#define SUNXI_ADDA_BASE   0x42030000

SUNXI_BROM_BASE

#define SUNXI_BROM_BASE   0x00000000

SUNXI_CCU_AON_BASE

#define SUNXI_CCU_AON_BASE   0x4A010000

SUNXI_CCU_APP_BASE

#define SUNXI_CCU_APP_BASE   0x42001000

SUNXI_CE_BASE

#define SUNXI_CE_BASE   0x43044000

SUNXI_CSI_BASE

#define SUNXI_CSI_BASE   0x45800000

SUNXI_DCU_BASE

#define SUNXI_DCU_BASE   0x43010000

SUNXI_DE_BASE

#define SUNXI_DE_BASE   0x45000000

SUNXI_DISPLAY_TOP_BASE

#define SUNXI_DISPLAY_TOP_BASE   0x45460000

SUNXI_DMA_BASE

#define SUNXI_DMA_BASE   (SUNXI_DMAC0__SGDMA__BASE)

SUNXI_DMAC0__SGDMA__BASE

#define SUNXI_DMAC0__SGDMA__BASE   0x43002000

SUNXI_DMAC1_BASE

#define SUNXI_DMAC1_BASE   0x43001000

SUNXI_DRAM_SPACE_BASE

#define SUNXI_DRAM_SPACE_BASE   0x80000000

SUNXI_E907_CFG_BASE

#define SUNXI_E907_CFG_BASE   0x43030000

SUNXI_E907_MSGBOX_BASE

#define SUNXI_E907_MSGBOX_BASE   0x43033000

SUNXI_E907_TIMESTAMP_BASE

#define SUNXI_E907_TIMESTAMP_BASE   0x43032000

SUNXI_E907_WDG_BASE

#define SUNXI_E907_WDG_BASE   0x43031000

SUNXI_G2D_BASE

#define SUNXI_G2D_BASE   0x45410000

SUNXI_GMAC_BASE

#define SUNXI_GMAC_BASE   0x44500000

SUNXI_GPADC_BASE

#define SUNXI_GPADC_BASE   0x42009000

SUNXI_GPIO_BASE

#define SUNXI_GPIO_BASE   0x42000000

SUNXI_HSTIMER_BASE

#define SUNXI_HSTIMER_BASE   0x43008000

SUNXI_I2S_BASE

#define SUNXI_I2S_BASE   0x42032000

SUNXI_ISP_BASE

#define SUNXI_ISP_BASE   0x45900000

SUNXI_L2C_BASE

#define SUNXI_L2C_BASE   0x49000000

SUNXI_MSI_MEMC_BASE

#define SUNXI_MSI_MEMC_BASE   0x43102000

SUNXI_PIO_BASE

#define SUNXI_PIO_BASE   (SUNXI_GPIO_BASE)

SUNXI_PLAT_TCIP_BASE_ADDR

#define SUNXI_PLAT_TCIP_BASE_ADDR   0x30000000

SUNXI_PLDM_BASE

#define SUNXI_PLDM_BASE   0x48C00000

SUNXI_PLIC_BASE

#define SUNXI_PLIC_BASE   0x48000000

SUNXI_PLIC_SW_BASE

#define SUNXI_PLIC_SW_BASE   0x48800000

SUNXI_PLMT_BASE

#define SUNXI_PLMT_BASE   0x48400000

SUNXI_PMU_AON_BASE

#define SUNXI_PMU_AON_BASE   0x4A011000

SUNXI_PMU_RTC_BASE

#define SUNXI_PMU_RTC_BASE   0x4A000800

SUNXI_PRCM_BASE

#define SUNXI_PRCM_BASE   0x4A000000

SUNXI_PWM_BASE

#define SUNXI_PWM_BASE   0x42000C00

SUNXI_PWR_REQ_BASE

#define SUNXI_PWR_REQ_BASE   0x43045000

SUNXI_RCCAL_BASE

#define SUNXI_RCCAL_BASE   0x4A011400

SUNXI_RESERVE_BASE

#define SUNXI_RESERVE_BASE   0x30805000

SUNXI_RISCV_CLIC_BASE

#define SUNXI_RISCV_CLIC_BASE   0x30800000

SUNXI_RISCV_CLINT_BASE

#define SUNXI_RISCV_CLINT_BASE   0x30000000

SUNXI_RPIO_BASE

#define SUNXI_RPIO_BASE   (0x42000540)

SUNXI_RTC_BASE

#define SUNXI_RTC_BASE   (SUNXI_PMU_RTC_BASE)

SUNXI_RTC_BOOT_FLAG_ADDR

#define SUNXI_RTC_BOOT_FLAG_ADDR   (SUNXI_PRCM_BASE + 0x1c0)

SUNXI_RTC_DATA_BASE

#define SUNXI_RTC_DATA_BASE   (SUNXI_PRCM_BASE + 0x200)

SUNXI_RTC_TIMER_BASE

#define SUNXI_RTC_TIMER_BASE   0x4A000400

SUNXI_RTC_WDG_BASE

#define SUNXI_RTC_WDG_BASE   0x4A001000

SUNXI_RTWI_BASE

#define SUNXI_RTWI_BASE   (SUNXI_TWI0_BASE)

SUNXI_SID_BASE

#define SUNXI_SID_BASE   0x43006000

SUNXI_SID_SRAM_BASE

#define SUNXI_SID_SRAM_BASE   (SUNXI_SID_BASE + 0x200)

SUNXI_SMHC0_BASE

#define SUNXI_SMHC0_BASE   0x44020000

SUNXI_SMHC1_BASE

#define SUNXI_SMHC1_BASE   0x44021000

SUNXI_SPI0_BASE

#define SUNXI_SPI0_BASE   0x44025000

SUNXI_SPI1_BASE

#define SUNXI_SPI1_BASE   0x44026000

SUNXI_SPI2_BASE

#define SUNXI_SPI2_BASE   0x44027000

SUNXI_SPI_FLASH_BASE

#define SUNXI_SPI_FLASH_BASE   0x44F00000

SUNXI_SPI_FLASH_XIP_BASE

#define SUNXI_SPI_FLASH_XIP_BASE   0x10000000

SUNXI_SPIF_BASE

#define SUNXI_SPIF_BASE   (SUNXI_SPI_FLASH_BASE)

SUNXI_SPINLOCK_BASE

#define SUNXI_SPINLOCK_BASE   0x43005000

SUNXI_SRAM_C_BASE

#define SUNXI_SRAM_C_BASE   0x02000000

SUNXI_SYSCTRL_BASE

#define SUNXI_SYSCTRL_BASE   0x43000000

SUNXI_SYSRTC_BASE

#define SUNXI_SYSRTC_BASE   0x4A000C00

SUNXI_TCON_LCD0_BASE

#define SUNXI_TCON_LCD0_BASE   0x45461000

SUNXI_THS_BASE

#define SUNXI_THS_BASE   0x42009400

SUNXI_TIMER_BASE

#define SUNXI_TIMER_BASE   0x42050000

SUNXI_TRNG_BASE

#define SUNXI_TRNG_BASE   0x42059000

SUNXI_TWI0_BASE

#define SUNXI_TWI0_BASE   0x42502000

SUNXI_TWI1_BASE

#define SUNXI_TWI1_BASE   0x42502400

SUNXI_TWI2_BASE

#define SUNXI_TWI2_BASE   0x42502800

SUNXI_UART0_BASE

#define SUNXI_UART0_BASE   0x42500000

SUNXI_UART1_BASE

#define SUNXI_UART1_BASE   0x42500400

SUNXI_UART2_BASE

#define SUNXI_UART2_BASE   0x42500800

SUNXI_UART3_BASE

#define SUNXI_UART3_BASE   0x42500C00

SUNXI_USB0_BASE

#define SUNXI_USB0_BASE   0x44100000

SUNXI_VE_BASE

#define SUNXI_VE_BASE   0x41C0E000

SUNXI_WDOG_BASE

#define SUNXI_WDOG_BASE   (SUNXI_E907_WDG_BASE)

SUNXI_WIFI_PERI_BASE

#define SUNXI_WIFI_PERI_BASE   0x79C00000

SUNXI_WIFI_SRAM_BASE

#define SUNXI_WIFI_SRAM_BASE   0x68000000

SUNXI_WLAN_CTRL_BASE

#define SUNXI_WLAN_CTRL_BASE   0x43043000

VCC33_DET_CTRL_REG

#define VCC33_DET_CTRL_REG   (0x64)

VCC33_DET_RSTN_ENABLE

#define VCC33_DET_RSTN_ENABLE   (1 << 4)

VCCIO_THRESHOLD_MASK

#define VCCIO_THRESHOLD_MASK   (0x7)

VCCIO_THRESHOLD_VOLTAGE_2_6

#define VCCIO_THRESHOLD_VOLTAGE_2_6   (1 << 8)

VCCIO_THRESHOLD_VOLTAGE_2_7

#define VCCIO_THRESHOLD_VOLTAGE_2_7   (0 << 8)

VCCIO_THRESHOLD_VOLTAGE_2_8

#define VCCIO_THRESHOLD_VOLTAGE_2_8   (2 << 8)

VCCIO_THRESHOLD_VOLTAGE_2_9

#define VCCIO_THRESHOLD_VOLTAGE_2_9   (3 << 8)

VCCIO_THRESHOLD_VOLTAGE_3_0

#define VCCIO_THRESHOLD_VOLTAGE_3_0   (4 << 8)

VCCIO_THRESHOLD_VOLTAGE_3_1

#define VCCIO_THRESHOLD_VOLTAGE_3_1   (5 << 8)

VCCIO_THRESHOLD_VOLTAGE_3_2

#define VCCIO_THRESHOLD_VOLTAGE_3_2   (6 << 8)

VCCIO_THRESHOLD_VOLTAGE_3_3

#define VCCIO_THRESHOLD_VOLTAGE_3_3   (7 << 8)
