sys-mmc.h File Reference

#include <io.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>

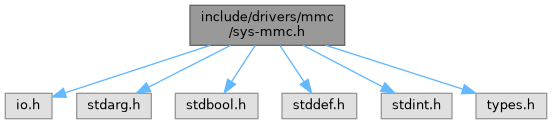

Include dependency graph for sys-mmc.h:

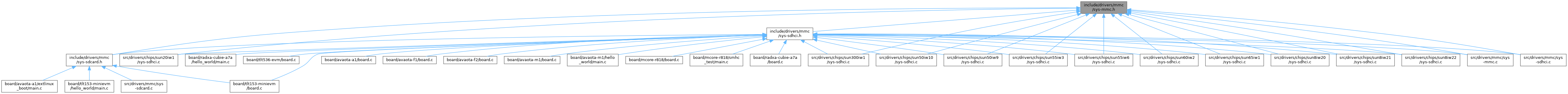

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	tune_sdly
struct	mmc_cmd
struct	mmc_data
struct	mmc

Macros
#define	MMC_MODE_HS   (1 << 0) /* can run at 26MHz -- DS26_SDR12 */
#define	MMC_MODE_HS_52MHz   (1 << 1) /* can run at 52MHz with SDR mode -- HSSDR52_SDR25 */
#define	MMC_MODE_4BIT   (1 << 2)
#define	MMC_MODE_8BIT   (1 << 3)
#define	MMC_MODE_SPI   (1 << 4)
#define	MMC_MODE_HC   (1 << 5)
#define	MMC_MODE_DDR_52MHz   (1 << 6) /* can run at 52Mhz with DDR mode -- HSDDR52_DDR50 */
#define	MMC_MODE_HS200   (1 << 7) /* can run at 200/208MHz with SDR mode -- HS200_SDR104 */
#define	MMC_MODE_HS400   (1 << 8) /* can run at 200MHz with DDR mode -- HS400 */
#define	SD_DATA_4BIT   0x00040000
#define	MMC_DATA_READ   (1U << 0)
#define	MMC_DATA_WRITE   (1U << 1)
#define	MMC_CMD_MANUAL   1
#define	NO_CARD_ERR   -16 /* No SD/MMC card inserted */
#define	UNUSABLE_ERR   -17 /* Unusable Card */
#define	COMM_ERR   -18 /* Communications Error */
#define	TIMEOUT   -19
#define	MMC_CMD_GO_IDLE_STATE   0
#define	MMC_CMD_SEND_OP_COND   1
#define	MMC_CMD_ALL_SEND_CID   2
#define	MMC_CMD_SET_RELATIVE_ADDR   3
#define	MMC_CMD_SET_DSR   4
#define	MMC_CMD_SWITCH   6
#define	MMC_CMD_SELECT_CARD   7
#define	MMC_CMD_SEND_EXT_CSD   8
#define	MMC_CMD_SEND_CSD   9
#define	MMC_CMD_SEND_CID   10
#define	MMC_CMD_STOP_TRANSMISSION   12
#define	MMC_CMD_SEND_STATUS   13
#define	MMC_CMD_SET_BLOCKLEN   16
#define	MMC_CMD_READ_SINGLE_BLOCK   17
#define	MMC_CMD_READ_MULTIPLE_BLOCK   18
#define	MMC_CMD_WRITE_SINGLE_BLOCK   24
#define	MMC_CMD_WRITE_MULTIPLE_BLOCK   25
#define	MMC_CMD_ERASE_GROUP_START   35
#define	MMC_CMD_ERASE_GROUP_END   36
#define	MMC_CMD_ERASE   38
#define	MMC_CMD_APP_CMD   55
#define	MMC_CMD_SPI_READ_OCR   58
#define	MMC_CMD_SPI_CRC_ON_OFF   59
#define	SD_CMD_SEND_RELATIVE_ADDR   3
#define	SD_CMD_SWITCH_FUNC   6
#define	SD_CMD_SEND_IF_COND   8
#define	SD_CMD_APP_SET_BUS_WIDTH   6
#define	SD_CMD_ERASE_WR_BLK_START   32
#define	SD_CMD_ERASE_WR_BLK_END   33
#define	SD_CMD_APP_SEND_OP_COND   41
#define	SD_CMD_APP_SEND_SCR   51
#define	SD_HIGHSPEED_BUSY   0x00020000
#define	SD_HIGHSPEED_SUPPORTED   0x00020000
#define	MMC_HS_TIMING   0x00000100
#define	MMC_HS_52MHZ   0x2
#define	MMC_DDR_52MHZ   0x4
#define	OCR_BUSY   0x80000000
#define	OCR_HCS   0x40000000
#define	OCR_VOLTAGE_MASK   0x007FFF80
#define	OCR_ACCESS_MODE   0x60000000
#define	SECURE_ERASE   0x80000000
#define	MMC_STATUS_MASK   (~0x0206BF7F)
#define	MMC_STATUS_RDY_FOR_DATA   (1 << 8)
#define	MMC_STATUS_CURR_STATE   (0xf << 9)
#define	MMC_STATUS_ERROR   (1 << 19)
#define	MMC_VDD_165_195   0x00000080 /* VDD voltage 1.65 - 1.95 */
#define	MMC_VDD_20_21   0x00000100 /* VDD voltage 2.0 ~ 2.1 */
#define	MMC_VDD_21_22   0x00000200 /* VDD voltage 2.1 ~ 2.2 */
#define	MMC_VDD_22_23   0x00000400 /* VDD voltage 2.2 ~ 2.3 */
#define	MMC_VDD_23_24   0x00000800 /* VDD voltage 2.3 ~ 2.4 */
#define	MMC_VDD_24_25   0x00001000 /* VDD voltage 2.4 ~ 2.5 */
#define	MMC_VDD_25_26   0x00002000 /* VDD voltage 2.5 ~ 2.6 */
#define	MMC_VDD_26_27   0x00004000 /* VDD voltage 2.6 ~ 2.7 */
#define	MMC_VDD_27_28   0x00008000 /* VDD voltage 2.7 ~ 2.8 */
#define	MMC_VDD_28_29   0x00010000 /* VDD voltage 2.8 ~ 2.9 */
#define	MMC_VDD_29_30   0x00020000 /* VDD voltage 2.9 ~ 3.0 */
#define	MMC_VDD_30_31   0x00040000 /* VDD voltage 3.0 ~ 3.1 */
#define	MMC_VDD_31_32   0x00080000 /* VDD voltage 3.1 ~ 3.2 */
#define	MMC_VDD_32_33   0x00100000 /* VDD voltage 3.2 ~ 3.3 */
#define	MMC_VDD_33_34   0x00200000 /* VDD voltage 3.3 ~ 3.4 */
#define	MMC_VDD_34_35   0x00400000 /* VDD voltage 3.4 ~ 3.5 */
#define	MMC_VDD_35_36   0x00800000 /* VDD voltage 3.5 ~ 3.6 */
#define	MMC_SWITCH_MODE_CMD_SET   0x00 /* Change the command set */
#define	MMC_SWITCH_MODE_SET_BITS   0x01 /* Set bits in EXT_CSD byte addressed by index which are 1 in value field */
#define	MMC_SWITCH_MODE_CLEAR_BITS   0x02 /* Clear bits in EXT_CSD byte addressed by index, which are 1 in value field */
#define	MMC_SWITCH_MODE_WRITE_BYTE   0x03 /* Set target byte to value */
#define	SD_SWITCH_CHECK   0
#define	SD_SWITCH_SWITCH   1
#define	EXT_CSD_CMDQ_MODE_EN   15 /* R/W */
#define	EXT_CSD_FLUSH_CACHE   32 /* W */
#define	EXT_CSD_CACHE_CTRL   33 /* R/W */
#define	EXT_CSD_POWER_OFF_NOTIFICATION   34 /* R/W */
#define	EXT_CSD_PACKED_FAILURE_INDEX   35 /* RO */
#define	EXT_CSD_PACKED_CMD_STATUS   36 /* RO */
#define	EXT_CSD_EXP_EVENTS_STATUS   54 /* RO, 2 bytes */
#define	EXT_CSD_EXP_EVENTS_CTRL   56 /* R/W, 2 bytes */
#define	EXT_CSD_DATA_SECTOR_SIZE   61 /* R */
#define	EXT_CSD_GP_SIZE_MULT   143 /* R/W */
#define	EXT_CSD_PARTITION_SETTING_COMPLETED   155 /* R/W */
#define	EXT_CSD_PARTITION_ATTRIBUTE   156 /* R/W */
#define	EXT_CSD_PARTITION_SUPPORT   160 /* RO */
#define	EXT_CSD_HPI_MGMT   161 /* R/W */
#define	EXT_CSD_RST_N_FUNCTION   162 /* R/W */
#define	EXT_CSD_BKOPS_EN   163 /* R/W */
#define	EXT_CSD_BKOPS_START   164 /* W */
#define	EXT_CSD_SANITIZE_START   165 /* W */
#define	EXT_CSD_WR_REL_PARAM   166 /* RO */
#define	EXT_CSD_RPMB_MULT   168 /* RO */
#define	EXT_CSD_FW_CONFIG   169 /* R/W */
#define	EXT_CSD_BOOT_WP   173 /* R/W */
#define	EXT_CSD_ERASE_GROUP_DEF   175 /* R/W */
#define	EXT_CSD_PART_CONFIG   179 /* R/W */
#define	EXT_CSD_ERASED_MEM_CONT   181 /* RO */
#define	EXT_CSD_BUS_WIDTH   183 /* R/W */
#define	EXT_CSD_STROBE_SUPPORT   184 /* RO */
#define	EXT_CSD_HS_TIMING   185 /* R/W */
#define	EXT_CSD_POWER_CLASS   187 /* R/W */
#define	EXT_CSD_REV   192 /* RO */
#define	EXT_CSD_STRUCTURE   194 /* RO */
#define	EXT_CSD_CARD_TYPE   196 /* RO */
#define	EXT_CSD_DRIVER_STRENGTH   197 /* RO */
#define	EXT_CSD_OUT_OF_INTERRUPT_TIME   198 /* RO */
#define	EXT_CSD_PART_SWITCH_TIME   199 /* RO */
#define	EXT_CSD_PWR_CL_52_195   200 /* RO */
#define	EXT_CSD_PWR_CL_26_195   201 /* RO */
#define	EXT_CSD_PWR_CL_52_360   202 /* RO */
#define	EXT_CSD_PWR_CL_26_360   203 /* RO */
#define	EXT_CSD_SEC_CNT   212 /* RO, 4 bytes */
#define	EXT_CSD_S_A_TIMEOUT   217 /* RO */
#define	EXT_CSD_REL_WR_SEC_C   222 /* RO */
#define	EXT_CSD_HC_WP_GRP_SIZE   221 /* RO */
#define	EXT_CSD_ERASE_TIMEOUT_MULT   223 /* RO */
#define	EXT_CSD_HC_ERASE_GRP_SIZE   224 /* RO */
#define	EXT_CSD_BOOT_MULT   226 /* RO */
#define	EXT_CSD_SEC_TRIM_MULT   229 /* RO */
#define	EXT_CSD_SEC_ERASE_MULT   230 /* RO */
#define	EXT_CSD_SEC_FEATURE_SUPPORT   231 /* RO */
#define	EXT_CSD_TRIM_MULT   232 /* RO */
#define	EXT_CSD_PWR_CL_200_195   236 /* RO */
#define	EXT_CSD_PWR_CL_200_360   237 /* RO */
#define	EXT_CSD_PWR_CL_DDR_52_195   238 /* RO */
#define	EXT_CSD_PWR_CL_DDR_52_360   239 /* RO */
#define	EXT_CSD_BKOPS_STATUS   246 /* RO */
#define	EXT_CSD_POWER_OFF_LONG_TIME   247 /* RO */
#define	EXT_CSD_GENERIC_CMD6_TIME   248 /* RO */
#define	EXT_CSD_CACHE_SIZE   249 /* RO, 4 bytes */
#define	EXT_CSD_PWR_CL_DDR_200_360   253 /* RO */
#define	EXT_CSD_FIRMWARE_VERSION   254 /* RO, 8 bytes */
#define	EXT_CSD_PRE_EOL_INFO   267 /* RO */
#define	EXT_CSD_DEVICE_LIFE_TIME_EST_TYP_A   268 /* RO */
#define	EXT_CSD_DEVICE_LIFE_TIME_EST_TYP_B   269 /* RO */
#define	EXT_CSD_CMDQ_DEPTH   307 /* RO */
#define	EXT_CSD_CMDQ_SUPPORT   308 /* RO */
#define	EXT_CSD_SUPPORTED_MODE   493 /* RO */
#define	EXT_CSD_TAG_UNIT_SIZE   498 /* RO */
#define	EXT_CSD_DATA_TAG_SUPPORT   499 /* RO */
#define	EXT_CSD_MAX_PACKED_WRITES   500 /* RO */
#define	EXT_CSD_MAX_PACKED_READS   501 /* RO */
#define	EXT_CSD_BKOPS_SUPPORT   502 /* RO */
#define	EXT_CSD_HPI_FEATURES   503
#define	EXT_CSD_CMD_SET_NORMAL   (1 << 0)
#define	EXT_CSD_CMD_SET_SECURE   (1 << 1)
#define	EXT_CSD_CMD_SET_CPSECURE   (1 << 2)
#define	EXT_CSD_CARD_TYPE_HS_26   (1 << 0) /* Card can run at 26MHz */
#define	EXT_CSD_CARD_TYPE_HS_52   (1 << 1) /* Card can run at 52MHz */
#define	EXT_CSD_CARD_TYPE_HS   (EXT_CSD_CARD_TYPE_HS_26 | EXT_CSD_CARD_TYPE_HS_52)
#define	EXT_CSD_CARD_TYPE_DDR_1_8V   (1 << 2) /* Card can run at 52MHz */ /* DDR mode @1.8V or 3V I/O */
#define	EXT_CSD_CARD_TYPE_DDR_1_2V   (1 << 3) /* Card can run at 52MHz */ /* DDR mode @1.2V I/O */
#define	EXT_CSD_CARD_TYPE_DDR_52   (EXT_CSD_CARD_TYPE_DDR_1_8V | EXT_CSD_CARD_TYPE_DDR_1_2V)
#define	EXT_CSD_CARD_TYPE_HS200_1_8V   (1 << 4) /* Card can run at 200MHz */
#define	EXT_CSD_CARD_TYPE_HS200_1_2V   (1 << 5) /* Card can run at 200MHz */ /* SDR mode @1.2V I/O */
#define	EXT_CSD_CARD_TYPE_HS200   (EXT_CSD_CARD_TYPE_HS200_1_8V | EXT_CSD_CARD_TYPE_HS200_1_2V)
#define	EXT_CSD_CARD_TYPE_HS400_1_8V   (1 << 6) /* Card can run at 200MHz DDR, 1.8V */
#define	EXT_CSD_CARD_TYPE_HS400_1_2V   (1 << 7) /* Card can run at 200MHz DDR, 1.2V */
#define	EXT_CSD_CARD_TYPE_HS400   (EXT_CSD_CARD_TYPE_HS400_1_8V | EXT_CSD_CARD_TYPE_HS400_1_2V)
#define	EXT_CSD_BUS_WIDTH_1   0 /* Card is in 1 bit mode */
#define	EXT_CSD_BUS_WIDTH_4   1 /* Card is in 4 bit mode */
#define	EXT_CSD_BUS_WIDTH_8   2 /* Card is in 8 bit mode */
#define	EXT_CSD_BUS_DDR_4   5 /* Card is in 4 bit ddr mode */
#define	EXT_CSD_BUS_DDR_8   6 /* Card is in 8 bit ddr mode */
#define	EXT_CSD_TIMING_BC   0 /* Backwards compatibility */
#define	EXT_CSD_TIMING_HS   1 /* High speed */
#define	EXT_CSD_TIMING_HS200   2 /* HS200 */
#define	EXT_CSD_TIMING_HS400   3 /* HS400 */
#define	R1_ILLEGAL_COMMAND   (1 << 22)
#define	R1_APP_CMD   (1 << 5)
#define	MMC_RSP_PRESENT   (1 << 0)
#define	MMC_RSP_136   (1 << 1) /* 136 bit response */
#define	MMC_RSP_CRC   (1 << 2) /* expect valid crc */
#define	MMC_RSP_BUSY   (1 << 3) /* card may send busy */
#define	MMC_RSP_OPCODE   (1 << 4) /* response contains opcode */
#define	MMC_RSP_NONE   (0)
#define	MMC_RSP_R1   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE)
#define	MMC_RSP_R1b   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE | MMC_RSP_BUSY)
#define	MMC_RSP_R2   (MMC_RSP_PRESENT | MMC_RSP_136 | MMC_RSP_CRC)
#define	MMC_RSP_R3   (MMC_RSP_PRESENT)
#define	MMC_RSP_R4   (MMC_RSP_PRESENT)
#define	MMC_RSP_R5   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE)
#define	MMC_RSP_R6   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE)
#define	MMC_RSP_R7   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE)
#define	MMCPART_NOAVAILABLE   (0xff)
#define	PART_ACCESS_MASK   (0x7)
#define	PART_SUPPORT   (0x1)
#define	be32_to_cpu(x)   ((0x000000ff & ((x) >> 24)) | (0x0000ff00 & ((x) >> 8)) | (0x00ff0000 & ((x) << 8)) | (0xff000000 & ((x) << 24)))
#define	SUNXI_MMC_1X_2X_MODE_CONTROL_REG   (0x03000024)

Typedefs
typedef struct tune_sdly	tune_sdly_t
typedef struct mmc_cmd	mmc_cmd_t
typedef struct mmc_data	mmc_data_t
typedef struct mmc	mmc_t

Enumerations
enum	{   SD_VERSION_SD = 0x20000 , SD_VERSION_3 = (SD_VERSION_SD | 0x300) , SD_VERSION_2 = (SD_VERSION_SD | 0x200) , SD_VERSION_1_0 = (SD_VERSION_SD | 0x100) ,   SD_VERSION_1_10 = (SD_VERSION_SD | 0x10a) , MMC_VERSION_MMC = 0x10000 , MMC_VERSION_UNKNOWN = (MMC_VERSION_MMC) , MMC_VERSION_1_2 = (MMC_VERSION_MMC | 0x102) ,   MMC_VERSION_1_4 = (MMC_VERSION_MMC | 0x104) , MMC_VERSION_2_2 = (MMC_VERSION_MMC | 0x202) , MMC_VERSION_3 = (MMC_VERSION_MMC | 0x300) , MMC_VERSION_4 = (MMC_VERSION_MMC | 0x400) ,   MMC_VERSION_4_1 = (MMC_VERSION_MMC | 0x401) , MMC_VERSION_4_2 = (MMC_VERSION_MMC | 0x402) , MMC_VERSION_4_3 = (MMC_VERSION_MMC | 0x403) , MMC_VERSION_4_41 = (MMC_VERSION_MMC | 0x429) ,   MMC_VERSION_4_5 = (MMC_VERSION_MMC | 0x405) , MMC_VERSION_5_0 = (MMC_VERSION_MMC | 0x500) , MMC_VERSION_5_1 = (MMC_VERSION_MMC | 0x501) }
enum	sdhci_speed_mode_t {   MMC_DS26_SDR12 = 0 , MMC_HSSDR52_SDR25 = 1 , MMC_HSDDR52_DDR50 = 2 , MMC_HS200_SDR104 = 3 ,   MMC_HS400 = 4 , MMC_MAX_SPD_MD_NUM = 5 }
enum	sdhci_freq_point_t {   MMC_CLK_400K = 0 , MMC_CLK_25M = 1 , MMC_CLK_50M = 2 , MMC_CLK_100M = 3 ,   MMC_CLK_150M = 4 , MMC_CLK_200M = 5 , MMC_MAX_CLK_FREQ_NUM = 8 }
enum	sdhci_timing_mode { MMC_TIMING_MODE_1 = 1 , MMC_TIMING_MODE_3 = 3 , MMC_TIMING_MODE_4 = 4 }

Functions
int	sunxi_mmc_init (void *sdhci_hdl)
	Initializes the SD/MMC host controller and attached card.
uint32_t	sunxi_mmc_blk_read (void *sdhci, void *dst, uint32_t start, uint32_t blkcnt)
	Read blocks from the Sunxi MMC block device.
uint32_t	sunxi_mmc_blk_write (void *sdhci, void *dst, uint32_t start, uint32_t blkcnt)
	Writes blocks of data to the MMC device using the specified SDHCI instance.

Macro Definition Documentation

be32_to_cpu

#define be32_to_cpu

(

x

)

((0x000000ff & ((x) >> 24)) | (0x0000ff00 & ((x) >> 8)) | (0x00ff0000 & ((x) << 8)) | (0xff000000 & ((x) << 24)))

COMM_ERR

#define COMM_ERR   -18 /* Communications Error */

EXT_CSD_BKOPS_EN

#define EXT_CSD_BKOPS_EN   163 /* R/W */

EXT_CSD_BKOPS_START

#define EXT_CSD_BKOPS_START   164 /* W */

EXT_CSD_BKOPS_STATUS

#define EXT_CSD_BKOPS_STATUS   246 /* RO */

EXT_CSD_BKOPS_SUPPORT

#define EXT_CSD_BKOPS_SUPPORT   502 /* RO */

EXT_CSD_BOOT_MULT

#define EXT_CSD_BOOT_MULT   226 /* RO */

EXT_CSD_BOOT_WP

#define EXT_CSD_BOOT_WP   173 /* R/W */

EXT_CSD_BUS_DDR_4

#define EXT_CSD_BUS_DDR_4   5 /* Card is in 4 bit ddr mode */

EXT_CSD_BUS_DDR_8

#define EXT_CSD_BUS_DDR_8   6 /* Card is in 8 bit ddr mode */

EXT_CSD_BUS_WIDTH

#define EXT_CSD_BUS_WIDTH   183 /* R/W */

EXT_CSD_BUS_WIDTH_1

#define EXT_CSD_BUS_WIDTH_1   0 /* Card is in 1 bit mode */

EXT_CSD_BUS_WIDTH_4

#define EXT_CSD_BUS_WIDTH_4   1 /* Card is in 4 bit mode */

EXT_CSD_BUS_WIDTH_8

#define EXT_CSD_BUS_WIDTH_8   2 /* Card is in 8 bit mode */

EXT_CSD_CACHE_CTRL

#define EXT_CSD_CACHE_CTRL   33 /* R/W */

EXT_CSD_CACHE_SIZE

#define EXT_CSD_CACHE_SIZE   249 /* RO, 4 bytes */

EXT_CSD_CARD_TYPE

#define EXT_CSD_CARD_TYPE   196 /* RO */

EXT_CSD_CARD_TYPE_DDR_1_2V

#define EXT_CSD_CARD_TYPE_DDR_1_2V   (1 << 3) /* Card can run at 52MHz */ /* DDR mode @1.2V I/O */

EXT_CSD_CARD_TYPE_DDR_1_8V

#define EXT_CSD_CARD_TYPE_DDR_1_8V   (1 << 2) /* Card can run at 52MHz */ /* DDR mode @1.8V or 3V I/O */

EXT_CSD_CARD_TYPE_DDR_52

#define EXT_CSD_CARD_TYPE_DDR_52   (EXT_CSD_CARD_TYPE_DDR_1_8V | EXT_CSD_CARD_TYPE_DDR_1_2V)

EXT_CSD_CARD_TYPE_HS

#define EXT_CSD_CARD_TYPE_HS   (EXT_CSD_CARD_TYPE_HS_26 | EXT_CSD_CARD_TYPE_HS_52)

EXT_CSD_CARD_TYPE_HS200

#define EXT_CSD_CARD_TYPE_HS200   (EXT_CSD_CARD_TYPE_HS200_1_8V | EXT_CSD_CARD_TYPE_HS200_1_2V)

EXT_CSD_CARD_TYPE_HS200_1_2V

#define EXT_CSD_CARD_TYPE_HS200_1_2V   (1 << 5) /* Card can run at 200MHz */ /* SDR mode @1.2V I/O */

EXT_CSD_CARD_TYPE_HS200_1_8V

#define EXT_CSD_CARD_TYPE_HS200_1_8V   (1 << 4) /* Card can run at 200MHz */

EXT_CSD_CARD_TYPE_HS400

#define EXT_CSD_CARD_TYPE_HS400   (EXT_CSD_CARD_TYPE_HS400_1_8V | EXT_CSD_CARD_TYPE_HS400_1_2V)

EXT_CSD_CARD_TYPE_HS400_1_2V

#define EXT_CSD_CARD_TYPE_HS400_1_2V   (1 << 7) /* Card can run at 200MHz DDR, 1.2V */

EXT_CSD_CARD_TYPE_HS400_1_8V

#define EXT_CSD_CARD_TYPE_HS400_1_8V   (1 << 6) /* Card can run at 200MHz DDR, 1.8V */

EXT_CSD_CARD_TYPE_HS_26

#define EXT_CSD_CARD_TYPE_HS_26   (1 << 0) /* Card can run at 26MHz */

EXT_CSD_CARD_TYPE_HS_52

#define EXT_CSD_CARD_TYPE_HS_52   (1 << 1) /* Card can run at 52MHz */

EXT_CSD_CMD_SET_CPSECURE

#define EXT_CSD_CMD_SET_CPSECURE   (1 << 2)

EXT_CSD_CMD_SET_NORMAL

#define EXT_CSD_CMD_SET_NORMAL   (1 << 0)

EXT_CSD_CMD_SET_SECURE

#define EXT_CSD_CMD_SET_SECURE   (1 << 1)

EXT_CSD_CMDQ_DEPTH

#define EXT_CSD_CMDQ_DEPTH   307 /* RO */

EXT_CSD_CMDQ_MODE_EN

#define EXT_CSD_CMDQ_MODE_EN   15 /* R/W */

EXT_CSD_CMDQ_SUPPORT

#define EXT_CSD_CMDQ_SUPPORT   308 /* RO */

EXT_CSD_DATA_SECTOR_SIZE

#define EXT_CSD_DATA_SECTOR_SIZE   61 /* R */

EXT_CSD_DATA_TAG_SUPPORT

#define EXT_CSD_DATA_TAG_SUPPORT   499 /* RO */

EXT_CSD_DEVICE_LIFE_TIME_EST_TYP_A

#define EXT_CSD_DEVICE_LIFE_TIME_EST_TYP_A   268 /* RO */

EXT_CSD_DEVICE_LIFE_TIME_EST_TYP_B

#define EXT_CSD_DEVICE_LIFE_TIME_EST_TYP_B   269 /* RO */

EXT_CSD_DRIVER_STRENGTH

#define EXT_CSD_DRIVER_STRENGTH   197 /* RO */

EXT_CSD_ERASE_GROUP_DEF

#define EXT_CSD_ERASE_GROUP_DEF   175 /* R/W */

EXT_CSD_ERASE_TIMEOUT_MULT

#define EXT_CSD_ERASE_TIMEOUT_MULT   223 /* RO */

EXT_CSD_ERASED_MEM_CONT

#define EXT_CSD_ERASED_MEM_CONT   181 /* RO */

EXT_CSD_EXP_EVENTS_CTRL

#define EXT_CSD_EXP_EVENTS_CTRL   56 /* R/W, 2 bytes */

EXT_CSD_EXP_EVENTS_STATUS

#define EXT_CSD_EXP_EVENTS_STATUS   54 /* RO, 2 bytes */

EXT_CSD_FIRMWARE_VERSION

#define EXT_CSD_FIRMWARE_VERSION   254 /* RO, 8 bytes */

EXT_CSD_FLUSH_CACHE

#define EXT_CSD_FLUSH_CACHE   32 /* W */

EXT_CSD_FW_CONFIG

#define EXT_CSD_FW_CONFIG   169 /* R/W */

EXT_CSD_GENERIC_CMD6_TIME

#define EXT_CSD_GENERIC_CMD6_TIME   248 /* RO */

EXT_CSD_GP_SIZE_MULT

#define EXT_CSD_GP_SIZE_MULT   143 /* R/W */

EXT_CSD_HC_ERASE_GRP_SIZE

#define EXT_CSD_HC_ERASE_GRP_SIZE   224 /* RO */

EXT_CSD_HC_WP_GRP_SIZE

#define EXT_CSD_HC_WP_GRP_SIZE   221 /* RO */

EXT_CSD_HPI_FEATURES

#define EXT_CSD_HPI_FEATURES   503

EXT_CSD_HPI_MGMT

#define EXT_CSD_HPI_MGMT   161 /* R/W */

EXT_CSD_HS_TIMING

#define EXT_CSD_HS_TIMING   185 /* R/W */

EXT_CSD_MAX_PACKED_READS

#define EXT_CSD_MAX_PACKED_READS   501 /* RO */

EXT_CSD_MAX_PACKED_WRITES

#define EXT_CSD_MAX_PACKED_WRITES   500 /* RO */

EXT_CSD_OUT_OF_INTERRUPT_TIME

#define EXT_CSD_OUT_OF_INTERRUPT_TIME   198 /* RO */

EXT_CSD_PACKED_CMD_STATUS

#define EXT_CSD_PACKED_CMD_STATUS   36 /* RO */

EXT_CSD_PACKED_FAILURE_INDEX

#define EXT_CSD_PACKED_FAILURE_INDEX   35 /* RO */

EXT_CSD_PART_CONFIG

#define EXT_CSD_PART_CONFIG   179 /* R/W */

EXT_CSD_PART_SWITCH_TIME

#define EXT_CSD_PART_SWITCH_TIME   199 /* RO */

EXT_CSD_PARTITION_ATTRIBUTE

#define EXT_CSD_PARTITION_ATTRIBUTE   156 /* R/W */

EXT_CSD_PARTITION_SETTING_COMPLETED

#define EXT_CSD_PARTITION_SETTING_COMPLETED   155 /* R/W */

EXT_CSD_PARTITION_SUPPORT

#define EXT_CSD_PARTITION_SUPPORT   160 /* RO */

EXT_CSD_POWER_CLASS

#define EXT_CSD_POWER_CLASS   187 /* R/W */

EXT_CSD_POWER_OFF_LONG_TIME

#define EXT_CSD_POWER_OFF_LONG_TIME   247 /* RO */

EXT_CSD_POWER_OFF_NOTIFICATION

#define EXT_CSD_POWER_OFF_NOTIFICATION   34 /* R/W */

EXT_CSD_PRE_EOL_INFO

#define EXT_CSD_PRE_EOL_INFO   267 /* RO */

EXT_CSD_PWR_CL_200_195

#define EXT_CSD_PWR_CL_200_195   236 /* RO */

EXT_CSD_PWR_CL_200_360

#define EXT_CSD_PWR_CL_200_360   237 /* RO */

EXT_CSD_PWR_CL_26_195

#define EXT_CSD_PWR_CL_26_195   201 /* RO */

EXT_CSD_PWR_CL_26_360

#define EXT_CSD_PWR_CL_26_360   203 /* RO */

EXT_CSD_PWR_CL_52_195

#define EXT_CSD_PWR_CL_52_195   200 /* RO */

EXT_CSD_PWR_CL_52_360

#define EXT_CSD_PWR_CL_52_360   202 /* RO */

EXT_CSD_PWR_CL_DDR_200_360

#define EXT_CSD_PWR_CL_DDR_200_360   253 /* RO */

EXT_CSD_PWR_CL_DDR_52_195

#define EXT_CSD_PWR_CL_DDR_52_195   238 /* RO */

EXT_CSD_PWR_CL_DDR_52_360

#define EXT_CSD_PWR_CL_DDR_52_360   239 /* RO */

EXT_CSD_REL_WR_SEC_C

#define EXT_CSD_REL_WR_SEC_C   222 /* RO */

EXT_CSD_REV

#define EXT_CSD_REV   192 /* RO */

EXT_CSD_RPMB_MULT

#define EXT_CSD_RPMB_MULT   168 /* RO */

EXT_CSD_RST_N_FUNCTION

#define EXT_CSD_RST_N_FUNCTION   162 /* R/W */

EXT_CSD_S_A_TIMEOUT

#define EXT_CSD_S_A_TIMEOUT   217 /* RO */

EXT_CSD_SANITIZE_START

#define EXT_CSD_SANITIZE_START   165 /* W */

EXT_CSD_SEC_CNT

#define EXT_CSD_SEC_CNT   212 /* RO, 4 bytes */

EXT_CSD_SEC_ERASE_MULT

#define EXT_CSD_SEC_ERASE_MULT   230 /* RO */

EXT_CSD_SEC_FEATURE_SUPPORT

#define EXT_CSD_SEC_FEATURE_SUPPORT   231 /* RO */

EXT_CSD_SEC_TRIM_MULT

#define EXT_CSD_SEC_TRIM_MULT   229 /* RO */

EXT_CSD_STROBE_SUPPORT

#define EXT_CSD_STROBE_SUPPORT   184 /* RO */

EXT_CSD_STRUCTURE

#define EXT_CSD_STRUCTURE   194 /* RO */

EXT_CSD_SUPPORTED_MODE

#define EXT_CSD_SUPPORTED_MODE   493 /* RO */

EXT_CSD_TAG_UNIT_SIZE

#define EXT_CSD_TAG_UNIT_SIZE   498 /* RO */

EXT_CSD_TIMING_BC

#define EXT_CSD_TIMING_BC   0 /* Backwards compatibility */

EXT_CSD_TIMING_HS

#define EXT_CSD_TIMING_HS   1 /* High speed */

EXT_CSD_TIMING_HS200

#define EXT_CSD_TIMING_HS200   2 /* HS200 */

EXT_CSD_TIMING_HS400

#define EXT_CSD_TIMING_HS400   3 /* HS400 */

EXT_CSD_TRIM_MULT

#define EXT_CSD_TRIM_MULT   232 /* RO */

EXT_CSD_WR_REL_PARAM

#define EXT_CSD_WR_REL_PARAM   166 /* RO */

MMC_CMD_ALL_SEND_CID

#define MMC_CMD_ALL_SEND_CID   2

MMC_CMD_APP_CMD

#define MMC_CMD_APP_CMD   55

MMC_CMD_ERASE

#define MMC_CMD_ERASE   38

MMC_CMD_ERASE_GROUP_END

#define MMC_CMD_ERASE_GROUP_END   36

MMC_CMD_ERASE_GROUP_START

#define MMC_CMD_ERASE_GROUP_START   35

MMC_CMD_GO_IDLE_STATE

#define MMC_CMD_GO_IDLE_STATE   0

MMC_CMD_MANUAL

#define MMC_CMD_MANUAL   1

MMC_CMD_READ_MULTIPLE_BLOCK

#define MMC_CMD_READ_MULTIPLE_BLOCK   18

MMC_CMD_READ_SINGLE_BLOCK

#define MMC_CMD_READ_SINGLE_BLOCK   17

MMC_CMD_SELECT_CARD

#define MMC_CMD_SELECT_CARD   7

MMC_CMD_SEND_CID

#define MMC_CMD_SEND_CID   10

MMC_CMD_SEND_CSD

#define MMC_CMD_SEND_CSD   9

MMC_CMD_SEND_EXT_CSD

#define MMC_CMD_SEND_EXT_CSD   8

MMC_CMD_SEND_OP_COND

#define MMC_CMD_SEND_OP_COND   1

MMC_CMD_SEND_STATUS

#define MMC_CMD_SEND_STATUS   13

MMC_CMD_SET_BLOCKLEN

#define MMC_CMD_SET_BLOCKLEN   16

MMC_CMD_SET_DSR

#define MMC_CMD_SET_DSR   4

MMC_CMD_SET_RELATIVE_ADDR

#define MMC_CMD_SET_RELATIVE_ADDR   3

MMC_CMD_SPI_CRC_ON_OFF

#define MMC_CMD_SPI_CRC_ON_OFF   59

MMC_CMD_SPI_READ_OCR

#define MMC_CMD_SPI_READ_OCR   58

MMC_CMD_STOP_TRANSMISSION

#define MMC_CMD_STOP_TRANSMISSION   12

MMC_CMD_SWITCH

#define MMC_CMD_SWITCH   6

MMC_CMD_WRITE_MULTIPLE_BLOCK

#define MMC_CMD_WRITE_MULTIPLE_BLOCK   25

MMC_CMD_WRITE_SINGLE_BLOCK

#define MMC_CMD_WRITE_SINGLE_BLOCK   24

MMC_DATA_READ

#define MMC_DATA_READ   (1U << 0)

MMC_DATA_WRITE

#define MMC_DATA_WRITE   (1U << 1)

MMC_DDR_52MHZ

#define MMC_DDR_52MHZ   0x4

MMC_HS_52MHZ

#define MMC_HS_52MHZ   0x2

MMC_HS_TIMING

#define MMC_HS_TIMING   0x00000100

MMC_MODE_4BIT

#define MMC_MODE_4BIT   (1 << 2)

MMC_MODE_8BIT

#define MMC_MODE_8BIT   (1 << 3)

MMC_MODE_DDR_52MHz

#define MMC_MODE_DDR_52MHz   (1 << 6) /* can run at 52Mhz with DDR mode -- HSDDR52_DDR50 */

MMC_MODE_HC

#define MMC_MODE_HC   (1 << 5)

MMC_MODE_HS

#define MMC_MODE_HS   (1 << 0) /* can run at 26MHz -- DS26_SDR12 */

MMC_MODE_HS200

#define MMC_MODE_HS200   (1 << 7) /* can run at 200/208MHz with SDR mode -- HS200_SDR104 */

MMC_MODE_HS400

#define MMC_MODE_HS400   (1 << 8) /* can run at 200MHz with DDR mode -- HS400 */

MMC_MODE_HS_52MHz

#define MMC_MODE_HS_52MHz   (1 << 1) /* can run at 52MHz with SDR mode -- HSSDR52_SDR25 */

MMC_MODE_SPI

#define MMC_MODE_SPI   (1 << 4)

MMC_RSP_136

#define MMC_RSP_136   (1 << 1) /* 136 bit response */

MMC_RSP_BUSY

#define MMC_RSP_BUSY   (1 << 3) /* card may send busy */

MMC_RSP_CRC

#define MMC_RSP_CRC   (1 << 2) /* expect valid crc */

MMC_RSP_NONE

#define MMC_RSP_NONE   (0)

MMC_RSP_OPCODE

#define MMC_RSP_OPCODE   (1 << 4) /* response contains opcode */

MMC_RSP_PRESENT

#define MMC_RSP_PRESENT   (1 << 0)

MMC_RSP_R1

#define MMC_RSP_R1   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE)

MMC_RSP_R1b

#define MMC_RSP_R1b   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE | MMC_RSP_BUSY)

MMC_RSP_R2

#define MMC_RSP_R2   (MMC_RSP_PRESENT | MMC_RSP_136 | MMC_RSP_CRC)

MMC_RSP_R3

#define MMC_RSP_R3   (MMC_RSP_PRESENT)

MMC_RSP_R4

#define MMC_RSP_R4   (MMC_RSP_PRESENT)

MMC_RSP_R5

#define MMC_RSP_R5   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE)

MMC_RSP_R6

#define MMC_RSP_R6   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE)

MMC_RSP_R7

#define MMC_RSP_R7   (MMC_RSP_PRESENT | MMC_RSP_CRC | MMC_RSP_OPCODE)

MMC_STATUS_CURR_STATE

#define MMC_STATUS_CURR_STATE   (0xf << 9)

MMC_STATUS_ERROR

#define MMC_STATUS_ERROR   (1 << 19)

MMC_STATUS_MASK

#define MMC_STATUS_MASK   (~0x0206BF7F)

MMC_STATUS_RDY_FOR_DATA

#define MMC_STATUS_RDY_FOR_DATA   (1 << 8)

MMC_SWITCH_MODE_CLEAR_BITS

#define MMC_SWITCH_MODE_CLEAR_BITS   0x02 /* Clear bits in EXT_CSD byte addressed by index, which are 1 in value field */

MMC_SWITCH_MODE_CMD_SET

#define MMC_SWITCH_MODE_CMD_SET   0x00 /* Change the command set */

MMC_SWITCH_MODE_SET_BITS

#define MMC_SWITCH_MODE_SET_BITS   0x01 /* Set bits in EXT_CSD byte addressed by index which are 1 in value field */

MMC_SWITCH_MODE_WRITE_BYTE

#define MMC_SWITCH_MODE_WRITE_BYTE   0x03 /* Set target byte to value */

MMC_VDD_165_195

#define MMC_VDD_165_195   0x00000080 /* VDD voltage 1.65 - 1.95 */

MMC_VDD_20_21

#define MMC_VDD_20_21   0x00000100 /* VDD voltage 2.0 ~ 2.1 */

MMC_VDD_21_22

#define MMC_VDD_21_22   0x00000200 /* VDD voltage 2.1 ~ 2.2 */

MMC_VDD_22_23

#define MMC_VDD_22_23   0x00000400 /* VDD voltage 2.2 ~ 2.3 */

MMC_VDD_23_24

#define MMC_VDD_23_24   0x00000800 /* VDD voltage 2.3 ~ 2.4 */

MMC_VDD_24_25

#define MMC_VDD_24_25   0x00001000 /* VDD voltage 2.4 ~ 2.5 */

MMC_VDD_25_26

#define MMC_VDD_25_26   0x00002000 /* VDD voltage 2.5 ~ 2.6 */

MMC_VDD_26_27

#define MMC_VDD_26_27   0x00004000 /* VDD voltage 2.6 ~ 2.7 */

MMC_VDD_27_28

#define MMC_VDD_27_28   0x00008000 /* VDD voltage 2.7 ~ 2.8 */

MMC_VDD_28_29

#define MMC_VDD_28_29   0x00010000 /* VDD voltage 2.8 ~ 2.9 */

MMC_VDD_29_30

#define MMC_VDD_29_30   0x00020000 /* VDD voltage 2.9 ~ 3.0 */

MMC_VDD_30_31

#define MMC_VDD_30_31   0x00040000 /* VDD voltage 3.0 ~ 3.1 */

MMC_VDD_31_32

#define MMC_VDD_31_32   0x00080000 /* VDD voltage 3.1 ~ 3.2 */

MMC_VDD_32_33

#define MMC_VDD_32_33   0x00100000 /* VDD voltage 3.2 ~ 3.3 */

MMC_VDD_33_34

#define MMC_VDD_33_34   0x00200000 /* VDD voltage 3.3 ~ 3.4 */

MMC_VDD_34_35

#define MMC_VDD_34_35   0x00400000 /* VDD voltage 3.4 ~ 3.5 */

MMC_VDD_35_36

#define MMC_VDD_35_36   0x00800000 /* VDD voltage 3.5 ~ 3.6 */

MMCPART_NOAVAILABLE

#define MMCPART_NOAVAILABLE   (0xff)

NO_CARD_ERR

#define NO_CARD_ERR   -16 /* No SD/MMC card inserted */

OCR_ACCESS_MODE

#define OCR_ACCESS_MODE   0x60000000

OCR_BUSY

#define OCR_BUSY   0x80000000

OCR_HCS

#define OCR_HCS   0x40000000

OCR_VOLTAGE_MASK

#define OCR_VOLTAGE_MASK   0x007FFF80

PART_ACCESS_MASK

#define PART_ACCESS_MASK   (0x7)

PART_SUPPORT

#define PART_SUPPORT   (0x1)

R1_APP_CMD

#define R1_APP_CMD   (1 << 5)

R1_ILLEGAL_COMMAND

#define R1_ILLEGAL_COMMAND   (1 << 22)

SD_CMD_APP_SEND_OP_COND

#define SD_CMD_APP_SEND_OP_COND   41

SD_CMD_APP_SEND_SCR

#define SD_CMD_APP_SEND_SCR   51

SD_CMD_APP_SET_BUS_WIDTH

#define SD_CMD_APP_SET_BUS_WIDTH   6

SD_CMD_ERASE_WR_BLK_END

#define SD_CMD_ERASE_WR_BLK_END   33

SD_CMD_ERASE_WR_BLK_START

#define SD_CMD_ERASE_WR_BLK_START   32

SD_CMD_SEND_IF_COND

#define SD_CMD_SEND_IF_COND   8

SD_CMD_SEND_RELATIVE_ADDR

#define SD_CMD_SEND_RELATIVE_ADDR   3

SD_CMD_SWITCH_FUNC

#define SD_CMD_SWITCH_FUNC   6

SD_DATA_4BIT

#define SD_DATA_4BIT   0x00040000

SD_HIGHSPEED_BUSY

#define SD_HIGHSPEED_BUSY   0x00020000

SD_HIGHSPEED_SUPPORTED

#define SD_HIGHSPEED_SUPPORTED   0x00020000

SD_SWITCH_CHECK

#define SD_SWITCH_CHECK   0

SD_SWITCH_SWITCH

#define SD_SWITCH_SWITCH   1

SECURE_ERASE

#define SECURE_ERASE   0x80000000

SUNXI_MMC_1X_2X_MODE_CONTROL_REG

#define SUNXI_MMC_1X_2X_MODE_CONTROL_REG   (0x03000024)

TIMEOUT

#define TIMEOUT   -19

UNUSABLE_ERR

#define UNUSABLE_ERR   -17 /* Unusable Card */

Typedef Documentation

mmc_cmd_t

typedef struct mmc_cmd mmc_cmd_t

mmc_data_t

typedef struct mmc_data mmc_data_t

mmc_t

typedef struct mmc mmc_t

tune_sdly_t

typedef struct tune_sdly tune_sdly_t

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
SD_VERSION_SD
SD_VERSION_3
SD_VERSION_2
SD_VERSION_1_0
SD_VERSION_1_10
MMC_VERSION_MMC
MMC_VERSION_UNKNOWN
MMC_VERSION_1_2
MMC_VERSION_1_4
MMC_VERSION_2_2
MMC_VERSION_3
MMC_VERSION_4
MMC_VERSION_4_1
MMC_VERSION_4_2
MMC_VERSION_4_3
MMC_VERSION_4_41
MMC_VERSION_4_5
MMC_VERSION_5_0
MMC_VERSION_5_1

sdhci_freq_point_t

enum sdhci_freq_point_t

Enumerator
MMC_CLK_400K
MMC_CLK_25M
MMC_CLK_50M
MMC_CLK_100M
MMC_CLK_150M
MMC_CLK_200M
MMC_MAX_CLK_FREQ_NUM

sdhci_speed_mode_t

enum sdhci_speed_mode_t

Enumerator
MMC_DS26_SDR12
MMC_HSSDR52_SDR25
MMC_HSDDR52_DDR50
MMC_HS200_SDR104
MMC_HS400
MMC_MAX_SPD_MD_NUM

sdhci_timing_mode

enum sdhci_timing_mode

Enumerator
MMC_TIMING_MODE_1
MMC_TIMING_MODE_3
MMC_TIMING_MODE_4

Function Documentation

sunxi_mmc_blk_read()

uint32_t sunxi_mmc_blk_read	(	void *	sdhci,
		void *	dst,
		uint32_t	start,
		uint32_t	blkcnt
	)

Read blocks from the Sunxi MMC block device.

This function reads a specified number of blocks from the Sunxi MMC block device and stores the data into the destination buffer.

Parameters

sdhci	Pointer to the Sunxi SD Host Controller instance
dst	Pointer to the destination buffer where the read data will be stored
start	The starting block number to read from
blkcnt	The number of blocks to read

Returns

Returns 0 on success, or an error code if the operation fails

sunxi_mmc_blk_write()

uint32_t sunxi_mmc_blk_write	(	void *	sdhci,
		void *	dst,
		uint32_t	start,
		uint32_t	blkcnt
	)

Writes blocks of data to the MMC device using the specified SDHCI instance.

This function writes a specified number of blocks to the MMC (MultiMediaCard) device associated with the given SDHCI (SD Host Controller Interface) instance. It serves as a wrapper around the sunxi_mmc_write_blocks function, providing a simplified interface for block data write operations.

Parameters

[in]	sdhci	A pointer to the SDHCI instance.
[in]	dst	A pointer to the destination buffer from which data will be written to the MMC.
[in]	start	The starting block number where the data writing begins.
[in]	blkcnt	The number of blocks to write.

Returns

The number of blocks successfully written, or 0 if writing failed.

sunxi_mmc_init()

int sunxi_mmc_init

(

void *

sdhci_hdl

)

Initializes the SD/MMC host controller and attached card.

This function initializes the specified SD/MMC host controller and the attached SD/MMC card. It initializes the host controller core, sets the bus width and clock speed, resets the card, and initializes the card based on its type (SD or eMMC). Finally, it probes the card to retrieve card-specific data.

Parameters

sdhci_hdl

Pointer to the SD/MMC host controller structure.

Returns

0 on success, or an error code if an error occurred during initialization.
