#include <reg-ncat.h>

Include dependency graph for sysmap.h:

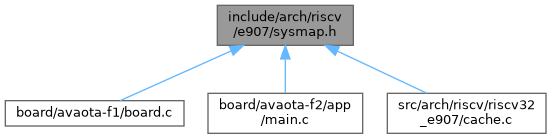

This graph shows which files directly or indirectly include this file:

Macros
#define	PLAT_SYSMAP_BASE_ADDR (SUNXI_PLAT_TCIP_BASE_ADDR + 0xFFFF000)

#define	SYSMAP_REGION_NUM 8

#define	SYSMAP_MEM_ATTR_SO 0x10

#define	SYSMAP_MEM_ATTR_CACHEABLE 0x8

#define	SYSMAP_MEM_ATTR_BUFFERABLE 0x4

#define	SYSMAP_MEM_ATTR_MASK (SYSMAP_MEM_ATTR_SO \| SYSMAP_MEM_ATTR_CACHEABLE \| SYSMAP_MEM_ATTR_BUFFERABLE)

#define	SYSMAP_MEM_ATTR_SO_NC_NB (SYSMAP_MEM_ATTR_SO)

#define	SYSMAP_MEM_ATTR_SO_NC_B (SYSMAP_MEM_ATTR_SO \| SYSMAP_MEM_ATTR_BUFFERABLE)

#define	SYSMAP_MEM_ATTR_WO_NC_NB (0)

#define	SYSMAP_MEM_ATTR_WO_NC_B (SYSMAP_MEM_ATTR_BUFFERABLE)

#define	SYSMAP_MEM_ATTR_WO_C_NB (SYSMAP_MEM_ATTR_CACHEABLE)

#define	SYSMAP_MEM_ATTR_WO_C_B (SYSMAP_MEM_ATTR_CACHEABLE \| SYSMAP_MEM_ATTR_BUFFERABLE)

#define	SYSMAP_MEM_ATTR_DEVICE (SYSMAP_MEM_ATTR_SO_NC_NB)

#define	SYSMAP_MEM_ATTR_RAM (SYSMAP_MEM_ATTR_WO_C_B)

#define	SYSMAP_ADDR_SHIFT 12

#define	SYSMAP_ADDR_ALIGN_SIZE (1 << SYSMAP_ADDR_SHIFT)

#define	IS_MEM_ADDR_ALIGNED(addr) (!(addr & (SYSMAP_ADDR_ALIGN_SIZE - 1)))

Functions
void	sysmap_dump_region_info (void)

Macro Definition Documentation

◆ IS_MEM_ADDR_ALIGNED

#define IS_MEM_ADDR_ALIGNED ( addr ) (!(addr & (SYSMAP_ADDR_ALIGN_SIZE - 1)))

◆ PLAT_SYSMAP_BASE_ADDR

#define PLAT_SYSMAP_BASE_ADDR (SUNXI_PLAT_TCIP_BASE_ADDR + 0xFFFF000)

◆ SYSMAP_ADDR_ALIGN_SIZE

#define SYSMAP_ADDR_ALIGN_SIZE (1 << SYSMAP_ADDR_SHIFT)

◆ SYSMAP_ADDR_SHIFT

#define SYSMAP_ADDR_SHIFT 12

◆ SYSMAP_MEM_ATTR_BUFFERABLE

#define SYSMAP_MEM_ATTR_BUFFERABLE 0x4

◆ SYSMAP_MEM_ATTR_CACHEABLE

#define SYSMAP_MEM_ATTR_CACHEABLE 0x8

◆ SYSMAP_MEM_ATTR_DEVICE

#define SYSMAP_MEM_ATTR_DEVICE (SYSMAP_MEM_ATTR_SO_NC_NB)

◆ SYSMAP_MEM_ATTR_MASK

#define SYSMAP_MEM_ATTR_MASK (SYSMAP_MEM_ATTR_SO | SYSMAP_MEM_ATTR_CACHEABLE | SYSMAP_MEM_ATTR_BUFFERABLE)

◆ SYSMAP_MEM_ATTR_RAM

#define SYSMAP_MEM_ATTR_RAM (SYSMAP_MEM_ATTR_WO_C_B)

◆ SYSMAP_MEM_ATTR_SO

#define SYSMAP_MEM_ATTR_SO 0x10

◆ SYSMAP_MEM_ATTR_SO_NC_B

#define SYSMAP_MEM_ATTR_SO_NC_B (SYSMAP_MEM_ATTR_SO | SYSMAP_MEM_ATTR_BUFFERABLE)

◆ SYSMAP_MEM_ATTR_SO_NC_NB

#define SYSMAP_MEM_ATTR_SO_NC_NB (SYSMAP_MEM_ATTR_SO)

◆ SYSMAP_MEM_ATTR_WO_C_B

#define SYSMAP_MEM_ATTR_WO_C_B (SYSMAP_MEM_ATTR_CACHEABLE | SYSMAP_MEM_ATTR_BUFFERABLE)

◆ SYSMAP_MEM_ATTR_WO_C_NB

#define SYSMAP_MEM_ATTR_WO_C_NB (SYSMAP_MEM_ATTR_CACHEABLE)

◆ SYSMAP_MEM_ATTR_WO_NC_B

#define SYSMAP_MEM_ATTR_WO_NC_B (SYSMAP_MEM_ATTR_BUFFERABLE)

◆ SYSMAP_MEM_ATTR_WO_NC_NB

#define SYSMAP_MEM_ATTR_WO_NC_NB (0)

◆ SYSMAP_REGION_NUM

#define SYSMAP_REGION_NUM 8

Function Documentation

◆ sysmap_dump_region_info()

void sysmap_dump_region_info ( void )
