cache.c File Reference

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <stdlib.h>
#include <types.h>
#include <barrier.h>
#include <mmu.h>
#include <timer.h>
#include <csr.h>
#include <common.h>
#include <log.h>
#include <e907/sysmap.h>

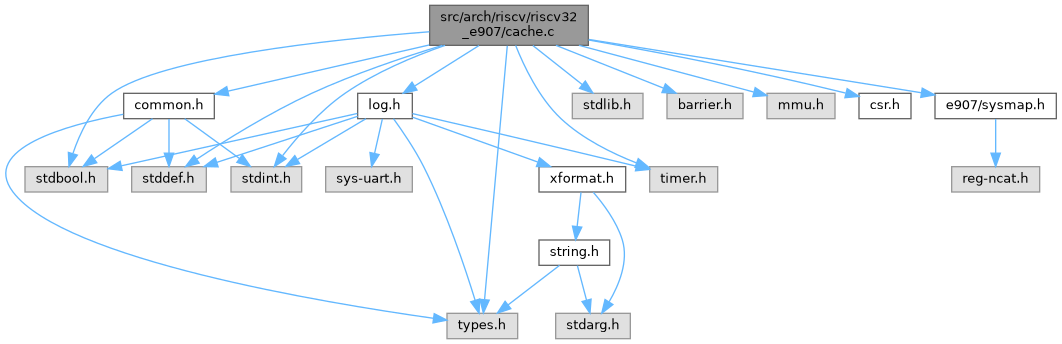

Include dependency graph for cache.c:

Macros
#define	L1_CACHE_BYTES   (32)
	Size of L1 cache line in bytes.

Enumerations
enum	sysmap_ret_code {   SYSMAP_RET_OK = 0 , SYSMAP_RET_INVALID_MEM_ADDR = -100 , SYSMAP_RET_INVALID_MEM_LEN , SYSMAP_RET_INVALID_MEM_ATTR ,   SYSMAP_RET_REGION_IS_FULL , SYSMAP_RET_REGION_NOT_ENOUGH }

Functions
static uint32_t	sysmap_region_get_upper_limit (uint32_t region_index)
static uint32_t	sysmap_region_get_mem_attr (uint32_t region_index)
static void	sysmap_region_set_upper_limit (uint32_t region_index, uint32_t upper_limit_addr)
static void	sysmap_region_set_mem_attr (uint32_t region_index, uint32_t mem_attr)
static uint32_t	get_mem_region_upper_limit (uint32_t region_index)
static uint32_t	get_mem_region_start_addr (uint32_t region_index)
static uint32_t	get_mem_region_end_addr (uint32_t region_index)
static uint32_t	get_mem_region_len (uint32_t region_index)
static uint32_t	get_mem_region_attr (uint32_t region_index)
static void	set_mem_region_upper_limit (uint32_t region_index, uint32_t upper_limit_addr)
static void	set_mem_region_attr (uint32_t region_index, uint32_t mem_attr)
static void	sysmap_setup_mem_region (uint32_t region_index, uint32_t upper_limit_addr, uint32_t mem_attr)
static void	setup_mem_region (uint32_t region_index, uint32_t start_addr, uint32_t len, uint32_t mem_attr)
int	sysmap_add_mem_region (uint32_t start_addr, uint32_t len, uint32_t mem_attr)
	Adds a memory region to the system memory map.
void	sysmap_dump_region_info (void)
void	data_sync_barrier (void)
	Insert a data synchronization barrier.
void	cache_init (void)
	Initialize the cache configuration.
void	dcache_enable (void)
	Enable the data cache.
void	icache_enable (void)
	Enable the instruction cache.
void	mmu_enable (void)
	Enable the SV39 MMU with cache initialization.
void	flush_dcache_range (uint64_t start, uint64_t end)
	Flush a range of the data cache.
void	invalidate_dcache_range (uint64_t start, uint64_t end)
	Invalidate a range of the data cache.
void	flush_dcache_all ()
	Flushes the entire data cache.
void	invalidate_dcache_all ()
	Invalidates the entire data cache.

Variables
static uint32_t	region_index = 0

Macro Definition Documentation

L1_CACHE_BYTES

#define L1_CACHE_BYTES   (32)

Size of L1 cache line in bytes.

Enumeration Type Documentation

sysmap_ret_code

enum sysmap_ret_code

Enumerator
SYSMAP_RET_OK
SYSMAP_RET_INVALID_MEM_ADDR
SYSMAP_RET_INVALID_MEM_LEN
SYSMAP_RET_INVALID_MEM_ATTR
SYSMAP_RET_REGION_IS_FULL
SYSMAP_RET_REGION_NOT_ENOUGH

Function Documentation

cache_init()

void cache_init

(

void

)

Initialize the cache configuration.

This function configures the cache settings by writing specific values to the control and status registers.

data_sync_barrier()

void data_sync_barrier

(

void

)

Insert a data synchronization barrier.

This function ensures that all previous instructions are completed before any subsequent instructions are executed, particularly useful for ensuring memory consistency.

dcache_enable()

void dcache_enable

(

void

)

Enable the data cache.

This function enables the data cache by writing to the machine cache control register.

flush_dcache_all()

void flush_dcache_all

(

)

Flushes the entire data cache.

This function flushes all data cache lines, ensuring that any modified or "dirty" cache lines are written back to the main memory. It ensures that the data in the cache is coherent with the memory.

flush_dcache_range()

void flush_dcache_range	(	uint64_t	start,
		uint64_t	end
	)

Flush a range of the data cache.

This function flushes the data cache for a specified range, ensuring that any dirty cache lines are written back to memory.

Parameters

start	The starting address of the range to flush.
end	The ending address of the range to flush.

get_mem_region_attr()

static uint32_t get_mem_region_attr ( uint32_t  region_index )

inlinestatic

get_mem_region_end_addr()

static uint32_t get_mem_region_end_addr ( uint32_t  region_index )

inlinestatic

get_mem_region_len()

static uint32_t get_mem_region_len ( uint32_t  region_index )

inlinestatic

get_mem_region_start_addr()

static uint32_t get_mem_region_start_addr ( uint32_t  region_index )

inlinestatic

get_mem_region_upper_limit()

static uint32_t get_mem_region_upper_limit ( uint32_t  region_index )

inlinestatic

icache_enable()

void icache_enable

(

void

)

Enable the instruction cache.

This function enables the instruction cache by setting the appropriate control bits in the machine cache control register.

invalidate_dcache_all()

void invalidate_dcache_all

(

)

Invalidates the entire data cache.

This function invalidates all data cache lines, ensuring that no stale or outdated data remains in the cache. This operation discards the cache contents and ensures that the next access will fetch fresh data from memory.

invalidate_dcache_range()

void invalidate_dcache_range	(	uint64_t	start,
		uint64_t	end
	)

Invalidate a range of the data cache.

This function invalidates the data cache for a specified range, ensuring that no stale data remains in the cache for the given addresses.

Parameters

start	The starting address of the range to invalidate.
end	The ending address of the range to invalidate.

mmu_enable()

void mmu_enable

(

void

)

Enable the SV39 MMU with cache initialization.

This function initializes the cache and enables both data and instruction caches for the SV39 memory management unit.

set_mem_region_attr()

static void set_mem_region_attr ( uint32_t  region_index, uint32_t  mem_attr  )

inlinestatic

set_mem_region_upper_limit()

static void set_mem_region_upper_limit ( uint32_t  region_index, uint32_t  upper_limit_addr  )

inlinestatic

setup_mem_region()

static void setup_mem_region ( uint32_t  region_index, uint32_t  start_addr, uint32_t  len, uint32_t  mem_attr  )

inlinestatic

sysmap_add_mem_region()

int sysmap_add_mem_region	(	uint32_t	start_addr,
		uint32_t	len,
		uint32_t	mem_attr
	)

Adds a memory region to the system memory map.

This function registers a new memory region with the given starting address, length, and memory attributes to the system's memory map. The region can be used for various purposes, such as memory allocation or defining regions for specific hardware access.

Parameters

start_addr	Starting address of the memory region. This address should be aligned to the appropriate boundary for the memory type.
len	Length of the memory region in bytes. The length should be a positive value and should not exceed the system's available memory range.
mem_attr	Memory attributes for the region (e.g., read/write, cacheable, non-cacheable, etc.). The exact attributes depend on the platform and memory type.

Returns

0 if the memory region was successfully added. A non-zero value if the addition failed (e.g., invalid address or conflicting region).

Note

This function assumes that the provided address and length are valid. Any conflicts with existing memory regions will result in failure.

sysmap_dump_region_info()

void sysmap_dump_region_info

(

void

)

sysmap_region_get_mem_attr()

static uint32_t sysmap_region_get_mem_attr ( uint32_t  region_index )

inlinestatic

sysmap_region_get_upper_limit()

static uint32_t sysmap_region_get_upper_limit ( uint32_t  region_index )

inlinestatic

sysmap_region_set_mem_attr()

static void sysmap_region_set_mem_attr ( uint32_t  region_index, uint32_t  mem_attr  )

static

sysmap_region_set_upper_limit()

static void sysmap_region_set_upper_limit ( uint32_t  region_index, uint32_t  upper_limit_addr  )

static

sysmap_setup_mem_region()

static void sysmap_setup_mem_region ( uint32_t  region_index, uint32_t  upper_limit_addr, uint32_t  mem_attr  )

inlinestatic

Variable Documentation

region_index

uint32_t region_index = 0

static
