sys-sdhci.h File Reference

#include <io.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <reg/reg-smhc.h>
#include <sys-gpio.h>
#include <log.h>
#include "sys-mmc.h"

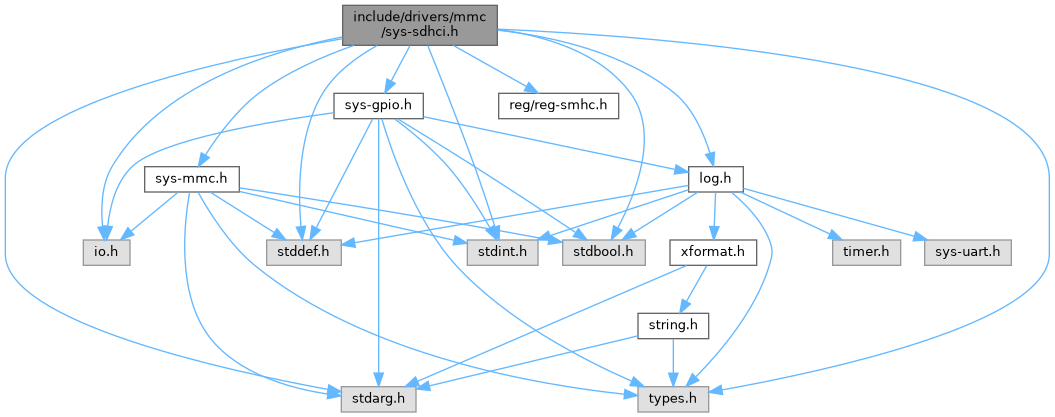

Include dependency graph for sys-sdhci.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sunxi_sdhci_desc
struct	sunxi_sdhci_host
struct	sunxi_sdhci_pinctrl
struct	sunxi_sdhci_timing
struct	sunxi_sdhci_clk
struct	sunxi_sdhci

Macros
#define	SMHC_DES_NUM_SHIFT   12 /* smhc2!! */
#define	SMHC_DES_BUFFER_MAX_LEN   (1 << SMHC_DES_NUM_SHIFT)
#define	MMC_REG_FIFO_OS   (0x200)
#define	SMHC_TIMEOUT   0xfffff
#define	SMHC_DMA_TIMEOUT   0xffffff
#define	SMHC_WAITBUSY_TIMEOUT   0xfffff
#define	SMHC_DATA_TIMEOUT   0xfffff
#define	SMHC_RESP_TIMEOUT   0xff
#define	SDHCI_DEFAULT_CLK_RST_OFFSET(x)   (16 + x)
#define	SDHCI_DEFAULT_CLK_GATE_OFFSET(x)   (x)
#define	SDHCI_DEFAULT_CLK_FACTOR_M_OFFSET   (0)
#define	SDHCI_DEFAULT_CLK_FACTOR_N_OFFSET   (8)

Typedefs
typedef struct sunxi_sdhci_host	sunxi_sdhci_host_t
typedef struct sunxi_sdhci_pinctrl	sunxi_sdhci_pinctrl_t
typedef struct sunxi_sdhci_timing	sunxi_sdhci_timing_t
typedef struct sunxi_sdhci_clk	sunxi_sdhci_clk_t
typedef struct sunxi_sdhci	sunxi_sdhci_t

Enumerations
enum	{ MMC_CONTROLLER_0 = 0 , MMC_CONTROLLER_1 = 1 , MMC_CONTROLLER_2 = 2 }
enum	sunxi_sdhci_type_t { MMC_TYPE_SD , MMC_TYPE_EMMC }

Functions
struct sunxi_sdhci_desc	__attribute__ ((aligned(8)))
int	sunxi_sdhci_init (sunxi_sdhci_t *sdhci)
	Initialize the SDHC controller.
int	sunxi_sdhci_core_init (sunxi_sdhci_t *sdhci)
	Initialize the core functionality of the SDHC controller.
void	sunxi_sdhci_set_ios (sunxi_sdhci_t *sdhci)
	Set the I/O settings for the SDHC controller.
int	sunxi_sdhci_update_phase (sunxi_sdhci_t *sdhci)
	Update phase for the SDHC controller.
int	sunxi_sdhci_xfer (sunxi_sdhci_t *sdhci, mmc_cmd_t *cmd, mmc_data_t *data)
	Perform a data transfer operation on the SDHC controller.
void	sunxi_sdhci_dump_reg (sunxi_sdhci_t *sdhci)
	Dump the contents of the SDHCI registers.
int	sunxi_sdhci_set_mclk (sunxi_sdhci_t *sdhci, uint32_t clk_hz)
	Set the SDHC controller's clock frequency.
uint32_t	sunxi_sdhci_get_mclk (sunxi_sdhci_t *sdhci)
	Get the current clock frequency of the SDHC controller.

Variables
uint32_t	__pad0__
uint32_t	dic
uint32_t	last_desc
uint32_t	first_desc
uint32_t	des_chain
uint32_t	end_of_ring
uint32_t	err_flag
uint32_t	own
uint32_t	data_buf_sz
uint32_t	data_buf_dummy
uint32_t	buf_addr
uint32_t	next_desc_addr

Macro Definition Documentation

MMC_REG_FIFO_OS

#define MMC_REG_FIFO_OS   (0x200)

SDHCI_DEFAULT_CLK_FACTOR_M_OFFSET

#define SDHCI_DEFAULT_CLK_FACTOR_M_OFFSET   (0)

SDHCI_DEFAULT_CLK_FACTOR_N_OFFSET

#define SDHCI_DEFAULT_CLK_FACTOR_N_OFFSET   (8)

SDHCI_DEFAULT_CLK_GATE_OFFSET

#define SDHCI_DEFAULT_CLK_GATE_OFFSET

(

x

)

(x)

SDHCI_DEFAULT_CLK_RST_OFFSET

#define SDHCI_DEFAULT_CLK_RST_OFFSET

(

x

)

(16 + x)

SMHC_DATA_TIMEOUT

#define SMHC_DATA_TIMEOUT   0xfffff

SMHC_DES_BUFFER_MAX_LEN

#define SMHC_DES_BUFFER_MAX_LEN   (1 << SMHC_DES_NUM_SHIFT)

SMHC_DES_NUM_SHIFT

#define SMHC_DES_NUM_SHIFT   12 /* smhc2!! */

SMHC_DMA_TIMEOUT

#define SMHC_DMA_TIMEOUT   0xffffff

SMHC_RESP_TIMEOUT

#define SMHC_RESP_TIMEOUT   0xff

SMHC_TIMEOUT

#define SMHC_TIMEOUT   0xfffff

SMHC_WAITBUSY_TIMEOUT

#define SMHC_WAITBUSY_TIMEOUT   0xfffff

Typedef Documentation

sunxi_sdhci_clk_t

typedef struct sunxi_sdhci_clk sunxi_sdhci_clk_t

sunxi_sdhci_host_t

typedef struct sunxi_sdhci_host sunxi_sdhci_host_t

sunxi_sdhci_pinctrl_t

typedef struct sunxi_sdhci_pinctrl sunxi_sdhci_pinctrl_t

sunxi_sdhci_t

typedef struct sunxi_sdhci sunxi_sdhci_t

sunxi_sdhci_timing_t

typedef struct sunxi_sdhci_timing sunxi_sdhci_timing_t

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
MMC_CONTROLLER_0
MMC_CONTROLLER_1
MMC_CONTROLLER_2

sunxi_sdhci_type_t

enum sunxi_sdhci_type_t

Enumerator
MMC_TYPE_SD
MMC_TYPE_EMMC

Function Documentation

__attribute__()

struct sunxi_sdhci_desc __attribute__

(

(aligned(8))

)

sunxi_sdhci_core_init()

int sunxi_sdhci_core_init

(

sunxi_sdhci_t *

sdhci

)

Initialize the core functionality of the SDHC controller.

This function initializes the core functionality of the SDHC controller, including resetting the controller, setting timeout values, configuring thresholds and debug parameters, and releasing the eMMC reset signal.

Parameters

sdhci

Pointer to the SDHC controller structure.

Returns

Returns 0 on success, -1 on failure.

sunxi_sdhci_dump_reg()

void sunxi_sdhci_dump_reg

(

sunxi_sdhci_t *

sdhci

)

Dump the contents of the SDHCI registers.

This function dumps the contents of the SDHCI registers for a given SD card host controller.

Parameters

sdhci

A pointer to the structure representing the SD card host controller.

Returns

void

Note

This function is useful for debugging and analyzing the state of the SD card controller.

sunxi_sdhci_get_mclk()

uint32_t sunxi_sdhci_get_mclk ( sunxi_sdhci_t *  sdhci )

extern

Get the current clock frequency of the SDHC controller.

This function retrieves the current clock frequency of the specified SDHC controller.

Parameters

sdhci

Pointer to the SDHC controller structure.

Returns

Current clock frequency in Hertz.

sunxi_sdhci_init()

int sunxi_sdhci_init

(

sunxi_sdhci_t *

sdhci

)

Initialize the SDHC controller.

This function initializes the SDHC controller by configuring its parameters, capabilities, and features based on the provided SDHC structure. It sets up the controller's timing mode, supported voltages, host capabilities, clock frequency limits, and register addresses. Additionally, it configures pin settings and enables clocks for the SDHC controller.

Parameters

sdhci

Pointer to the SDHC structure.

Returns

Returns 0 on success, -1 on failure.

sunxi_sdhci_set_ios()

void sunxi_sdhci_set_ios

(

sunxi_sdhci_t *

sdhci

)

Set the I/O settings for the SDHC controller.

This function configures the I/O settings for the SDHC controller based on the provided MMC clock, bus width, and speed mode.

Parameters

sdhci

Pointer to the SDHC controller structure.

Returns

void

sunxi_sdhci_set_mclk()

int sunxi_sdhci_set_mclk ( sunxi_sdhci_t *  sdhci, uint32_t  clk_hz  )

extern

Set the SDHC controller's clock frequency.

This function sets the clock frequency for the specified SDHC controller.

Parameters

sdhci	Pointer to the SDHC controller structure.
clk_hz	Desired clock frequency in Hertz.

Returns

Returns 0 on success, -1 on failure.

sunxi_sdhci_update_phase()

int sunxi_sdhci_update_phase

(

sunxi_sdhci_t *

sdhci

)

Update phase for the SDHC controller.

This function updates the phase for the specified SDHC controller.

Parameters

sdhci

Pointer to the SDHC controller structure.

Returns

Returns 0 on success.

sunxi_sdhci_xfer()

int sunxi_sdhci_xfer	(	sunxi_sdhci_t *	sdhci,
		mmc_cmd_t *	cmd,
		mmc_data_t *	data
	)

Perform a data transfer operation on the SDHC controller.

This function performs a data transfer operation on the SDHC controller, including sending a command and managing data transfer if present. It also handles error conditions such as fatal errors and card busy status.

Parameters

sdhci	Pointer to the SDHC controller structure.
cmd	Pointer to the MMC command structure.
data	Pointer to the MMC data structure.

Returns

Returns 0 on success, -1 on failure.

Variable Documentation

__pad0__

uint32_t __pad0__

buf_addr

uint32_t buf_addr

data_buf_dummy

uint32_t data_buf_dummy

data_buf_sz

uint32_t data_buf_sz

des_chain

uint32_t des_chain

dic

uint32_t dic

end_of_ring

uint32_t end_of_ring

err_flag

uint32_t err_flag

first_desc

uint32_t first_desc

last_desc

uint32_t last_desc

next_desc_addr

uint32_t next_desc_addr

own

uint32_t own
