board.c File Reference

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <types.h>
#include <log.h>
#include <common.h>
#include <reg-ncat.h>
#include <sys-clk.h>
#include <mmu.h>
#include <sys-dram.h>
#include <sys-gpio.h>
#include <sys-sdcard.h>
#include <sys-spi.h>
#include <sys-uart.h>

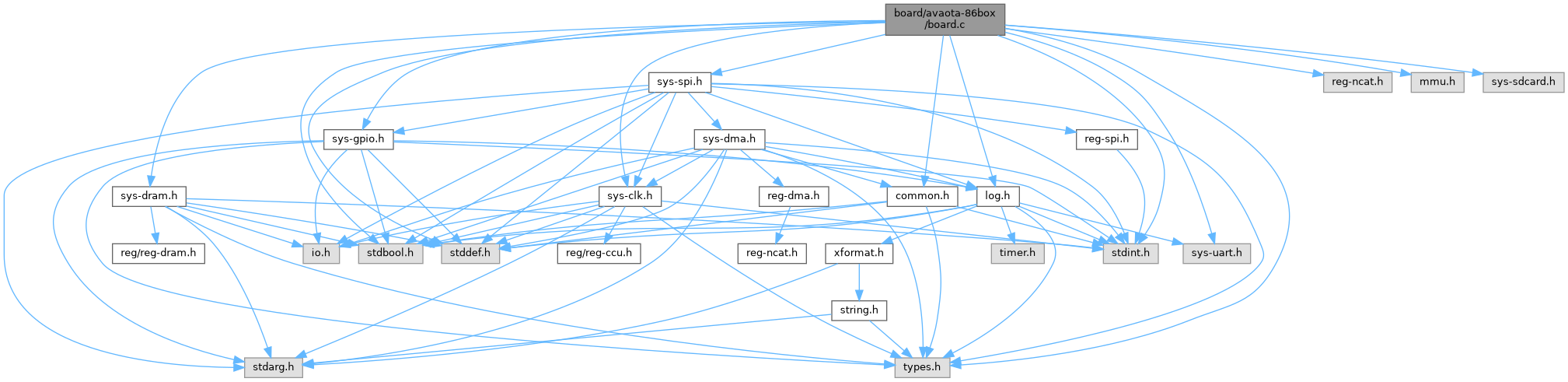

Include dependency graph for board.c:

Functions
void	clean_syterkit_data (void)

Variables
sunxi_serial_t	uart_dbg
sunxi_dma_t	sunxi_dma
sunxi_spi_t	sunxi_spi0
sdhci_t	sdhci0
sdhci_t	sdhci2
dram_para_t	dram_para

Function Documentation

clean_syterkit_data()

void clean_syterkit_data

(

void

)

Variable Documentation

dram_para

dram_para_t dram_para

Initial value:

= {
        .dram_clk = 720,
        .dram_type = 3,
        .dram_zq = 0x07b7bfb,
        .dram_odt_en = 0x01,
        .dram_para1 = 0x000010d2,
        .dram_para2 = 0,
        .dram_mr0 = 0x1c70,
        .dram_mr1 = 0x42,
        .dram_mr2 = 0x18,
        .dram_mr3 = 0,
        .dram_tpr0 = 0x004A2195,
        .dram_tpr1 = 0x02423190,
        .dram_tpr2 = 0x0008b061,
        .dram_tpr3 = 0xB4787896,
        .dram_tpr4 = 0,
        .dram_tpr5 = 0x48484848,
        .dram_tpr6 = 0x48,
        .dram_tpr7 = 0x1620121e,
        .dram_tpr8 = 0,
        .dram_tpr9 = 0,
        .dram_tpr10 = 0,
        .dram_tpr11 = 0x00a70000,
        .dram_tpr12 = 0x00100003,
        .dram_tpr13 = 0x3405C100,
}

sdhci0

sdhci_t sdhci0

Initial value:

= {
        .name = "sdhci0",
        .id = 0,
        .reg = (sdhci_reg_t *) 0x04020000,
        .voltage = MMC_VDD_27_36,
        .width = MMC_BUS_WIDTH_4,
        .clock = MMC_CLK_50M,
        .removable = 0,
        .isspi = FALSE,
        .skew_auto_mode = TRUE,
        .sdhci_pll = CCU_MMC_CTRL_PLL_PERIPH1X,
        .gpio_clk = {GPIO_PIN(GPIO_PORTF, 2), GPIO_PERIPH_MUX2},
        .gpio_cmd = {GPIO_PIN(GPIO_PORTF, 3), GPIO_PERIPH_MUX2},
        .gpio_d0 = {GPIO_PIN(GPIO_PORTF, 1), GPIO_PERIPH_MUX2},
        .gpio_d1 = {GPIO_PIN(GPIO_PORTF, 0), GPIO_PERIPH_MUX2},
        .gpio_d2 = {GPIO_PIN(GPIO_PORTF, 5), GPIO_PERIPH_MUX2},
        .gpio_d3 = {GPIO_PIN(GPIO_PORTF, 4), GPIO_PERIPH_MUX2},
}

sdhci2

sdhci_t sdhci2

Initial value:

= {
        .name = "sdhci2",
        .id = 0,
        .reg = (sdhci_reg_t *) 0x04022000,
        .voltage = MMC_VDD_27_36,
        .width = MMC_BUS_WIDTH_4,
        .clock = MMC_CLK_50M,
        .removable = 0,
        .isspi = FALSE,
        .skew_auto_mode = TRUE,
        .sdhci_pll = CCU_MMC_CTRL_PLL_PERIPH1X,
        .gpio_clk = {GPIO_PIN(GPIO_PORTC, 2), GPIO_PERIPH_MUX3},
        .gpio_cmd = {GPIO_PIN(GPIO_PORTC, 3), GPIO_PERIPH_MUX3},
        .gpio_d0 = {GPIO_PIN(GPIO_PORTC, 6), GPIO_PERIPH_MUX3},
        .gpio_d1 = {GPIO_PIN(GPIO_PORTC, 5), GPIO_PERIPH_MUX3},
        .gpio_d2 = {GPIO_PIN(GPIO_PORTC, 4), GPIO_PERIPH_MUX3},
        .gpio_d3 = {GPIO_PIN(GPIO_PORTC, 7), GPIO_PERIPH_MUX3},
}

sunxi_dma

sunxi_dma_t sunxi_dma

Initial value:

= {
        .dma_reg_base = SUNXI_DMA_BASE,
        .bus_clk =
                {
                        .gate_reg_base = CCU_BASE + CCU_MBUS_MAT_CLK_GATING_REG,
                        .gate_reg_offset = DMA_DEFAULT_CLK_GATE_OFFSET,
                },
        .dma_clk =
                {
                        .rst_reg_base = CCU_BASE + CCU_DMA_BGR_REG,
                        .rst_reg_offset = DMA_DEFAULT_CLK_RST_OFFSET,
                        .gate_reg_base = CCU_BASE + CCU_DMA_BGR_REG,
                        .gate_reg_offset = DMA_DEFAULT_CLK_GATE_OFFSET,
                },
}

sunxi_spi0

sunxi_spi_t sunxi_spi0

Initial value:

= {
        .base = SUNXI_SPI0_BASE,
        .id = 0,
        .clk_rate = 75 * 1000 * 1000,
        .gpio =
                {
                        .gpio_cs = {GPIO_PIN(GPIO_PORTC, 1), GPIO_PERIPH_MUX4},
                        .gpio_sck = {GPIO_PIN(GPIO_PORTC, 0), GPIO_PERIPH_MUX4},
                        .gpio_mosi = {GPIO_PIN(GPIO_PORTC, 2), GPIO_PERIPH_MUX4},
                        .gpio_miso = {GPIO_PIN(GPIO_PORTC, 3), GPIO_PERIPH_MUX4},
                        .gpio_wp = {GPIO_PIN(GPIO_PORTC, 4), GPIO_PERIPH_MUX4},
                        .gpio_hold = {GPIO_PIN(GPIO_PORTC, 5), GPIO_PERIPH_MUX4},
                },
        .spi_clk =
                {
                        .spi_clock_cfg_base = CCU_BASE + CCU_SPI0_CLK_REG,
                        .spi_clock_factor_n_offset = SPI_CLK_SEL_FACTOR_N_OFF,
                        .spi_clock_source = SPI_CLK_SEL_PERIPH_300M,
                },
        .parent_clk_reg =
                {
                        .rst_reg_base = CCU_BASE + CCU_SPI_BGR_REG,
                        .rst_reg_offset = SPI_DEFAULT_CLK_RST_OFFSET(0),
                        .gate_reg_base = CCU_BASE + CCU_SPI_BGR_REG,
                        .gate_reg_offset = SPI_DEFAULT_CLK_GATE_OFFSET(0),
                        .parent_clk = 300000000,
                },
        .dma_handle = &sunxi_dma,
}

uart_dbg

sunxi_serial_t uart_dbg

Initial value:

= {
        .base = SUNXI_UART0_BASE,
        .id = 0,
        .baud_rate = UART_BAUDRATE_115200,
        .dlen = UART_DLEN_8,
        .stop = UART_STOP_BIT_0,
        .parity = UART_PARITY_NO,
        .gpio_pin =
                {
                        .gpio_tx = {GPIO_PIN(GPIO_PORTB, 8), GPIO_PERIPH_MUX6},
                        .gpio_rx = {GPIO_PIN(GPIO_PORTB, 9), GPIO_PERIPH_MUX6},
                },
        .uart_clk =
                {
                        .gate_reg_base = CCU_BASE + CCU_UART_BGR_REG,
                        .gate_reg_offset = SERIAL_DEFAULT_CLK_GATE_OFFSET(0),
                        .rst_reg_base = CCU_BASE + CCU_UART_BGR_REG,
                        .rst_reg_offset = SERIAL_DEFAULT_CLK_RST_OFFSET(0),
                        .parent_clk = SERIAL_DEFAULT_PARENT_CLK,
                },
}
